Divergent Plate Boundary—Continental Rift

On This Page Navigation

NPS Sites in Continental Rift Zones

The high elevations (brown shading) and rugged topography of the Basin and Range Province and Rio Grande Rift, which are actively forming can be seen in the shaded relief map, below. The Keweenwan Rift has sedimentary and volcanic rock layers similar to those found in the active rifts, but its topography is subdued because it formed over a billion years ago.

map of us with parks in rift zones marked and labeled
Shaded relief map of United States, highlighting National Park Service lands in modern and ancient Continental Rift Zones. Letters are abbreviations for park names revealed by clicking on the lists below.

Modified from “Parks and Plates: The Geology of our National Parks, Monuments and Seashores,” by Robert J. Lillie, New York, W. W. Norton and Company, 298 pp., 2005, www.amazon.com/dp/0134905172.


Continental Rifts—Active

Continental Rifts—Ancient

Introduction

Like other continents, North America has thick crust, compared to the thin crust beneath the adjacent Atlantic and Pacific oceans. In the western part of the continent, divergent plate boundary forces are beginning to rip the continent apart, forming the Basin and Range Province and its adjacent eastern arm, known as the Rio Grande Rift. National Park Service sites in this region showcase block-fault mountains and volcanic features forming as the thick crust stretches and cracks apart, releasing magma from below. The long valleys (“basins”) separating the mountains (“ranges”) are filled with river and lake deposits and lava flows. Similar, but much older, layers are found in NPS sites in the Keweenawan Rift of the Lake Superior region, where divergent plate boundary forces tried, unsuccessfully, to rip the North American continent apart 1.1 billion years ago.


Continental Rift Development

block diagram of earth's outer layers

Plate with Thick Continental Crust

Continental crust is thick and buoyant, and therefore sticks up above sea level.

Plate Rips Apart

  • As the plate stretches and thins, the underlying asthenosphere flows upward and expands like a hot-air balloon, lifting the region to higher elevations.
  • The continental crust breaks along faults, forming long mountain ranges separated by rift valleys.
diagram of continental rift showing earth's layers

Above illustrations modified from “Beauty from the Beast: Plate Tectonics and the Landscapes of the Pacific Northwest,” by Robert J. Lillie, Wells Creek Publishers, 92 pp., 2015, www.amazon.com/dp/1512211893.

Death Valley National Park, California and Nevada

desert basin with mountains in background
Badwater Basin in Death Valley National Park is the lowest point in North America, 282 feet below sea level. The valley and surrounding mountain ranges are on the western edge of the Basin and Range Province.

NPS photo.

Valles Caldera National Preserve, New Mexico

hikers on hill slope with valley and hills in background
The explosive volcanic activity that formed the giant crater (“caldera”) is due to silica-rich (granitic) magma formed as hot asthenosphere rises and melts crustal rocks along the Rio Grande Rift.

NPS photo.

Isle Royale National Park, Michigan

rocky shoreline and open water with 2 kayaks in view
The dark-colored lava flows formed over a billion years ago in the Keweenawan Rift, as the ancient North American continent tried to rip apart and low-silica (basaltic) magma poured out on the surface.

NPS photo.


Active Continental Rifting in the Western United States

Where tectonic plates move away from one another the lithosphere thins. The underlying asthenosphere rises and expands like a hot-air balloon, elevating a broad region. If the plate is capped by thick continental crust, the resulting continental rift zone rises high above sea level. The Basin and Range Province is thus a high-elevation region that includes all of Nevada and portions of Wyoming, Utah, California, and Arizona, and extends into southern Oregon, Idaho, and Montana. It is similar to the East African Rift, where volcanic materials and sedimentary layers deposited by rivers and lakes partially fill rift valleys. Prominent planar surfaces (fault escarpments) along range fronts are evidence that the region continues to rip apart—erosion would smooth them out if the fault movement stopped. The Rio Grande Rift is an arm of the Basin and Range Province extending across westernmost Texas, New Mexico, and southern Colorado. Earthquakes, fault-block mountains, and volcanism at Guadalupe Mountains National Park and Bandelier and White Sands national monuments are consequences of the ongoing continental rifting.


Basin & Range Province and Rio Grande Rift

map of southwest u.s. showing basin and range province and san andreas fault
The Basin and Range Province and Rio Grande Rift have National Park Service sites that showcase the landscape of an active continental rift zone in the western United States. Letters are the abbreviations for the 16 Basin and Range and 7 Rio Grande Rift parks listed above.

Modified from “Parks and Plates: The Geology of our National Parks, Monuments and Seashores,” by Robert J. Lillie, New York, W. W. Norton and Company, 298 pp., 2005, www.amazon.com/dp/0134905172.

Topography of an Active Continental Rift Zone

shaded, raised relief map of southwest U.S.
The Basin and Range Province and Rio Grande Rift have NPS sites that showcase the landscape of an active continental rift zone in the western United States. NHS = National Historical Site; NM = National Monument; NP = National Park; NPres = National Preserve; NRA = National Recreation Area; NRes = National Reserve.

Modified from “Parks and Plates: The Geology of our National Parks, Monuments and Seashores,” by Robert J. Lillie, New York, W. W. Norton and Company, 298 pp., 2005, www.amazon.com/dp/0134905172.

Landscapes and Geological Processes at a Continental Rift Zone

Lava Beds National Monument, California

Tule Lake basin is partially filled with sediments and lava flows.

arid landscape with hills, scarp, and basin arid landscape with hills, scarp, and basin features labeled
Lava Beds landscape. Photo by Robert J. Lillie.
Feature labels. (Click on arrows and slide left and right to see labels.)



Grand Teton National Park, Wyoming

The east side of the Teton Range is a steep fault escarpment rising from the adjacent basin (Jackson Hole).

river with mountain range in background same photo with snake river and teton range labeled
Grand Teton Range. NPS photo.
Feature labels. (Click on arrows and slide left and right to see labels.)



Continental Rift Block Diagram

  • Basin and Range topography develops over a few million years as fault lines move gradually or more abruptly during tens of thousands of earthquakes.
  • Lakes pond against active fault escarpments where one side of a rift valley moves downward faster than the other.
block diagram of earth's surface layers at continental rift zone
National Park Service sites in continental rift zones reveal long mountain ranges separated by deep valleys (basins) that are partially filled with sedimentary and volcanic material. Earthquakes (white stars) occur when the fault lines separating the basins and ranges suddenly let go.

Modified from “Beauty from the Beast: Plate Tectonics and the Landscapes of the Pacific Northwest,” by Robert J. Lillie, Wells Creek Publishers, 92 pp., 2015, www.amazon.com/dp/1512211893.


The topography of the Basin and Range Province and Rio Grande Rift reveals the full range of characteristics of a continental rift zone. First, much of the region—particularly the northern portion—is well above sea level. There the whole landscape is moving upward, with the ranges rising a little faster than the adjacent basins. For example, the floor of a basin in Wyoming, Jackson Hole, is 6,000 feet (1,830 meters) above sea level, while the adjacent Teton Range rises to over 13,000 feet (4,000 meters). But in the southern part of the province, where rifting is more advanced, elevations are generally lower—much of the floor of Death Valley in eastern California is below sea level!

Layers of sand, mud and gravel deposited by rivers and lakes, along with lava flows and other volcanic materials, fill rift valleys as they form. But sometimes the valley floors move downward much faster than these layers can fill them. Thus a second characteristic of continental rifts is that their valleys contain most of the deepest lakes in the world. These include the world’s deepest, Lake Baikal in Siberia (5,387 feet; 1,642 meters deep) and the 2nd and 4th deepest, Lake Tanganyika (4,323 feet; 1,318 meters) and Lake Malawi (2,316 feet; 706 meters), in the East African Rift. The Basin and Range Province has the world’s 8th deepest lake, Lake Tahoe on the California/Nevada border (1,645 feet; 501 meters). But what if there is not enough water available to fill a rift valley? The lowest point on Earth, the Dead Sea, is in a rift valley in the very dry Middle East. Similarly, the Mojave Desert of Southern California is so hot and dry that water evaporates before it can accumulate in Death Valley, the lowest point in North America (272 feet below sea level; -83 meters). During the waning stages of the latest ice age, between 20,000 and 10,000 years ago, the Basin and Range Province was much cooler and wetter than it is today. Basins thus held much more water than they do today. For example, Death Valley contained Lake Manly, some 80 miles long and 600 feet (180 meters) deep. Such lakes were important to indigenous Americans. Archaeological sites along ancient shorelines—today more than 300 feet (90 meters) above the levels of modern “pluvial” lakes—reveal much about these earlier cultures.


Fault-Block Mountain Topography at NPS Sites in the Basin and Range Province

Continental rifting causes valleys floors to drop down along fault lines in the Basin and Range Province. Snake Valley, Tucson Basin and Death Valley are the basins, while the Snake Range, Rincon Mountains, Tucson Mountains and Panamint Mountains are the adjacent ranges.

Great Basin National Park, Nevada
rocky basin with mountains in background rocky basin with mountains in background features labeled
Snake Valley (basin) and Snake Range. Photo by Robert J. Lillie.
Feature labels. (Click on arrows and slide left and right to see labels.)

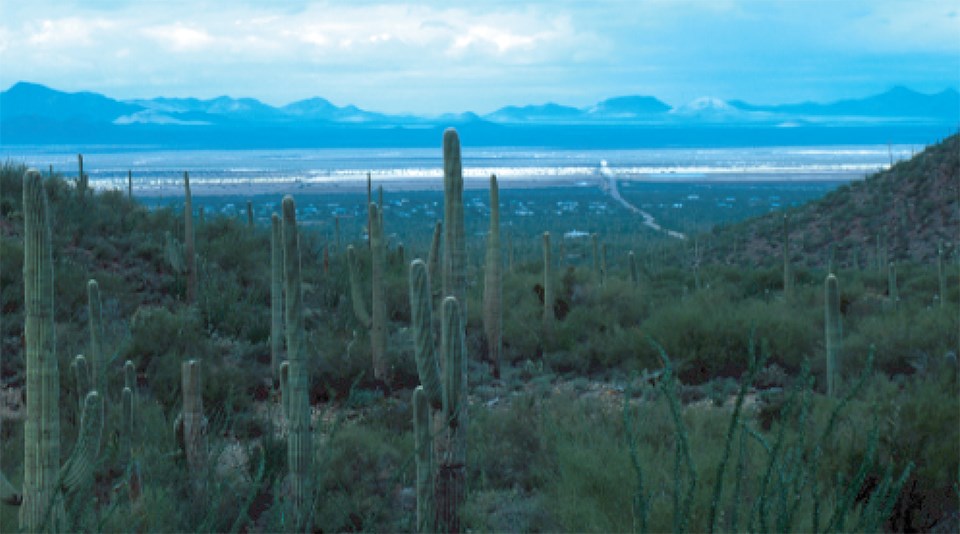

Saguaro National Park, Arizona
view of desert basin with cactus in foreground view of desert basin with cactus in foreground and features labeled
Tuscon Basin lies between the Rincon Mountains and Tucson Mountains (ranges). NPS photo.
Feature labels. (Click on arrows and slide left and right to see labels.)



Death Valley National Park, California
water in desert basin with mountains in background water in desert basin with mountains in background and features labeled
Death Valley (basin) and Panamint Mountains (range). NPS photo.
Feature labels. (Click on arrows and slide left and right to see labels.)



Earthquakes and Volcanic Activity

The same continental rifting processes that form the high-elevation valleys and mountain ranges of the Basin and Range Province and Rio Grande Rift also result in earthquakes and volcanic activity. As the lithosphere pulls apart and thins, the underlying, hot asthenosphere rises and expands like a hot-air balloon, elevating the entire region. The drop in pressure on the shallow asthenosphere makes it start to melt. Some of the liquid rock (magma) makes it to the surface and forms lava flows, shield volcanoes, cinder cones, and other volcanic features.

Continental Rift: Topography, Earthquakes, and Volcanism

  • The basin and range topography develops over a few million years as fault lines move gradually, or more abruptly during tens of thousands of earthquakes.
  • The colder upper crust cracks and breaks along faults (like peanut brittle), causing earthquakes and forming long mountains (ranges) separated by valleys (basins).
  • Magma reaching the surface erupts from volcanoes and fissures as lava flows and other volcanic materials, mingling with river and lake sediments to fill rift basins.
diagram of continental rift showing basin and range topography and earth's layers
Ripping a tectonic plate apart elevates the region and causes earthquakes, volcanic eruptions and the formation of long mountain ranges separated by broad valleys (basins).

Modified from Beauty from the Beast: Plate Tectonics and the Landscapes of the Pacific Northwest,” by Robert J. Lillie, Wells Creek Publishers, 92 pp., 2015, www.amazon.com/dp/1512211893.


Only shallow earthquakes occur beneath the Basin and Range Province and Rio Grande Rift. The lower crust and underlying asthenosphere are so hot that they stretch in a ductile fashion (like silly putty), without producing earthquakes. But the upper part of the crust is relatively cold and breaks in a brittle fashion (like peanut brittle), making earthquakes. Prolonged stretching and thousands of earthquakes over tens of millions of years have thus resulted in the prominent “basin and range” topography.

Lower pressure on the hot asthenosphere also has another important effect. At its normal depths beneath the lithosphere, this part of Earth’s mantle is solid because it is under so much pressure. But if it rises fast enough it remains hot. Under the lowered pressure it begins to melt (much like superheated water flashes to steam when the lid is suddenly removed from a pressure cooker). Molten rock (magma) thus melts off the decompressed mantle beneath the Basin and Range Province and Rio Grande Rift.

A wide variety of volcanoes and volcanic products form in continental rift zones. Continental crust is thick and rich in silica. Magma originating from the mantle must initially melt its way through that crust in order to reach the surface. The magma becomes enriched in silica because high-silica minerals tend to melt first. Some of the lava that initially pours out at continental rift zones is thus thick and pasty, cooling to light-colored rocks (rhyolite and dacite), and steep-sided lava domes and composite volcanoes. As rifting progresses the crust thins, becomes depleted in silica, and has better-developed conduits, so that magma that originally melted from the mantle often reaches the surface. The bulk of the eruptions at continental rift zones thus produce fluid, dark-colored lava (basalt) that spreads out as low-profile shield volcanoes, or erupts in fountains forming cinder cones.


Volcanic Features at NPS Sites

Schonchin Butte—Lava Beds National Monument, California

arid landscape with cinder cone
The top of Sconchin Butte, a cinder cone, is a popular hiking destination along the main road through Lava Beds National Monument.

Photo by Robert J. Lillie

Broken Top Volcano—Craters of the Moon National Monument, Idaho

volcanic landscape with cinder cone
Craters of the Moon National Monument lies along the Columbia Plateau–Yellowstone hotspot track, but recent volcanism is also due to Basin and Range continental rifting.

Photo by Robert J. Lillie.

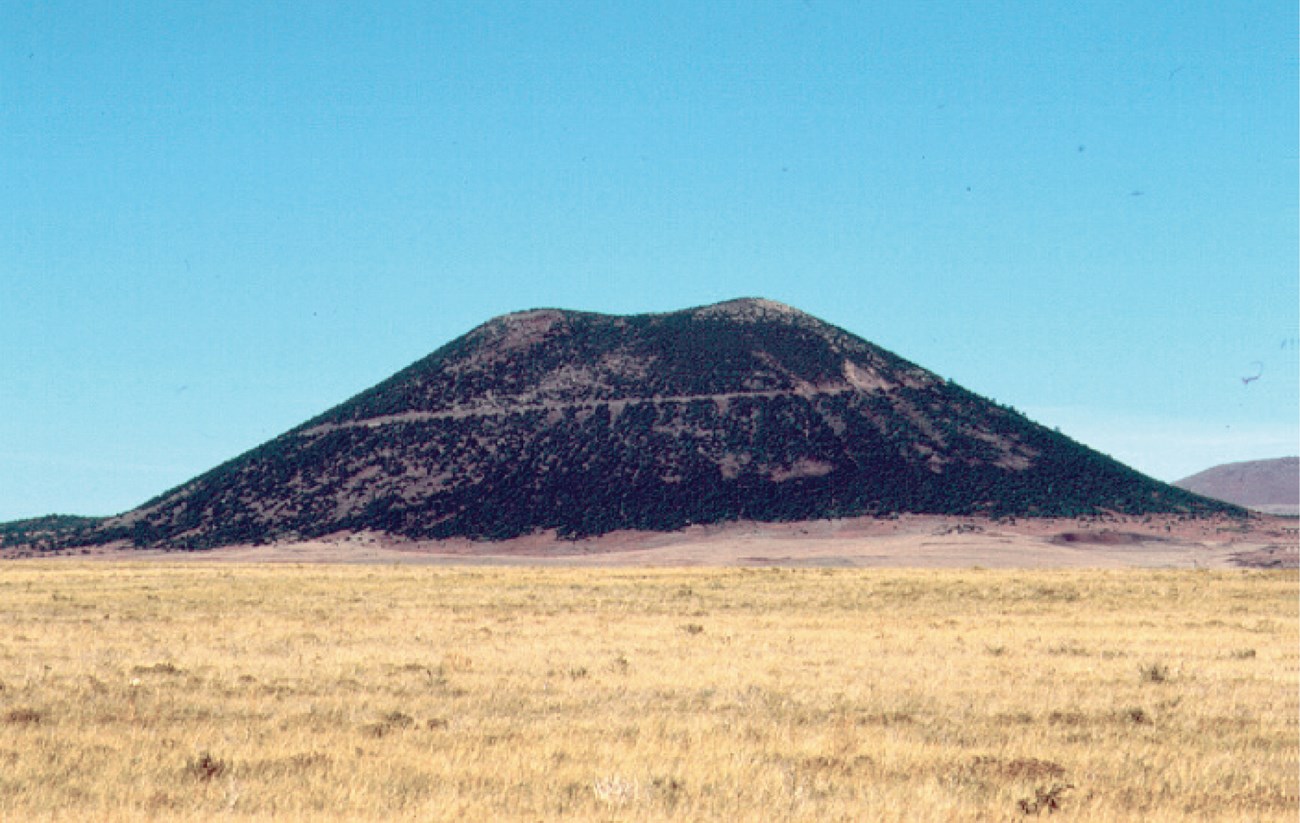

Capulin Volcano—Capulin Volcano National Monument, New Mexico

arid landscape with cinder cone
Capulin Volcano forms from volcanic activity associated with the nearby Rio Grande Rift. A road takes you to a spectacular view of the crater at the top of the cinder cone.

Photo by Robert J. Lillie.

Sunset Crater Volcano—Sunset Crater Volcano National Monument, Arizona

forest and rangeland with cinder cone
Another prominent cinder cone, Sunset Crater Volcano, forms where volcanic activity associated with the Basin and Range Province is encroaching on the western edge of the Colorado Plateau.

Photo by Robert J. Lillie.


As with most of the natural world, many of Earth’s features do not fit neatly into one simple explanation. For example, the western half of Lassen Volcanic National Park in northern California has composite volcanoes and high-silica lava domes characteristic of the Cascadia Subduction Zone, while cinder cones and basalt lava flows in the eastern part of the park are more diagnostic of continental rifting in the Basin and Range Province. And while Craters of the Moon National Monument in southern Idaho lies along the Columbia Plateau–Yellowstone hotspot track, recent basalt fissure eruptions and cinder cones are most likely due to Basin and Range continental rifting.

Ancient Keweenawan Rift

About a billion years ago the central part of North America nearly ripped apart along the Keweenawan Rift. The process stopped, but not before the area looked something like the present Basin and Range Province or Rio Grande Rift. Sedimentary and volcanic rocks found in Isle Royale National Park and Keweenaw National Historical Park are products of this ancient continental rifting.


NPS Sites along the Keweenawan Rift

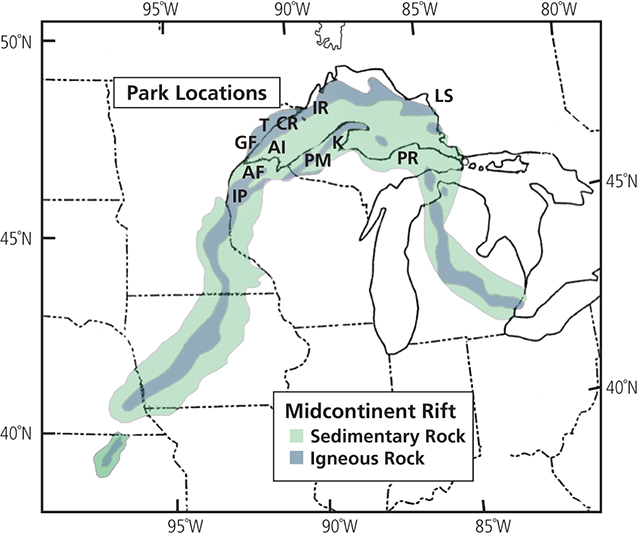

fig 2-9 keweenawan rift map new@10x

Volcanic and sedimentary rocks of the ancient Keweenawan Rift are found in National Park Service sites in the Lake Superior region. Similar rocks (shown in gray) are buried beneath younger sedimentary layers in Michigan’s lower peninsular, and extend southwestward all the way to Kansas. Letters in ovals represnt th 6 Keweenawan Rift parks listed above. Line A-A’ is the line of the geologic cross section shown below. NHP = National Historical Park; NL = National Lakeshore; NM = National Monument; NP = National Park; NSR = National Scenic Riverway.

Modified from “Parks and Plates: The Geology of our National Parks, Monuments and Seashores,” by Robert J. Lillie, New York, W. W. Norton and Company, 298 pp., 2005, www.amazon.com/dp/0134905172

Keweenawan Rift Cross Section

diagram of syncline beneath lake superior
The volcanic and sedimentary rocks of the ancient Keweenawan Rift form a downfold (”syncline”) beneath the Lake Superior region of Michigan’s Upper Peninsula. The rocks are found at the surface in National Park Service sites on Isle Royale and the Keweenaw Peninsula. The previous map shows the line of the cross section (A-A’).

Modified from “Parks and Plates: The Geology of our National Parks, Monuments and Seashores,” by Robert J. Lillie, New York, W. W. Norton and Company, 298 pp., 2005, www.amazon.com/dp/0134905172.

Continental Rift Features at NPS Sites in the Keweenawan Rift

hikers on rock outcrops with forest in background
Basalt lava flow rocks in Isle Royale National Park formed when the Keweenawan Rift attempted to rip the North American continent apart 1.1 billion years ago.

NPS photo.

rock outcrop with grooved surface
Grooves on the basalt lava flow rocks in Keweenaw National Historical Park reveal the north-to-south direction that ice flowed across the region during the last ice age.

Photo by Robert J. Lillie.
