Volcanic Domes

On This Page Navigation

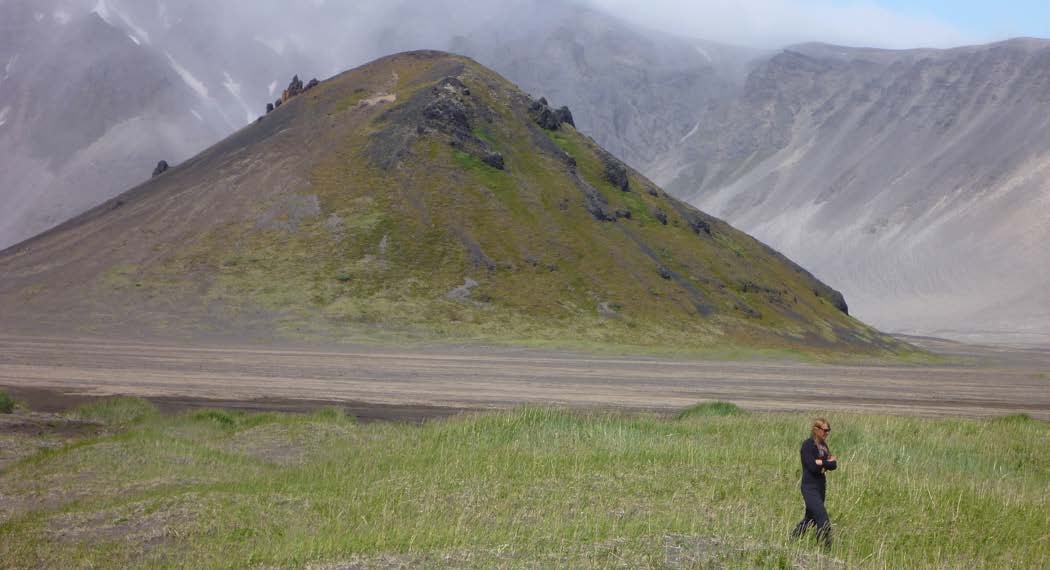

a person walking past a dome-shaped hill with a portion of the volcanic crater rim showing in the distance
Vulcan Dome in Aniakchak National Monument. Vulcan Dome erupted in Aniakchak Crater about 2,300 years ago.

Photograph by Tom Hunt.

Introduction

Domes form from the slow extrusion of highly-viscous silicic lava. These lavas are too thick to spread out into a lava flow. Most domes are small and many do not have a crater.

Some dome-forming eruptions start with highly explosive eruptions that wane into dome-building ones as the gas content in the magma decreases. Other dome-building eruptions begin effusively until the growing dome explodes or collapses to produce pyroclastic flows.

Volcanic domes can form volcanic edifices in their own right such as Lassen Peak in Lassen Volcanic National Park. Domes also occur in clusters. Domes are also frequently extruded in the summit craters of composite volcanoes such as at Redoubt Volcanoes in Lake Clark National Park. Domes may also grow within calderas as part of a post-caldera eruptive phase.

Domes are sometimes called lava domes.

National Park Domes

At least 12 units of the National Park System contain volcanic domes, including:

  • Lassen Volcanic National Park contains multiple lava domes. Lassen Peak is the world’s largest dome with a peak elevation of 10,457 feet (3,187 m). It was emplaced 27,000 years ago. Chaos Crags are a set of six lava domes that grew during eruptions approximately 1,050 years ago.

photo of a volcanic peak with snow cover and trees on its lower slopes
Lassen Peak, a dacitic lava dome. Lassen Volcanic National Park, California.

John St. James flickr photo.

photo of a volcanic peak with trees at the base and a rocky debris field in the foreground
Chaos Crags, a set of six rhyodacite domes, in Lassen Volcanic National Park, California.

John St. James flickr photo.

  • Novarupta Dome in Katmai National Park was emplaced at the end of the Valley of Ten Thousand Smokes eruption in 1912.

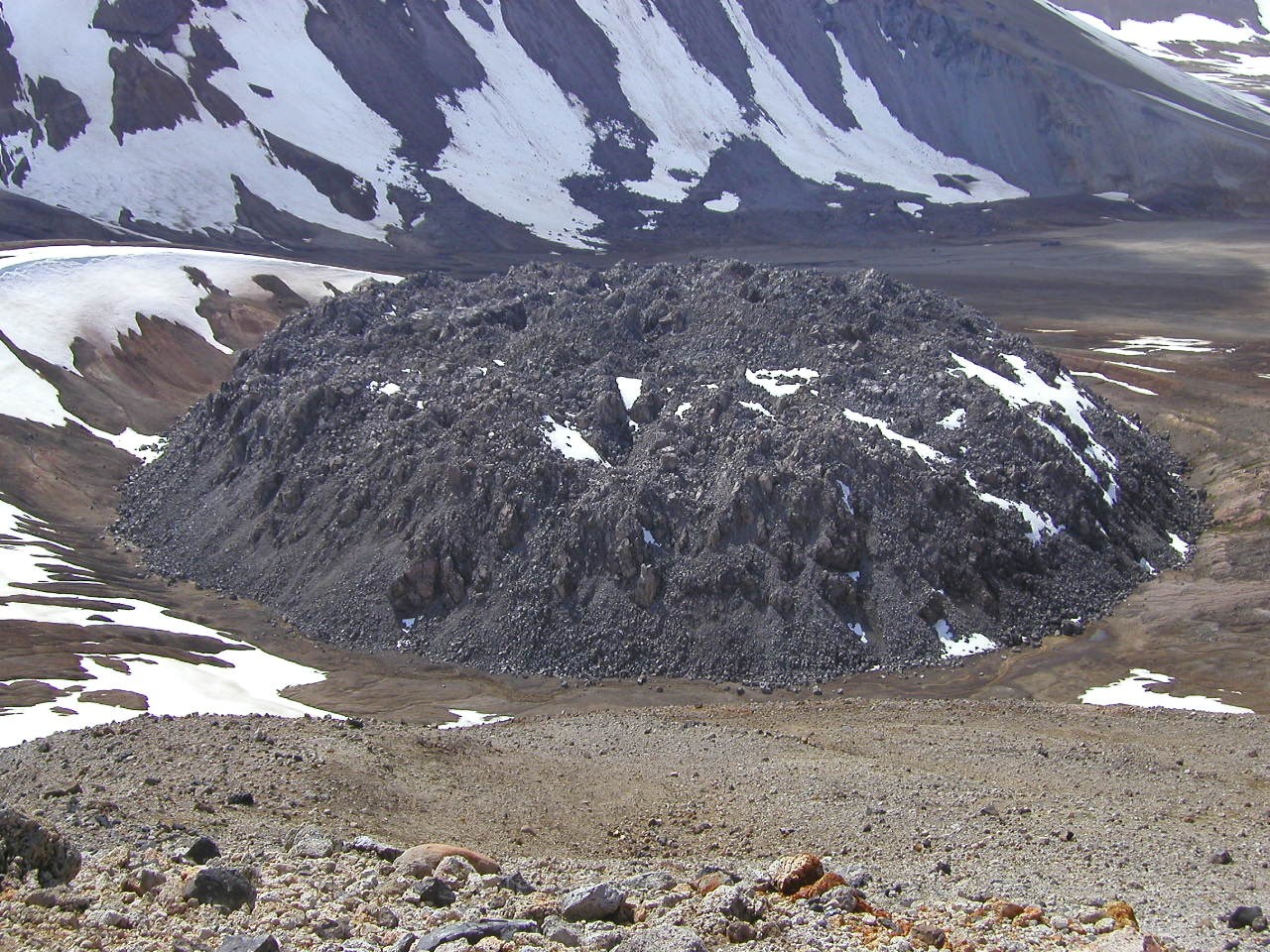

dome-shaped rock hill with partial snow cover on surrounding volcanic landscape
Novarupta Dome is approximately 1,250 feet (380 m) in diameter, and 210–230 ft (65–70 m high). It was injected into the ejecta ring at the primary vent for the 1912 eruption. Photo taken June 13, 2003.

USGS photo.

  • In Valles Caldera National Preserve, at least seven lava dome complexes formed along the ring fracture of the Valles Caldera during postcaldera volcanic activity.

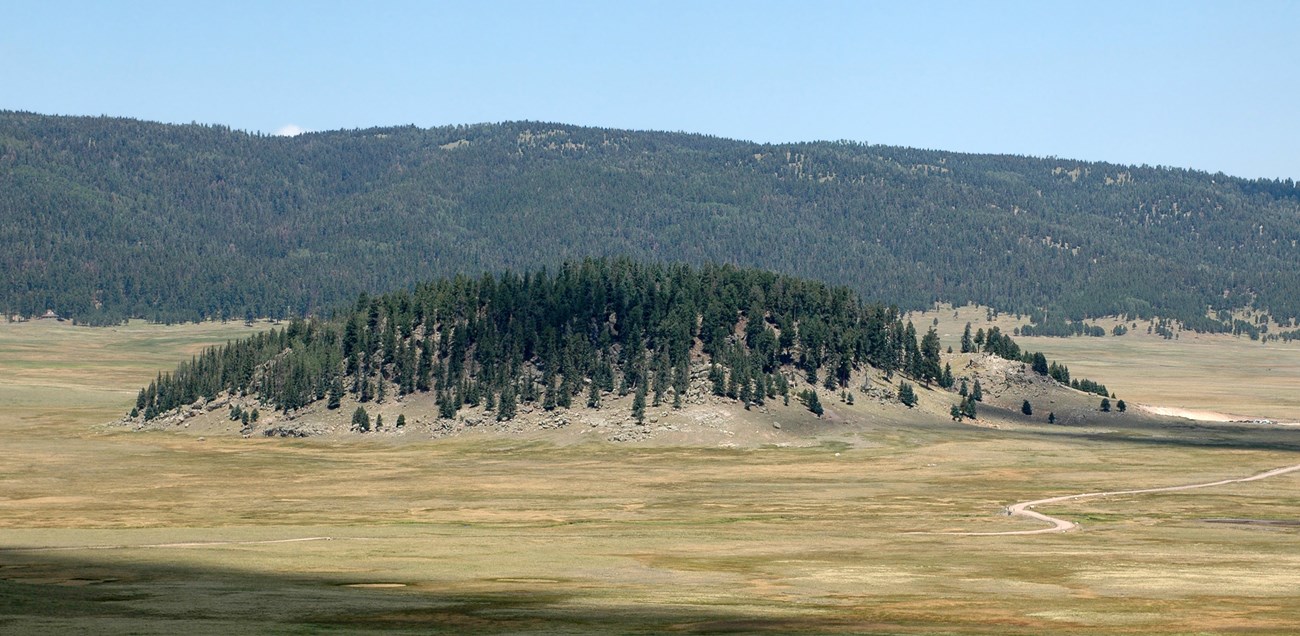

photo of a tree covered, dome-shaped hill located in an open valley with a forested ridge seen in the distance
Cerro La Jara, a rhyolite dome that formed in the in Valles Caldera National Preserve about 540,000 years ago.

Photo by Brian0918, Public domain, via Wikimedia Commons.

Overall Description

Illustration showing a cut away view of a lava dome and its magma conduit

NPS illustration by Trista Thornberry-Ehrlich (Colorado State University).

Because they are made up viscous lava, domes are usually steep-sided. They typically have rough brecciated surfaces, and sometimes they have glassy rinds due to quenching of the hot lava once it was erupted onto the surface.

Most domes are relatively small volcanoes with limited volume.

Magma Composition

Domes are usually made up of silicic lavas (dacite, rhyodacite, or rhyolite) since high viscosity is necessary to form domes.

Eruption Styles

Dome-building eruptions themselves are usually non-explosive, but growing domes may collapse to produce explosive eruptions and pyroclastic flows. They collapse because they may become over-pressured from gases trapped inside or become over-steepened.

Domes usually grow in a single eruptive episode that frequently last days-to-months.

Occurrence

Lava domes may occur anywhere there is silicic volcanism, such as in volcanic fields in subduction zones in continental environments. They may occur as clusters of domes, with each dome forming a volcanic edifice in its own right.

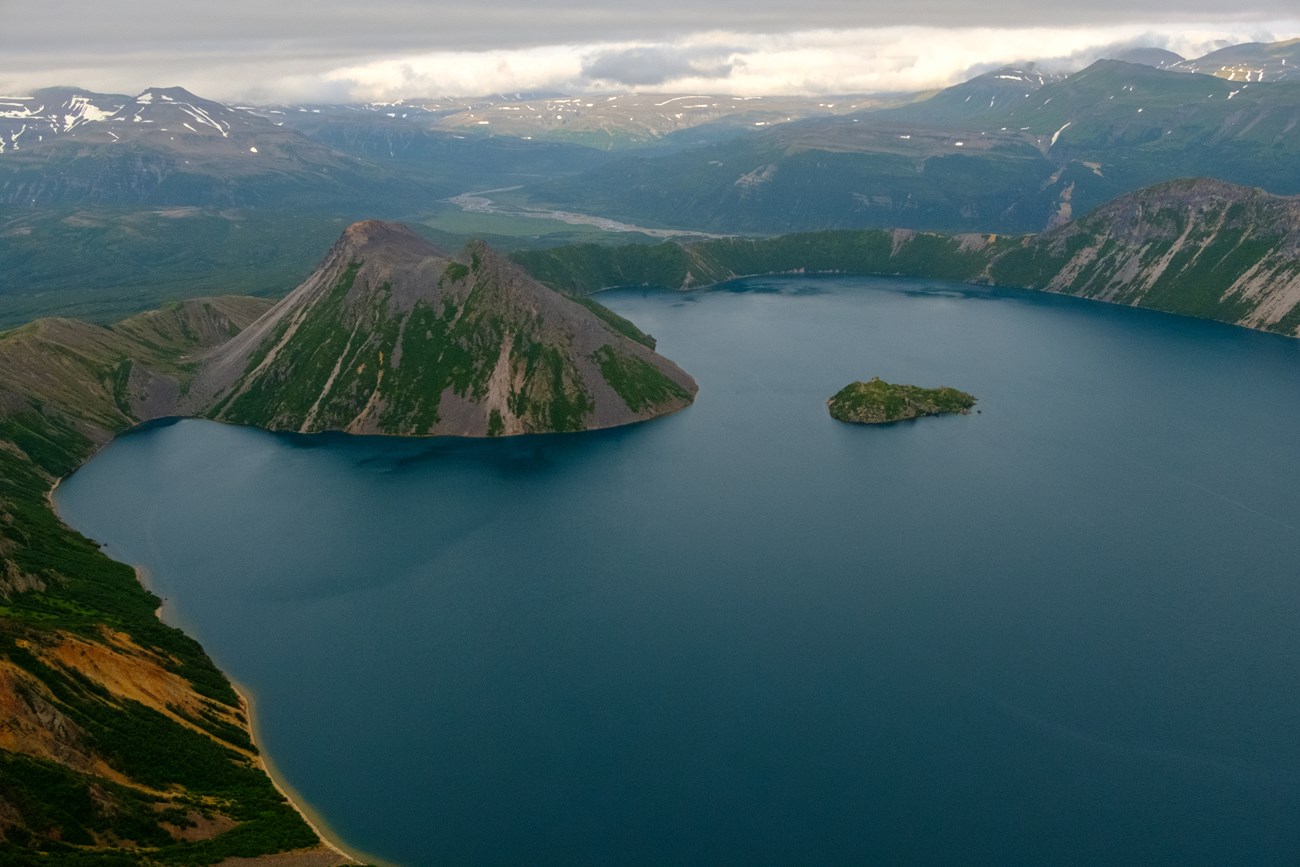

lake in a volcanic crater with domes projecting above the water level
The Kaguyak volcanic center consists of a cluster of lava domes and a collapse caldera. It formed about 5,800 years ago. The islands in the lake are domes that were extruded after the caldera-forming eruption.

USGS/Alaska Volcano Observatory photo by Matt Loewen.

In addition to forming their own volcanic edifices, domes are frequently components of composite volcanoes. They grow in the summit craters of composite volcanoes during eruptions. Domes intruded just below the surface (crypodomes) may cause a flank of a composite volcano to bulge.

Dome growth also frequently occurs within calderas as part of post-caldera volcanic activity. The most recent volcanic eruption at Crater Lake produced a subaqueous dome 4,800 years ago.

Geologic Features on Lava Domes

Fumaroles

Fumaroles are common on growing or cooling lava domes. Fumaroles on the Novarupta Dome that formed at the end of the 1912 Valley of Ten Thousand Smokes eruption in Katmai National Park had temperatures as high as 554°F (290°C) in 1919-1920. These fumaroles gradually cooled and became less vigorous over the next several decades before extinguishing.

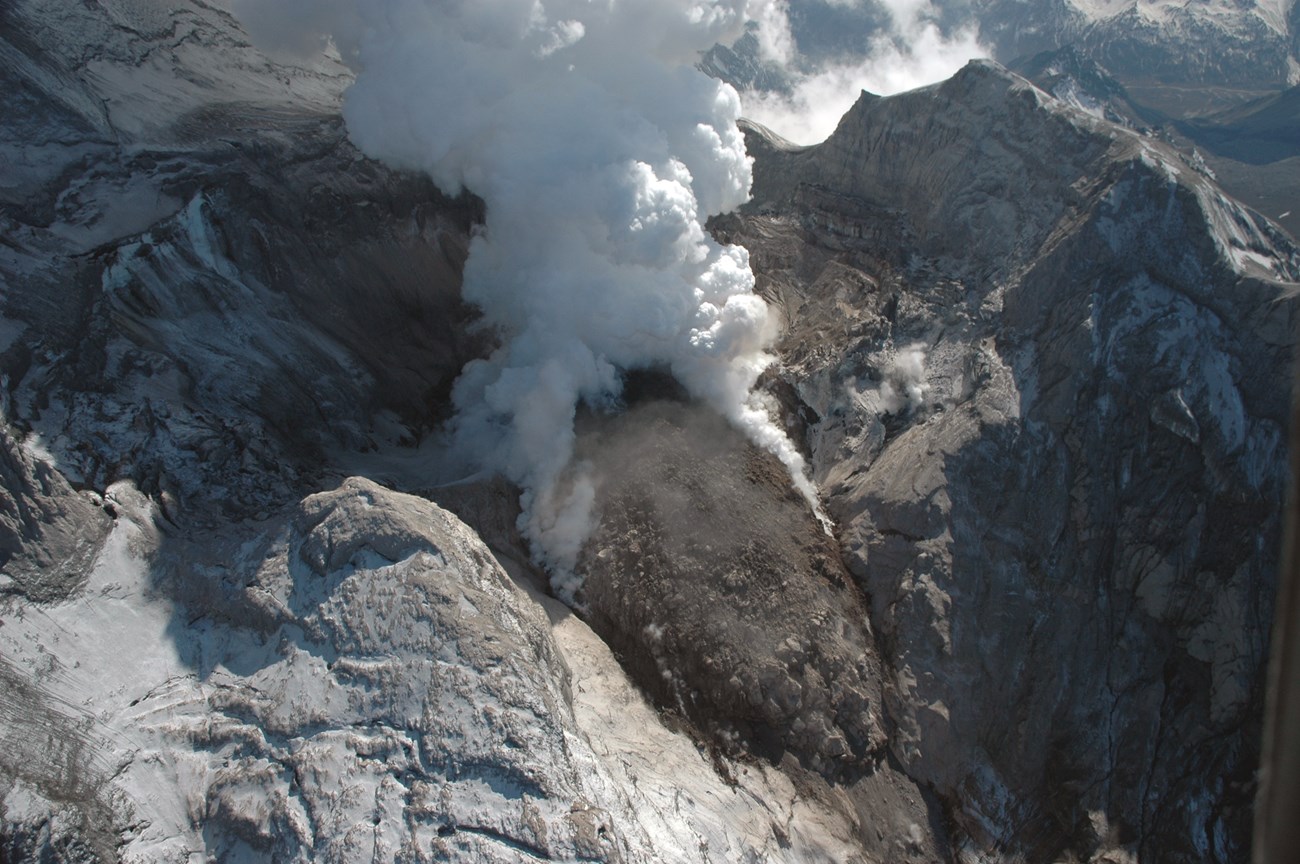

photo of a dome-shaped hill and steam cloud in a mountain top volcanic crater
Dome growing in the summit crater of Redoubt Volcano in Lake Clark National Park in May 2009. Much of the fumarole activity in this photo consists of steam.

USGS Alaska Volcano Observatory photo.

Learn More

Rubbly surface

Rough, blocky, and rubbly surfaces are characteristics of lava domes as the surface brecciates during emplacement and cooling.

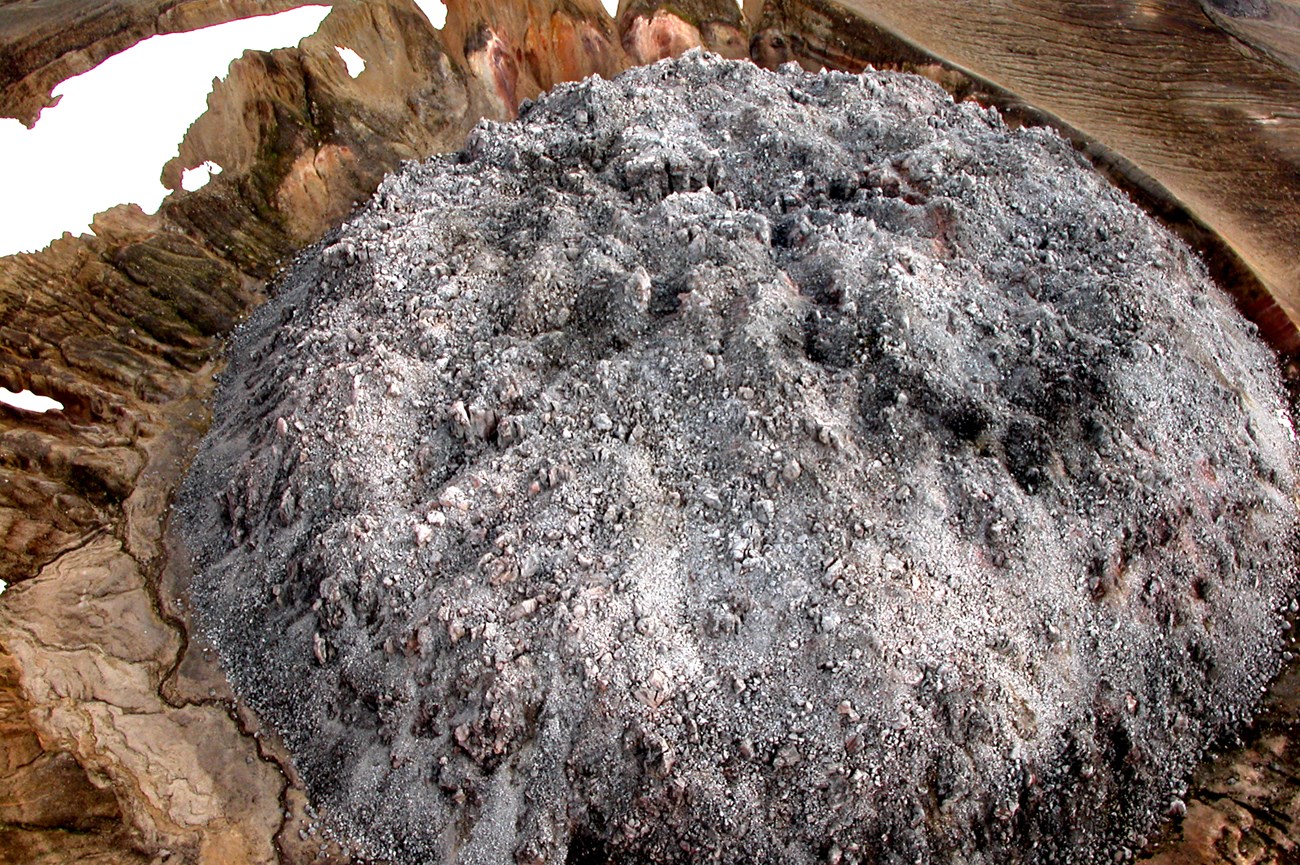

photo of a rocky dome-shaped hill
The rough rubbly surface of Novarupta Dome in Katmai National Park.

USGS/Alaska Volcano Observatory photo by Cyrus Read.

Flow banding

Flow banding is common in intermediate and silicic lavas and forms during magma or lava movements. Flow banding in lava domes can result from differences in composition and/or texture.

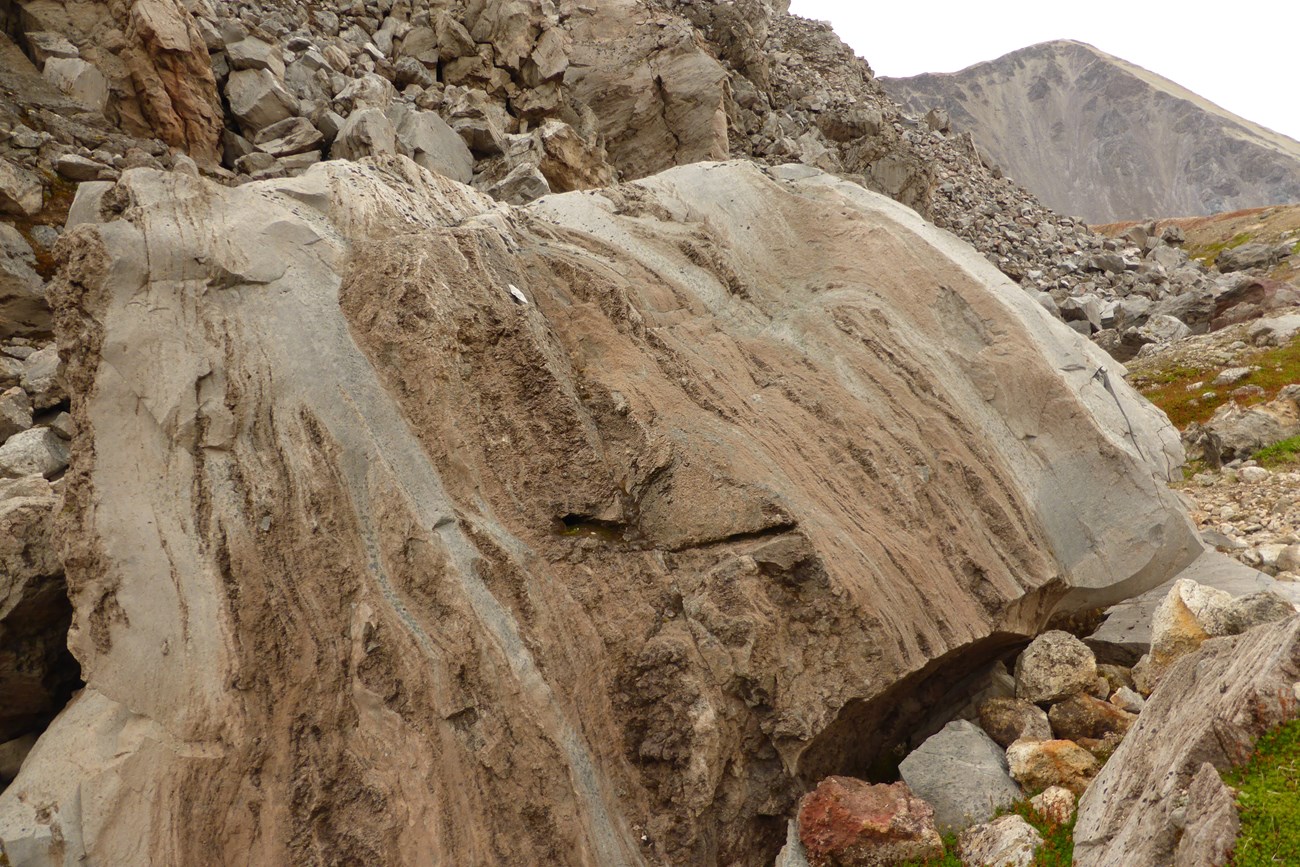

photo of boulders showing banded color and texture
Flow banding at Novarupta Dome in Katmai National Park. Novarupta’s flow banding results from variations in composition with the darker layers having dacitic or andesitic compositions, and also from variations in the degree of oxidation or vesiculation.

NPS photo by M. Fitz.

Volcanic Hazards

Lava domes present significant geohazards in their immediate vicinity. Dome collapse can occur unpredictably and produce explosive eruptions and pyroclastic flows.


National Park Sites with Volcanic Domes

  1. Aniakchak National Monument, Alaska—[Geodiversity Atlas] [Park Home] [npshistory.com]

  2. Bandelier National Monument, New Mexico—[Geodiversity Atlas] [Park Home] [npshistory.com]

  3. Big Bend National Park, Texas—[Geodiversity Atlas] [Park Home] [npshistory.com]

  4. Crater Lake National Park, Oregon—[Geodiversity Atlas] [Park Home] [npshistory.com]

  5. Katmai National Park, Alaska—[Geodiversity Atlas] [Park Home] [npshistory.com]

  6. Lake Clark National Park and Preserve, Alaska—[Geodiversity Atlas] [Park Home] [npshistory.com]

  7. Lassen Volcanic National Park, California—[Geodiversity Atlas] [Park Home] [npshistory.com]

  8. Lava Beds National Monument, California—[Geodiversity Atlas] [Park Home] [npshistory.com]

  9. Mojave National Preserve, California—[Geodiversity Atlas] [Park Home] [npshistory.com]

  10. Valles Caldera National Preserve, New Mexico—[Geodiversity Atlas] [Park Home] [npshistory.com]

  11. Wrangell-St. Elias National Park and Preserve, Alaska—[Geodiversity Atlas] [Park Home] [npshistory.com]

  12. Yellowstone National Park, Wyoming—[Geodiversity Atlas] [Park Home] [npshistory.com]
