Geologic Formations

formationsmapallgrouped415w

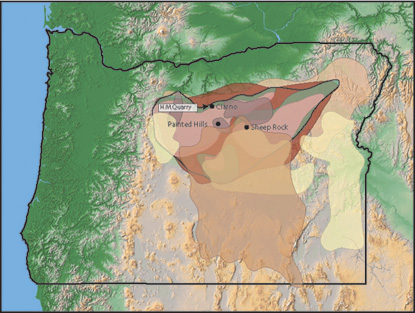

The fossil bearing rocks of the John Day basin are wide spread.

NPS Photo

Window Into the Past

Standing at almost any locality in the monument, views of distinctive rock layers abound. Each layer is a window into the past, preserving the fossilized remains of plants and animals, both familiar and strange. It is unlikely that a more complete and well-preserved record of Cenozoic terrestrial life exists anywhere in the world. For this reason, researchers from around the globe come here to share in the wonder of studying these amazing fossils. Examining the differences between each of the geologic strata helps researchers better understand how the region has changed through time. As knowledge about each of the layers grows, fundamental questions pertaining to the environment, climate, and the ancient life in western North America can be answered, providing a more complete understanding of part of Earth’s history.

Layered Rocks

Sedimentary layers are deposited in a time sequence, with the oldest on the bottom and the youngest at the top. Think of layers of rock as being pages in a book. As you continue paging through the book, you work from the youngest layer in a time sequence to the oldest. Though the former is not always the case, sometimes older rock may overlie younger formations. Faulting events or unconformities (missing sections of geologic time) can often pit old rock against young where there ought to be horizontal time continuity of rock layers.

Geological Processes and the Origin of the Earth

The geology at the John Day Fossil Beds can be split into two broad categories: physical and historical. Physical geology describes the processes that form rocks, faulting events, and other geologic occurrences. Historical geology examines the origins of the Earth and life’s adaptations to a dynamic planet. Both of these categories are utilized to find fossils as well as research and describe the landscapes that dominate the area.

How old are the rocks?

John Day Fossil Beds are now dated through the study of zircons, which is a highly accurate method of determining the age of igneous rocks. Boise State University conducts the zircon dating for the monument. The university offers a detailed tutorial for the method of zircon dating. Click this link: ZirChron to learn more.



Age Matters

Knowing the age or relative time in which fossil bearing unit paleontologists prospect in can be the difference between finding a fossil or not. Having knowledge of how and where fossils occur, along with the regional lithology (physical characteristics of a rock unit) can help determine if fossil material may be present. A fossil taken from in-situ (its original position) without temporal data (how old the rock formation is) or stratigraphic reference (a point in a vertical column of rock) loses its ability to lend information to researchers.

What Makes Fossils Favorable?

To have fossil bearing rock there needs to be a set of favorable conditions. Physical geologic occurrences allow fossils to be preserved. Most fossilized organisms had a durable skeleton or structure, and lived in an environment where sedimentation (deposition of solid materials including ash fall) occurred frequently or rapidly. The historical geology at John Day Fossil Beds tells a story of plant progression and mammal evolution as climates changed from balmy swamps to arid steppe environments.



Geologic Terms

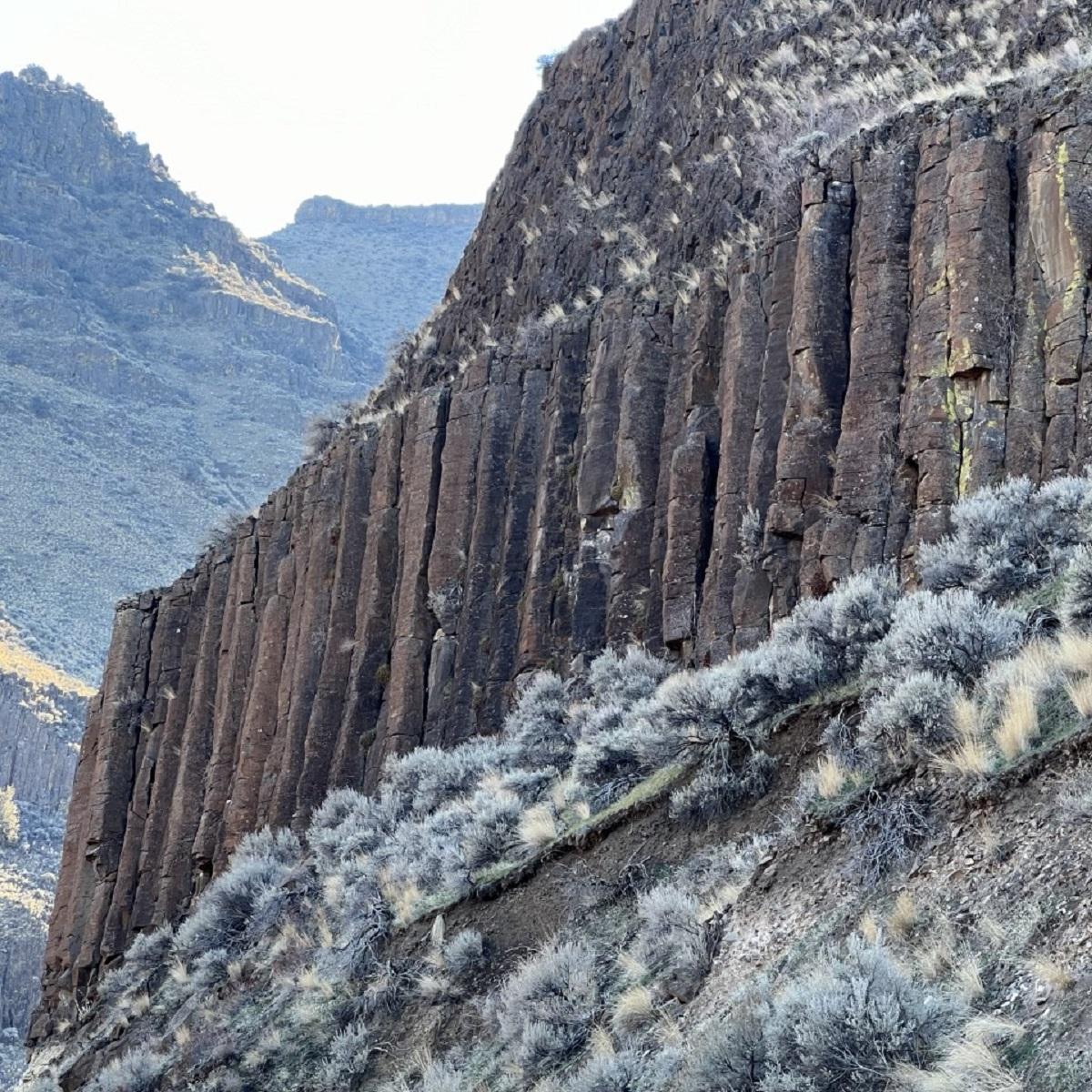

Basalt: A dark-colored volcanic rock composed of magnesium and iron-rich minerals.

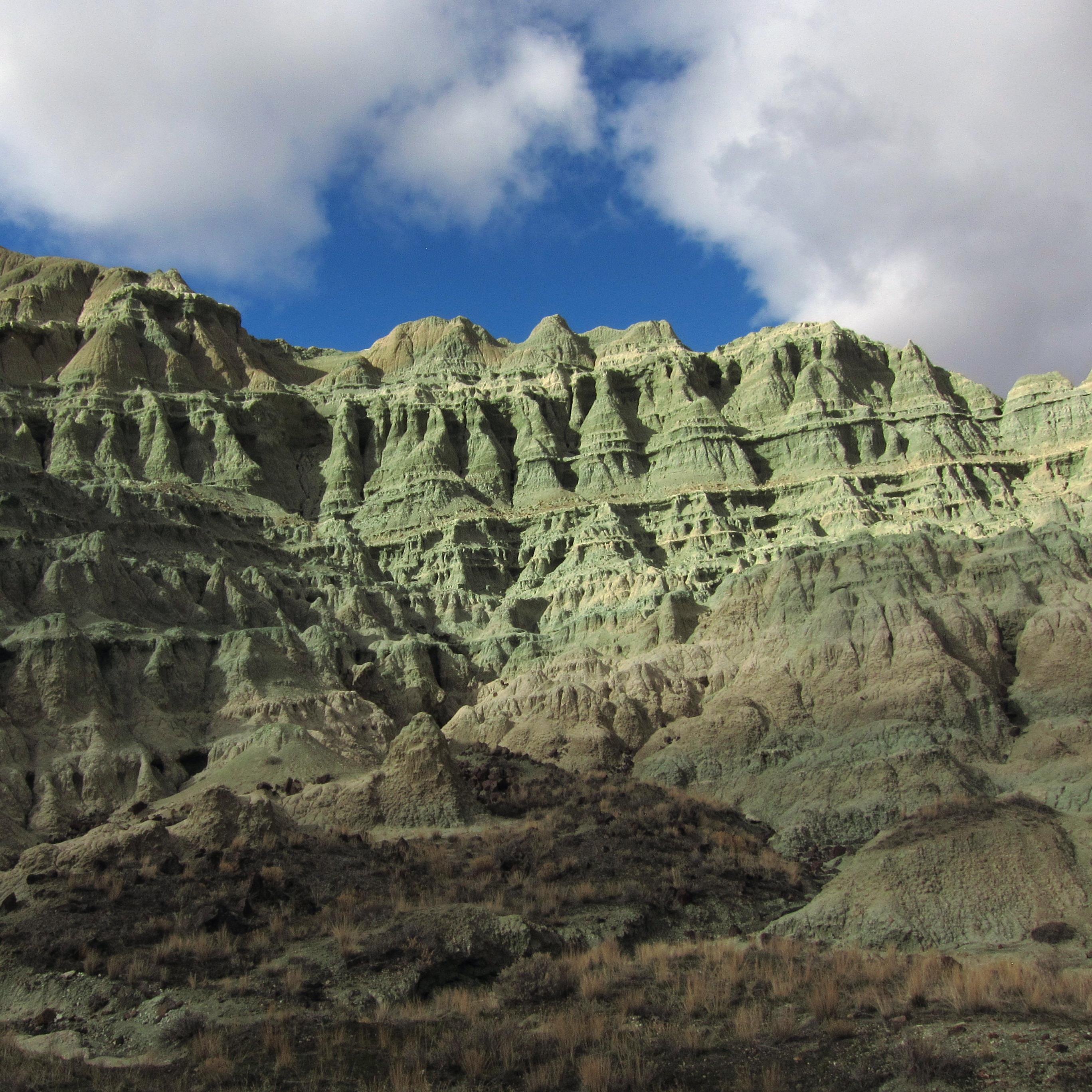

Claystone: A fine-grained sedimentary rock. Claystone at John Day Fossil Beds was formed through weathering of volcanic ash that was incorporated into ancient soils.

Conglomerate: A sedimentary rock composed of rounded particles of varying size, from clay to boulder. Usually indicative of deposition in fast-moving or turbulent water.

Formation (Fm): The primary formal unit used in the study of sedimentary rocks to classify strata. A series of rock layers with similar properties.

Ignimbrite: A rock formed from a pyroclastic flow, which is a hot, fast-moving cloud of gas and other explosively erupted volcanic material.

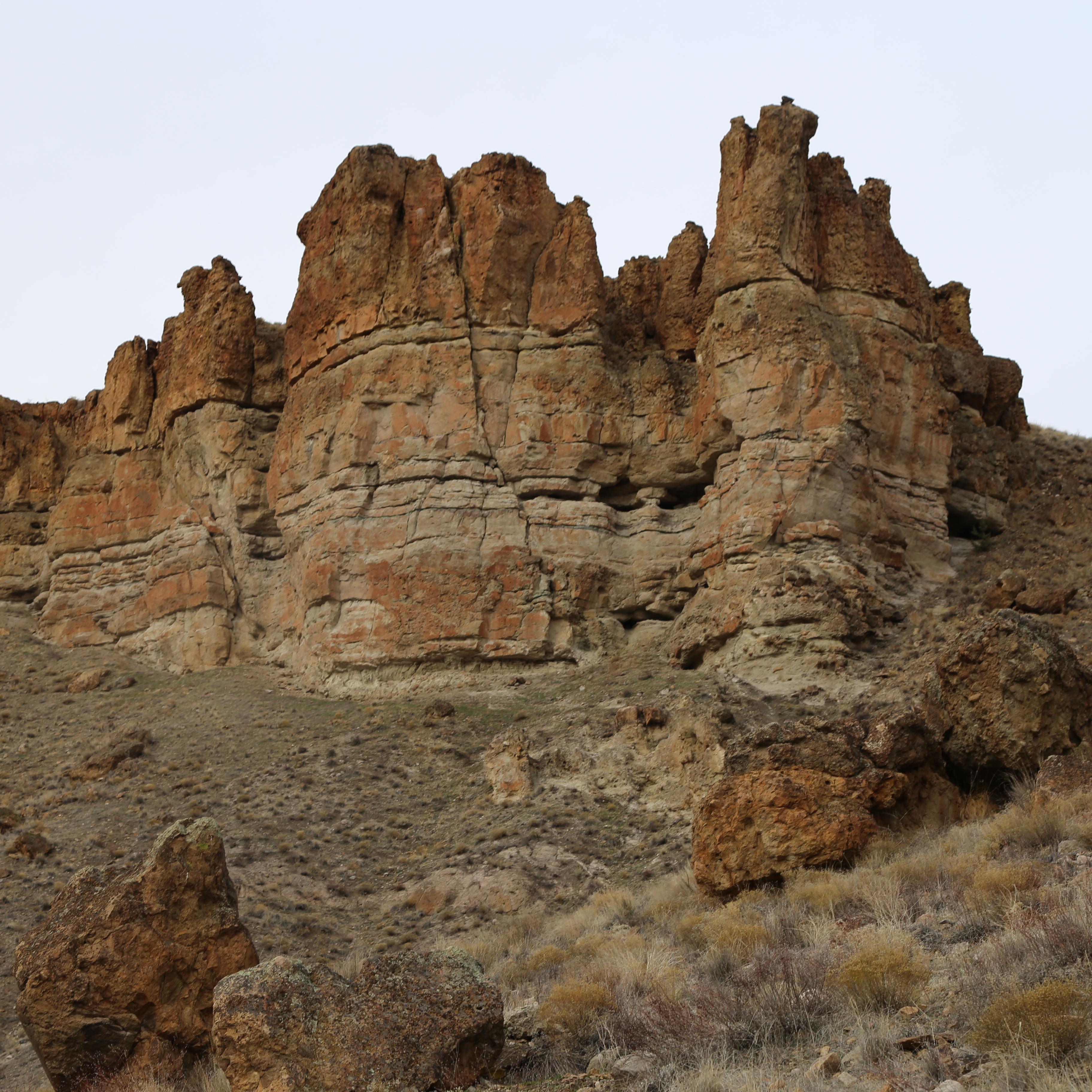

Lahar: A deposit produced by a volcanic mudlfow.

Ma (Mega annum): A million years.

Member: A formal subunit of a geological formation. Each member of a formation has properties distinguishing it from adjacent members.

Stratigraphic column: A visual, scaled representation of the vertical distribution of rock layers in a region.

Stratum (pl. strata): A layer of sedimentary rock having a consistent composition, which enables it to be distinguished from other strata.

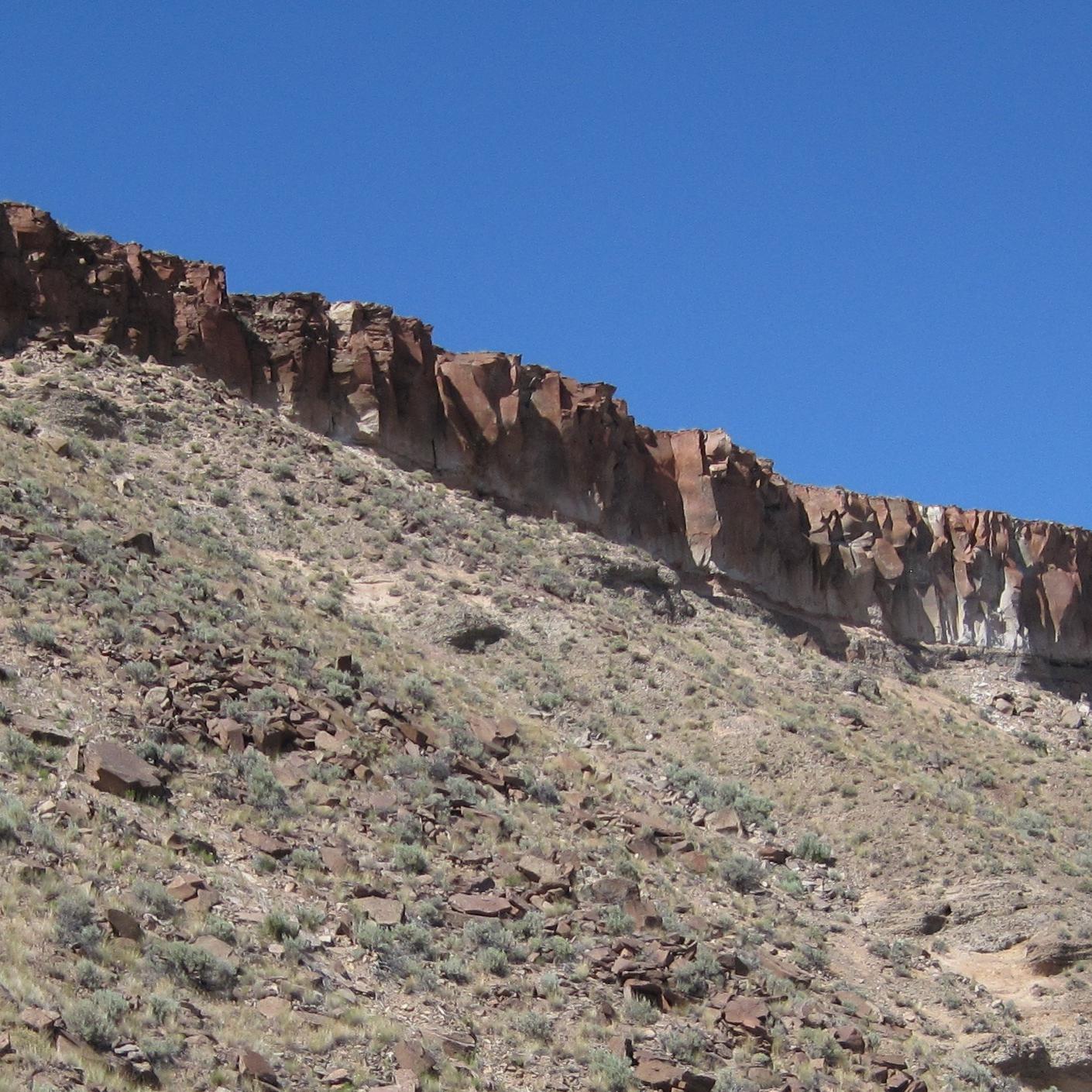

Tuff: A rock formed from consolidated volcanic ash and cinders.

Volcanic Sources of Ancient Oregon


Though the fossils of the John Day region are preserved in sedimentary rocks, these rocks are made up of materials from volcanic eruptions. Once deposited, the ash and tuff from these eruptions weather into soils, and solidify with burial and pressure into claystones and siltstones. The original sources for these volcanic materials can be found throughout eastern and central Oregon. The earliest of these is the Clarno Formation, whose primary source is an extinct range of volcanoes that now make up part of the Ochoco Mountains. Remnants of this volcanic chain can still be seen Geologic Terms in the cone-shaped hills near Mitchell.

The younger rocks of the John Day Formation were likely formed due to the activities of a large volcanic field. Calderas are all that remain of these volcanoes, which would have produced alternating basalt and ash eruptions throughout the late Eocene and early Oligocene. The three known calderas of this volcanic field include the Crooked River caldera, near present-day Prineville, the Wildcat Mountain caldera between Prineville and the Painted Hills, and the Tower Mountain caldera northeast of Sheep Rock.

The Picture Gorge Basalts were part of an extensive period of volcanism in the Pacific Northwest. The most likely source for these particular basalts was a series of fissures just east of the Sheep Rock area. The volcanic source for the Mascall formation has not yet been pinpointed, but possibilities include the modern Cascades and the McDermitt volcanic field near the Oregon-Nevada border. The ash in the most recent fossil formation, the Rattlesnake, originates from a source near the town of Burns.
