A Study of Seeps and Springs

Three photos. From left to right: an American Indain watering his horse at a spring, Kanabownits Spring, a small spring with some ferns; part of the rock is wet.

Grand Canyon National Park


columbine and monkey flowers by a spring flowing through a rock channel
Columbine and scarlet monkeyflowers

Bristlecone Media

In a cool side canyon the sound of dripping waters mixes with the cascading notes of canyon wren. Columbine nod and bob in the slight down-canyon breeze. Tiny rivulets run between delicate shooting stars, maidenhead fern, and scarlet monkeyflower then gather and continue, joining the roiling Colorado River where a California condor stoops to drink.

Springs are one of the critical natural resources to Grand Canyon National Park. Spring discharge is seen as a singular response to the hydrologic character of a much larger area and an indication of the status of the supplying aquifer systems. This water provides base flow to the Colorado River, and provides drinking water to wildlife and Park visitors in an otherwise arid environment.

Springs also support valuable riparian habitats, where species diversity is 100 to 500 times greater than the surrounding areas. Grand Canyon springs are often locations of exceptional natural beauty and many hold cultural significance to Native Americans in the region. Finally, these waters aid in the erosive process that formed the canyon itself.


park hydrologist testing water while standing in a flowing spring.
Park hydrologist Cynthia Valle testing spring water

From "Hidden Waters" Bristlecone Media

Grand Canyon National Park, with the assistance of outside partners such as the U.S. Geological Survey and the Grand Canyon Wildlands Council, conducts research on the effects of development, groundwater withdrawal, and climate change on springs and seeps throughout the Park: Grand Canyon's native waters.

Water resource management has been pushed into the spotlight in response to the rapid population growth in the western U.S. over the past decade.

This holds true for the area surrounding Grand Canyon National Park.

Town of Tusayan, gateway community to South Rim of Grand Canyon National Park.
Tusayan: South Rim gateway community

Grand Canyon National Park

Developments to the south of the Park, such as the community of Tusayan, put increased pressure on the existing groundwater resources of the Coconino Plateau, which is the recharge area of the regional aquifer system and South Rim springs.

Previously, groundwater was obtained via wells from shallow aquifer systems on the Plateau, but due to increased demand, development of groundwater from the deeper regional aquifer that supplies these springs has accelerated in the last decade.

Currently, Grand Canyon National Park does not add to this demand as its water supply is piped from Roaring Springs, which is on the Kaibab Plateau (North Rim).

Currently, the vast majority of water used on the Coconino Plateau, from Flagstaff to Tusayan, including the water you drink at Grand Canyon, comes from one source: groundwater, either flowing from springs or pumped from wells.

Grand Canyon's research on springs and seeps is part of a larger regional examination of the Coconino Plateau's ability to sustain a water supply for its growing population. With the region's population predicted to double by 2050, there will be a corresponding decrease in water availability and an estimated unmet demand by 2025.

overview of well head with large brown pipe and cement pad.

Grand Canyon National Park

The goal of the South Rim study, which examines springs between the Little Colorado River and Havasu Creek, is to assess to what degree the aquifers that supply Grand Canyon's springs and the Coconino Plateau's growing numbers of wells are connected, and how the effects of current drought and future climate change play a role.

Models predict that water pumped from wells will affect Grand Canyon springs, but it is undetermined when, and to what extent. To answer such questions, researchers must gather data to quantify how much water is stored in the Coconino Plateau's aquifers, the age and amount of water discharging from springs and how, when, and where the aquifers are recharged.


Whether replenishing desert willows or hot, thirsty hikers, the value of Grand Canyon's native waters is immense, and the need to protect them is strong. Grand Canyon's Springs and Seeps Study aims to provide quality science as the foundation for sound management strategies to protect the Park's native waters.

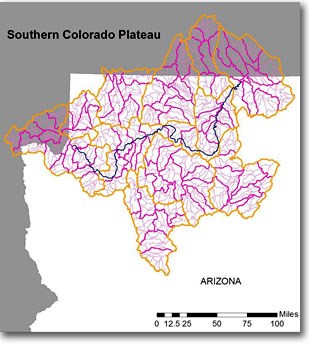

drainage map - Southern Colorado Plateau
Although the Colorado River flows through Grand Canyon's very heart, it is not of this place. The waters are exotic; the headwaters far off in the Never Summer Mountains of north-central Colorado.

Precipitation falling on the Coconino (South Rim) and Kaibab (North Rim) Plateaus creates Grand Canyon's only native waters - waters derived in place - as they percolate through porous, faulted, and fractured rock units to discharge later as springs and seeps below the canyon's rim.

Interestingly, no lakes, streams, or ponds form naturally on the plateaus; water is quickly recharged into the fractured Kaibab Formation, which caps the canyon and surrounding area. Below, porous rocks act as reservoirs and faults and fractures as conduits, while some rock units act as barriers to the movement of water.

Aquifers are created when porous rock strata are bounded by less permeable rock layers (aquitards) that deter further seepage. When water reaches relatively impermeable layers such as the Hermit and Bright Angel Shales, it moves laterally along their surfaces until it discharges from canyon walls as a seep or spring.

Vasey's Paradise - water gushing out of a rock wall
Vasey's Paradise

Grand Canyon National Park

On the Coconino Plateau two regional aquifers exist. The Coconino or "C" aquifer forms 1,000 feet below the plateau in the Coconino Sandstone, Toroweap Formation, and upper Supai Group. The Redwall or "R" aquifer is comprised of the Redwall and Muav Limestones, approximately 3,000 feet beneath the Coconino Plateau. Most plateau wells drill into these two aquifers.

Grand Canyon springs and seeps emerge from canyon walls usually at the contact between an aquifer and an aquitard, and sometimes from ancient cave systems or joints in the rock that have been enhanced by dissolution from the movement of water.

If in a canyon bottom, spring water often disappears into streambed gravel, and then reappears downstream in what's known as a canyon floor spring. If the spring emerges on a cliff face, it can form hanging gardens; or if its source has been buried by falling rock, the spring emerges from rock debris on the talus slope below.

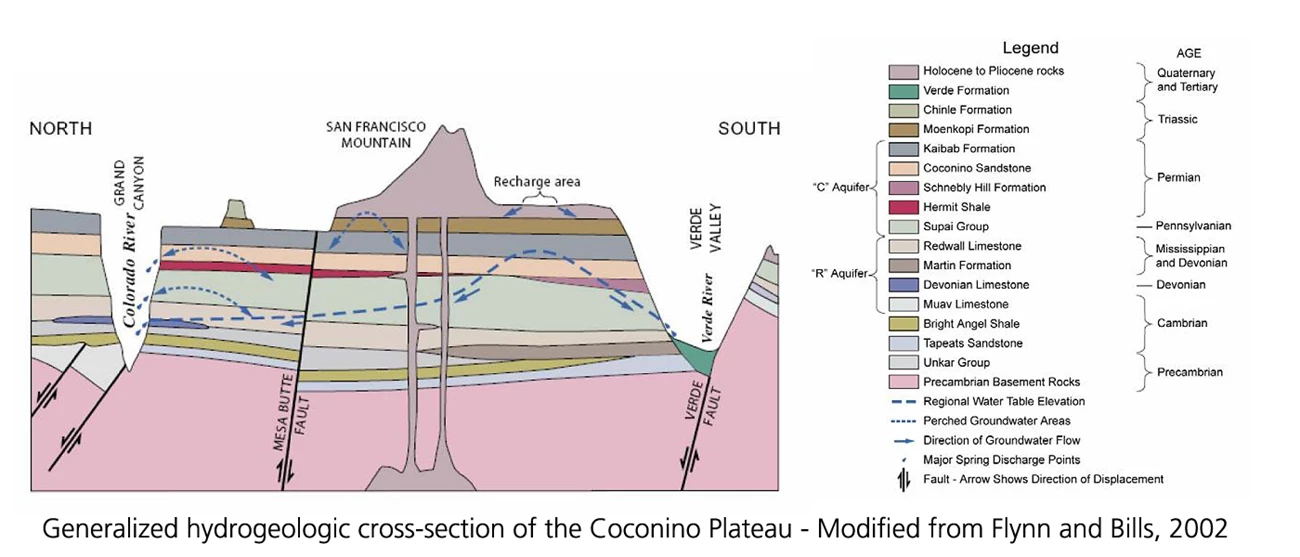

hydrogeologic diagram of cross-section of the Coconino Plateau showing the water table in relation to the various rock layers within Grand Canyon.
Generalized hydrogeologic cross-section of the Coconino Plateau.

Modified from Flynn and Bills, 2002



The Biology of Native Waters


columbine flowers by spring
Columbine flowers

Grand Canyon National Park

You smell it long before you arrive; feel it on the canyon breeze, hear it in the song of yellow warbler, the dizzy seesaw of a tree-frog chorus. You see it far off - the bright lime of cottonwood clutched under the rim; the sudden green of sedges and cattail around a canyon turn.

Although springs make up less than 0.01% of Grand Canyon's landscape, they are its lifeblood. Without water not much would survive the harsh environment of Grand Canyon.

At springs, species concentrations are 500 times greater than in surrounding desert lands. Even though springs are the proverbial oasis in the desert for both human and other-than-human, their ecology has not been fully studied at Grand Canyon. The impact of regional pumping on the water quantity and quality of these delicate and rare ecosystems is unknown. Scientists do know that when springs dry up, so do the species that depend on them.


frogs under the surface of the water
Frogs

Bristlecone Media

To date, researchers have discovered that each spring is unique and supports a distinctive array of flora and fauna, many of which are endemic (found nowhere else). For example, two South Rim springs are home to the only known white-flowering redbud trees; other springs host myriad butterflies previously unknown in Grand Canyon.

Researchers have discovered that canyon floor springs, vulnerable to repeated flash floods, support an ephemeral biology, one that regenerates after each storm event. A hillside spring, protected from such violence, provides the time and stability needed for new species to evolve, and thus creates a biology unique unto itself.



The Future of Grand Canyon's Native Waters

The coming age of water will have legal, social, and environmental implications for Grand Canyon National Park and much of the West. Additional pressures from drought and climate change will quite likely exacerbate impacts to water resources. The Springs and Seeps Study will develop management strategies to help minimize possible future impacts on the native water resources of Grand Canyon.

The National Park Service mission, as stated in the 1916 Organic Act, is to conserve the scenery and the natural and historic objects and the wild life therein and to provide for the enjoyment of the same by such means as will leave them unimpaired for the enjoyment of future generations. This charges us to protect Grand Canyon's springs and seeps so they may continue to nourish the canyon’s plants and animals, refresh hikers, and maintain the erosive processes that created this magnificent canyon.
