Park Air Profiles - Bandelier National Monument

Air Quality at Bandelier National Monument

Most visitors expect clean air and clear views in parks. Bandelier National Monument (NM), New Mexico, is home to rugged and beautiful canyon and mesa country as well as evidence of a human presence going back over 11,000 years. However, both local and distant air pollutant sources—including power plants, oil and gas development and production activities, and the Santa Fe and Albuquerque metropolitan areas—can degrade air quality at the park. Air pollutants blown into the park can harm natural and scenic resources such as soils, surface waters, plants, wildlife, and visibility. The National Park Service works to address air pollution effects at Bandelier NM, and in parks across the U.S., through science, policy and planning, and by doing our part.

Nitrogen and Sulfur

Park visitors at Tyuonyi Village from the Frey Trail
Visitors come to Bandelier NM to enjoy scenic views of archaeological sites, canyons, and mesas.

Nitrogen (N) and sulfur (S) compounds deposited from the air may have harmful effects on ecosystem processes. Healthy ecosystems can naturally buffer a certain amount of pollution, but once a threshold is passed the ecosystem may respond negatively. This threshold is the critical load, or the amount of pollution above which harmful changes in sensitive ecosystems occur (Porter 2005). N and S deposition change ecosystems through eutrophication (N deposition) and acidification (N + S deposition). Eutrophication increases soil and water nutrients which causes some species to grow more quickly and changes community composition. Ecosystem sensitivity to nutrient N enrichment at Bandelier National Monument (BAND) relative to other national parks is high (Sullivan et al. 2016); for a full list of N sensitive ecosystem components, see: NPS ARD 2019. Acidification leaches important cations from soils, lakes, ponds, and streams which decreases habitat quality. Ecosystem sensitivity to acidification at BAND relative to other national parks is high (Sullivan et al. 2016); to search for acid-sensitive plant species, see: NPSpecies.

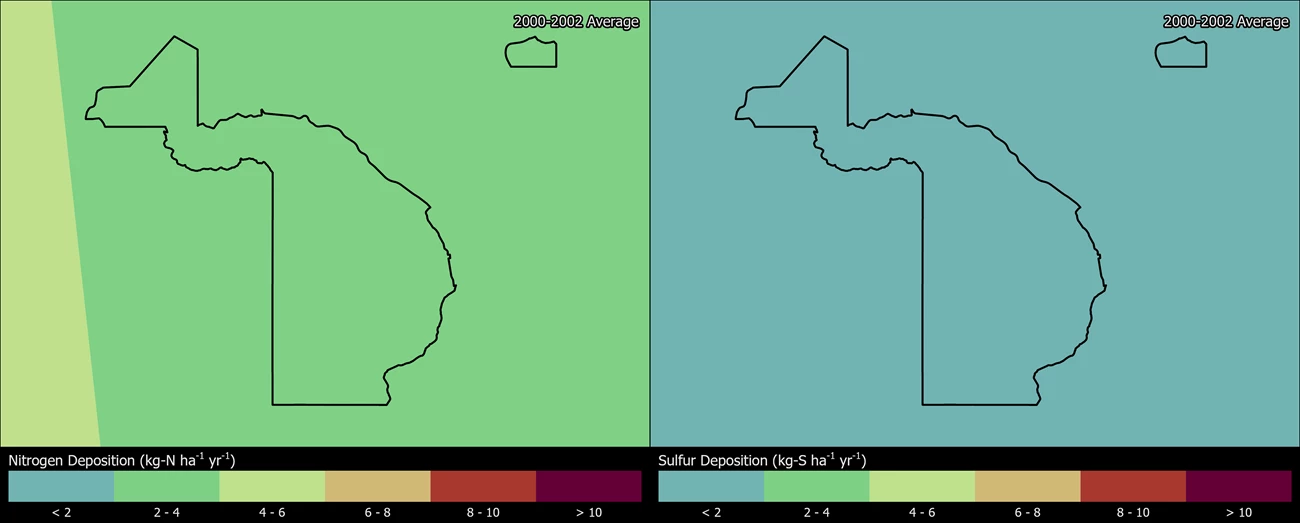

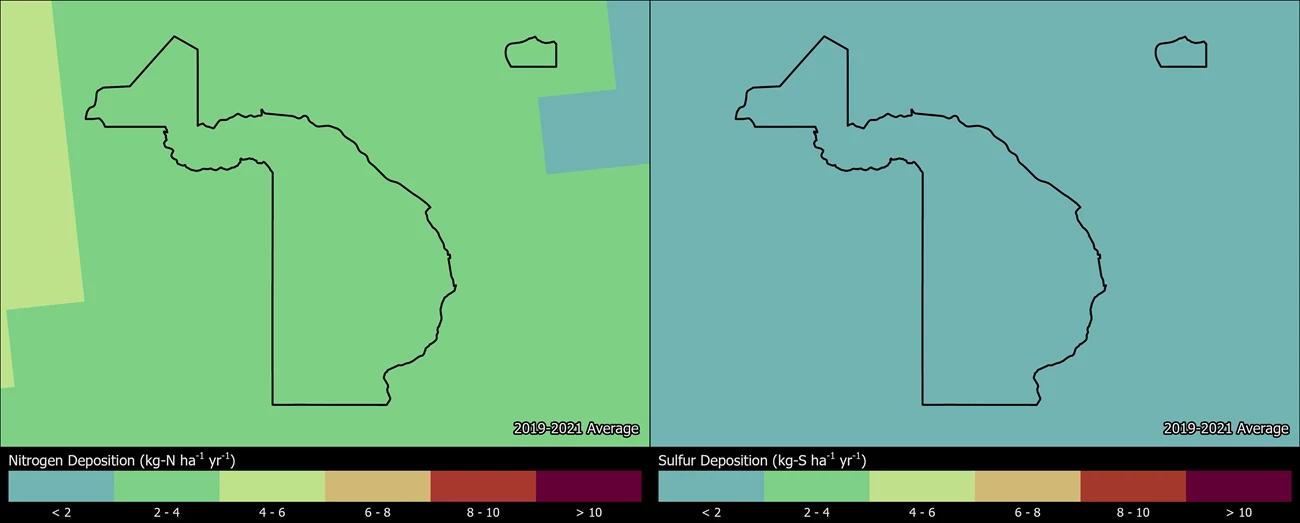

From 2017-2019 total N deposition in BAND ranged from 2.9 to 4.5 kg-N ha-1 yr-1 and total S deposition ranged from 0.6 to 1.0 kg-S ha-1 yr-1 based on the TDep model (NADP, 2018). BAND has been monitoring atmospheric N and S deposition since 1982, see the conditions and trends website for park-specific information.

Arid ecosystems have shown variable responses to excess N. Studies from ecosystems nearby BAND show that increases in N promote the spread of fast-growing non-native annual grasses (e.g., cheatgrass) and forbs (e.g., Russian thistle) at the expense of native species (Brooks 2003; Schwinning et al. 2005; Allen et al. 2009). In addition, weed density increases in post-fire environments with higher soil N levels (Floyd-Hanna et al. 2004). While these impacts have not been studied at BAND, N deposition in the park is at levels known to affect diversity of plants and lichens (Pardo et al. 2011). The 2011 Las Conchas Fire at BAND burned over 75% of the Frijoles Canyon watershed, further impacting the park’s waterways and susceptibility to acidification and nutrient enrichment.

Streams in the Jemez Mountain region are well-buffered from acidification. However, smaller streams with steep-sided canyon walls have limited ability to retain nutrients and water or buffer acidic run-off (Binkley et al. 1997).

Epiphytic macrolichen community responses

Epiphytic macrolichens grow on tree trunks, branches, and boles. Since these lichens grow above the ground, they obtain all their nutrients directly from precipitation and the air. Many epiphytic lichen species have narrow environmental niches and are extremely sensitive to changes in air pollution. Epiphytic lichen communities are less diverse in arid areas, but are still impacted by air pollution. Geiser et al. (2019) used a U.S. Forest Service national survey to develop critical loads of nitrogen (N) and critical loads of sulfur (S) to prevent more than a 20% decline in four lichen community metrics: total species richness, pollution sensitive species richness, forage lichen abundance, and cyanolichen abundance.

McCoy et al. (2021) used forested area from the National Land Cover Database to estimate the impact of air pollution on epiphytic lichen communities. Forested area makes up 33 km2 (24%) of the land area of Bandelier National Monument.

  • N deposition exceeded the 3.1 kg-N ha-1 yr-1 critical load to protect N-sensitive lichen species richness in 28.1% of the forested area.
  • S deposition was below the 2.7 kg-S ha-1 yr-1 critical load to protect S-sensitive lichen species richness in every part of the forested area.

For exceedances of other lichen metrics and the predicted decline of lichen communities see Appendices A and B of McCoy et al. (2021).

Additional modeling was done on 459 lichen species to test the combined effects of air pollution and climate gradients (Geiser et al. 2021). A critical load indicative of initial shifts from pollution-sensitive toward pollution-tolerant species occurred at 1.5 kg-N ha-1 yr-1 and 2.7 kg-S ha-1 yr-1 even under changing climate regimes.

Plant species response

Plants vary in their tolerance of eutrophication and acidification, and some plant species respond to nitrogen (N) or sulfur (S) pollution with declines in growth, survival, or abundance on the landscape. Horn et al. (2018) used the U.S. Forest Service national forest survey to develop critical loads of N and critical loads of S to prevent declines in growth or survival of sensitive tree species. Clark et al. (2019) used a database of plant community surveys to develop critical loads of N and critical loads of S to prevent a decline in abundance of sensitive herbaceous plant species. According to NPSpecies, Bandelier National Monument contains:

  • 5 N-sensitive tree species and 32 N-sensitive herbaceous species.
  • 10 S-sensitive tree species and 28 S-sensitive herbaceous species.

Visibility

Rainbow over scenic desert and ruin in Bandelier NM
Clean, clear air is essential to appreciating the scenic vistas at Bandelier NM.

Many visitors come to Bandelier NM to enjoy views of the Jemez Mountains, steep-walled canyons of the Rio Grande, and evidence of ancient cultures. Park vistas are sometimes obscured by haze, reducing how well and how far people can see. Visibility reducing haze is caused by tiny particles in the air, and these particles can also affect human health. Many of the same pollutants that ultimately fall out as nitrogen and sulfur deposition contribute to this haze. Organic compounds, soot, fires, and dust storms reduce visibility as well. Significant improvements in park visibility have been documented since the 1990’s. Still, visibility in the park needs improvement to meet the Clean Air Act goal of no human caused impairment.

Visibility effects:

  • Reduced visibility, at times, due to human-caused haze and fine particles of air pollution, including dust;
  • Reduction of the average natural visual range from about 175 miles (without pollution) to about 120 miles because of pollution at the park;
  • Reduction of the visual range to below 80 miles on high pollution days.

Visit the NPS air quality conditions and trends website for park-specific visibility information. Bandelier NM has been monitoring visibility since 1988. Explore air monitoring »

Ground-Level Ozone

Skunkbush
Skunkbush is one of the ozone sensitive species found at Bandelier NM.

At ground level, ozone is harmful to human health and the environment. Ground-level ozone does not come directly from smokestacks or vehicles, but instead is formed when other pollutants, mainly nitrogen oxides and volatile organic compounds, react in the presence of sunlight.

Over the course of a growing season, ozone can damage plant tissues making it harder for plants to produce and store food. It also weakens plants making them less resistant to disease and insect infestations. A risk assessment that considered ozone exposure, soil moisture, and sensitive plant species concluded that plants in Bandelier NM were at low risk of ozone injury (Kohut 2004). However, estimated ozone concentrations and cumulative doses at the park are high enough to damage the leaves of sensitive vegetation under certain conditions (NPS 2010; Binkley et al. 1997). North of Bandelier NM at Rocky Mountain National Park, scientists found that in moist areas along streams and seeps, plants may keep stomates on their leaves open more often, allowing ozone uptake and injury (Kohut et al. 2012). Some plants are more sensitive to ozone than others. Ozone sensitive plant species at the park include Apocynum androsaemifolium (Spreading dogbane), Rhus trilobata (skunkbush), and Rudbeckia laciniata (cut-leaf coneflower). Search for more ozone-sensitive plant species found at Bandelier NM.

Visit the NPS air quality conditions and trends website for park-specific ozone information.

References

Allen, E. B., L. E. Rao, R. J. Steers, A. Bytnerowicz, and M. E. Fenn. 2009. Impacts of atmospheric nitrogen deposition on vegetation and soils in Joshua Tree National Park. Pages 78-100 in R. H. Webb, L. F. Fenstermaker, J. S. Heaton, D. L. Hughson, E. V. McDonald, and D. M. Miller, editors. The Mojave Desert: ecosystem processes and sustainability. University of Nevada Press, Las Vegas, Nevada, USA.

Binkley, D., C. Giardina, I. Dockersmith, D. Morse, M. Scruggs, K. Tonnessen. 1997. Status of Air Quality and Related Values in Class I National Parks and Monuments of the Colorado Plateau. National Park Service, Air Resources Division, Denver, Colorado. Chapter 4: Bandelier National Monument. Available at https://irma.nps.gov/DataStore/Reference/Profile/585485.

Brooks, M. L. 2003. Effects of increased soil nitrogen on the dominance of alien annual plants in the Mojave Desert. Journal of Applied Ecology. 40:344-353.

Clark, C.M., Simkin, S.M., Allen, E.B. et al. Potential vulnerability of 348 herbaceous species to atmospheric deposition of nitrogen and sulfur in the United States. Nat. Plants 5, 697–705 (2019). https://doi.org/10.1038/s41477-019-0442-8

Floyd-Hanna, L., Hanna, D., Romme, W. H., Crews, T. 2004. Non-native invasions following fire in Southwestern Colorado: Long-term effectiveness of mitigation treatments and future predictions. Joint Fire Science Program, product number 1496–BLM2–454.

Geiser, Linda & Nelson, Peter & Jovan, Sarah & Root, Heather & Clark, Christopher. (2019). Assessing Ecological Risks from Atmospheric Deposition of Nitrogen and Sulfur to US Forests Using Epiphytic Macrolichens. Diversity. 11. 87. 10.3390/d11060087.

Geiser, Linda & Root, Heather & Smith, Robert & Jovan, Sarah & Clair, Larry & Dillman, Karen. (2021). Lichen-based critical loads for deposition of nitrogen and sulfur in US forests. Environmental Pollution. 291. 118187. 10.1016/j.envpol.2021.118187.

Horn KJ, Thomas RQ, Clark CM, Pardo LH, Fenn ME, Lawrence GB, et al. (2018) Growth and survival relationships of 71 tree species with nitrogen and sulfur deposition across the conterminous U.S.. PLoS ONE 13(10): e0205296. https://doi.org/10.1371/journal.pone.0205296

Kohut, B. 2004. Assessing the Risk of Foliar Injury from Ozone on Vegetation in Parks in the Southern Colorado Plateau Network. Available at https://irma.nps.gov/DataStore/Reference/Profile/2181544.

Kohut, B., C. Flanagan, E. Porter, J. Cheatham. 2012. Foliar Ozone Injury on Cutleaf Coneflower at Rocky Mountain National Park, Colorado. Western North American Naturalist 72(1): 32-42.

McCoy K., M. D. Bell, and E. Felker-Quinn. 2021. Risk to epiphytic lichen communities in NPS units from atmospheric nitrogen and sulfur pollution: Changes in critical load exceedances from 2001‒2016. Natural Resource Report NPS/NRSS/ARD/NRR—2021/2299. National Park Service, Fort Collins, Colorado. https://doi.org/10.36967/nrr-2287254.

[NADP] National Atmospheric Deposition Program. 2018. NTN Data. Accessed January 20, 2022. Available at http://nadp.slh.wisc.edu/NADP/

[NPS] National Park Service. 2010. Air Quality in National Parks: 2009 Annual Performance and Progress Report. Natural Resource Report NPS/NRPC/ARD/NRR–2010/266. National Park Service, Denver, Colorado. Available at https://irma.nps.gov/DataStore/Reference/Profile/662783.

Pardo, L. H., M. J. Robin-Abbott, C. T. Driscoll, eds. 2011. Assessment of Nitrogen deposition effects and empirical critical loads of Nitrogen for ecoregions of the United States. Gen. Tech. Rep. NRS–80. Newtown Square, PA: U.S. Department of Agriculture, Forest Service, Northern Research Station. 291 p. Available at: http://nrs.fs.fed.us/pubs/38109.

Porter, E., Blett, T., Potter, D.U., Huber, C. 2005. Protecting resources on federal lands: Implications of critical loads for atmospheric deposition of nitrogen and sulfur. BioScience 55(7): 603–612. https://doi.org/10.1641/0006-3568(2005)055[0603:PROFLI]2.0.CO;2

Schwinning, S., B. I. Starr, N. J. Wojcik, M. E. Miller, J. E. Ehleringer, R. L. Sanford. 2005. Effects of nitrogen deposition on an arid grassland in the Colorado plateau cold desert. Rangeland Ecology and Management. 58: 565-574.

Sullivan, T. J. 2016. Air quality related values (AQRVs) in national parks: Effects from ozone; visibility reducing particles; and atmospheric deposition of acids, nutrients and toxics. Natural Resource Report NPS/NRSS/ARD/NRR—2016/1196. National Park Service, Fort Collins, CO.
