Small Craft

The park's collection of more than 100 traditional and significant small craft is a fine introduction to boatbuilding and the maritime trades. Below are just a few examples of the representative gems in the park's small craft collection.

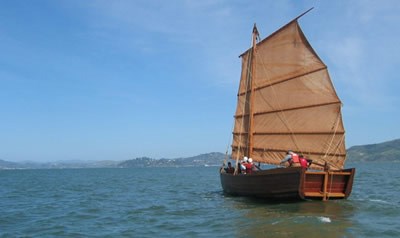

The shrimp junk Grace Quan sailing on San Francisco Bay, 2010

NPS Image

Grace Quan

The Grace Quan is a replica of the type of fishing vessel used throughout the Bay Area by Chinese shrimp fishing companies between 1860 and 1910.

In 2003 employees and volunteers from San Francisco Maritime National Historical Park and China Camp State Park in Northern California, built a replica of a Chinese Shrimp Junk and named it Grace Quan.

More about the shrimp junk.



The Merry Bear on San Francisco Bay.

NPS Photo

Merry Bear

The Merry Bear was built at the Nunes Boatyard in Sausalito in 1931 and is the first Bear Boat. Bear Boats are the first class of sloop yachts (a type of boat with a single mast and a fore-and-aft-rig) designed and built to sail on San Francisco Bay.

The Nunes brothers came up with a winning design. The Bear Boat was small enough to be affordable in the depression-era 1930s, yet large and strong enough to sail well in the brisk winds and challenging currents of the Bay, and they quickly became a popular choice for sailors. Almost 80 years later a small but dedicated group of Bear Boat sailors still lovingly maintain their yachts and can be seen racing their craft on the Bay.

Length: 22 feet, 9 inches
Beam: 7 feet
Draft: 4 feet
The keel is made of iron. The planking is Douglas fir and the ribs oak.

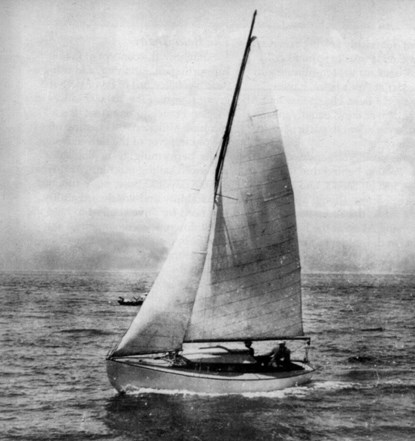

A historic photo of the Merry Bear sailing on San Francisco Bay

NPS Photo



The Fort Ross Yawl

The little Fort Ross yawl was built by George Kneass of San Francisco in about 1900 for use at the Call Ranch Landing at Fort Ross. The Calls ran cattle and sheep and cut redwood for shingles, ties, and fence posts. Perched on the bluffs above the Pacific, the ranch offered little in the way of a harbor, but there was a reasonable site for a chute, and later a highwire rig, that could drop cargo down onto the deck of a schooner or a steam schooner. The little yawl was a general purpose kind of boat, helpful in running lines for visiting schooners or for getting out to the Call's own vessels if they were moored offshore.The yawl was kept ashore, and dropped in from the highwire when it was needed. Fort Ross had no landing for even so small a boat.

Yawl boats, by the middle of the nineteenth century, were generally used as ships' boats for schooners. The term is derived from the Dutch, and shares its origins with the British "jolly boat," a lapstrake ship's boat for small cargo vessels, of the same general shape. (There is no particularly logical link with the sailing rig of the same name.)

The Fort Ross yawl is carvel-built, with a near-plumb stempost and wide wineglass transom stern with minimal rake. She is of medium scantlings; heavy enough to take a beating, yet light enough to row well. She has two thwarts, two rowing stations, and a generous sternsheets of redwood plank. The boat is framed in white oak and planked in Port Orford cedar, and is iron nail fastened. She is 13' in length overall and 5' 2" in beam; a length to beam ration of about 2.5 to 1.



The Joe Leathers Yawl

The Joe Leathers yawl was collected at Tomales Bay in the late 1980s with the brand of its builder, Joe Leathers, burned into the starboard side of the transom. Leathers and his brother Richard operated a boat shop at Astoria, Oregon, between 1881 and 1903, so the yawl's time and place of origin are fairly well pinned down. What, we might ask, was an Oregon boat doing on Tomales Bay? This boat was likaly a yawl from a big schooner, perhaps the four-master Polaris, which was built in Oregon (at Marshfield in 1902) and wrecked on Duxbury Reef in 1914, near Point Bolinas, some fifteen miles south of Point Reyes. Because the schooner was driven onto the reef by a ninety-mile-an-hour southerly gale, one of her boats could easily have been recovered adrift or on the beach in the Point Reyes area and ended up at Tomales Bay.

At 16' 2" in length by 4' 10" of beam, the Joe Leathers yawl is a bigger boat than the Fort Ross yawl, but of similar overall design. She shares the carvel-planked hull, fastened with iron nails to steam-bent white oak frames. Her transom and backbone are also of white oak. Her stem post is raked slightly forward, but the wide wineglass transom is similar to the Kneass-built boat. Assuming that she is a ship's boat, her size would indicate that she was carried aboard something larger than a two-masted doghole schooner. While perhaps not heavy enough to be the principle boat of a large four-master, the Joe Leathers yawl could well have been the Master's boat on such a schooner.

Evidence in the yawl of a two-masted sailing rig would seem to support this idea. There are mast partner holes through two of the thwarts; a larger main mast forward and a mizzen aft, probably for a lugsail ketch rig. The partners and steps, if they are not original to the boat, are at least very old. A boat designed for the Master's use might well be a bit lighter and have a more developed sailing rig than a general-purpose boat. Normally a yawl, if it were rigged at all, would have a single mast forward for a sprit or a lug rig.



The Blue Pilot Yawl

Reputedly built around 1890, the blue pilot yawl is a plumb-stemmed carvel yawl that once belonged to the San Francisco Bar Pilots. The boat did duty on the pilot station, some ten miles outside the Golden Gate, transferring pilots between the pilot schooner and vessels entering or leaving San Francisco.

There are three pilot yawls in the Small Craft collection, but this one, with its gaudy blue interior, is in the most original condition. It is pristinely fastened with copper rivets and nails, and its oak sheer strake and rub rail are apparently as they were built. Her sternsheets and hanging knees retain their original graceful curves.

The pilot yawl used on the San Francisco Bar was essentially identical to East Coast boats developed in Boston and New York. Piloting at San Francisco started out in Boston-built schooners, and in general followed the Boston patterns of gear and operation. Although the yawls came to be built locally, by George Kneass among others, the design was largely unmodified. The clearest mark of the pilot yawl was the rounded skeg, the after end of the keel arcing up to tuck in just below the transom. This was done to prevent damage when the boats were thrown into the water from the deck of the pilot schooner, or when they were recovered with a whip from the foremast.



The Norwegian Pram

A boat like the Norwegian pram can provide a reflection of the cultural mix in the maritime history on the West Coast. We know, in theory, that the coasting trade of the Pacific Coast from at least the 1870s until its end in the late 1930s was entirely dominated by Scandinavian seamen. Almost all of the names of all of the officers and crews of the lumber fleet, under both sail and steam, were Scandinavian. The steam schooners were called "The Russian-Finn Navy." Yet very little remains in the way of identifiable cultural objects to mark the commanding Scandinavian presence on the West Coast.In general, the coasting vessels they sailed were of American design, their gear an d clothing not notably different from that of any seamen. Virtually nothing remains that can be pointed to as uniquely Scandinavian. Even the Scandinavian seamen's bars which used to dot the Mission District are now largely gone. But we do have this little pram, an unmistakable artifact of Norse culture transplanted to the West Coast.

The boat is 18' 10" in length and 5' 3" in beam, and is lapstrake-planked in broad cedar planks, fastened with copper rivets in the Scandinavian manner. The stern is a fairly broad round-bottomed transom of oak. The bow is a small transom only about 8" wide, raking sharply forward, and carried high by a marked rise in the forward sheer. A plank keel is notched into the bottom of each transom, and is rockered up forward to meet the transom. The forward transom is so small and so high that the effect is almost of a sharp bow. The framing and backbone are of oak, and four thwarts are fitted, with three rowing stations.

There is no evidence of a sailing rig. The connection of the hood-ends of the planking is unusual: square-section copper rivets are driven diagonally through the beveled edges of the transoms and are riveted with roves on the inner face of the transom. It's a crude-looking mechanism, but seemingly effective. The finish is somewhat crude overall, suggesting that it was more likely built in a company yard than in an established boat shop.



The Tule Splitter

The Tule Splitter, a little flat-bottomed double-ender designed for duck hunting among the tule reeds of the lower Sacramento River Delta, is about as simple as a boat can be. It has only a single bottom board and a two single plank sides. The remarkable thing about the boat is the width and quality of these three redwood planks. The bottom plank is a full 24 1/2" wide and 13' long, and the side planks are 1/2" by about 18" wide - all old-growth, tight-grained lumber. With planks like this, the effect is almost like building in plywood, and the construction of a boat can be very simple.

This example was found around 1990, sitting on a levee top in Collinsville, a river fishing town in Solano County. Collinsville is almost a ghost town now, its few houses occupied by the older generation of the old Italian commercial fishing families whose livelihood was cut off in 1957 when the river salmon fishery was shut down. The tule splitter belonged to the Vitalie family. Frank Vitalie had built it sometime around 1920 and used it for hunting around the sloughs and islands of the Lower Sacramento Delta. Frank was pleased that the park saw the importance of the boat and agreed to donate it to the park's small craft collecitons.

The wide bottom board is about an inch thick, and is rockered by about two inches. The ends of the bottom are sharply pointed, and the side planks rap around the bottom and are edge-nailed to it, without any chine timber. Stem and stern posts are simple triangular-section blocks, raked sharply fore and aft, with the hood ends of the side planks nailed from either side. The side planks flare somewhat amidships, giving the boat a beam of 2' 10", flaring from the 24 1/2' bottom plank. A forward and after beam are nailed in at sheer level and three floor timbers, about 2" x 3", cross the bottom. Rudimentary top frames of 1" x 5" plank are nailed to the side planks, but do not connect with the floor timbers. All nails are galvanized iron. The effect is a rough but practical one-man boat, with very sharp ends, and the limited stability of a canoe.

The boat is in the tradition of the Cajun Pirogue, but in this form is apparently unique to the Sacramento Delta. In addition to the sculling oar, regular sweep oars were sometimes fitted in rowlocks on outriggers made from barn hinges, so that good distances could be covered rowing in the manner of a shell. The Tule Splitter in our colleciton shows no evidence of rowlocks ever having been fitted. In competent hands, on the relatively sheltered waters of the lower Delta, the tule splitter would be a sweet little boat for poking through the reed banks.



The Power Cod Fishing Dory

The cod fishing dory is one of the most seaworthy small boats ever developed. A very simply constructed boat, the dory has a flat bottom with straight flaring sides, a sharp raking bow, and a narrow V-shaped transom. While initially somewhat tender due to the relatively narrow bottom, dories gain stability as they are loaded down and with a moderate load of fish and gear, there is no better sea boat for its size.

The schooner C.A. Thayer ended her commercial career as a cod fisherman, making yearly trips to the rich cod banks in the Bering Sea, north of the Aleutian Island chain. Even in the summer, this is a hard and dangerous part of the ocean, cold and foggy, with heavy seas and winds always ready to trap the unwary. Fishing was still done in the traditional manner developed on the Grand Banks of the Atlantic Coast, hand-lining from dories, each boat with a lone fisherman venturing out from the schooner mother ship each day, with luck to return with a boat full of cod.

Dories were traditionally fitted with a single pair of oars and a simple spritsail sailing rig. By the middle of the nineteenth century dories were being produced as standardized stock boats by specialized shops in Massachusetts and Nova Scotia. On the East Coast, the dories worked under oars and sail until they were superseded by motor trawlers in the 1930s and 40s.The power dory, as it had developed by the end of the 1920s, was a very efficient little boat, able to carry as much as two tons of fish, at good speed, with reasonable safety.
