NPS Geodiversity Atlas—Walnut Canyon National Monument, Arizona

Geodiversity refers to the full variety of natural geologic (rocks, minerals, sediments, fossils, landforms, and physical processes) and soil resources and processes that occur in the park. A product of the Geologic Resources Inventory, the NPS Geodiversity Atlas delivers information in support of education, Geoconservation, and integrated management of living (biotic) and non-living (abiotic) components of the ecosystem.

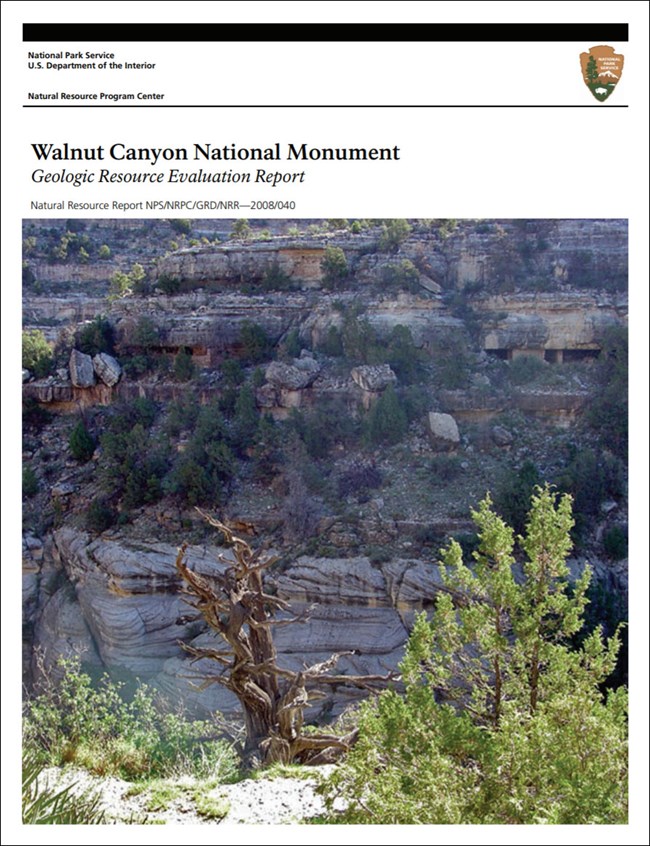

image of walnut canyon gri report cover with photo of cliff dwellings
In-depth geologic information is contained in the baseline inventory products of the Geologic Resources Inventory, see table below.


Walnut Canyon National Monument is located just 16 km (10 mi) from downtown Flagstaff in Coconino County, Arizona. Authorized on November 30, 1915, Walnut Canyon encompasses nearly 1,428 hectares (3,529 acres) and protects a high concentration of well-preserved Northern Sinagua cliff dwellings, pit houses, and other cultural resources situated in deeply incised canyon topography. Cliff dwellings in WACA are located in the upper third of Walnut Canyon, named after the Arizona walnut trees that grow along the floor of the canyon (Graham 2008). The Northern Sinagua people constructed the cliff dwellings and pit houses about 800 years ago in shallow alcoves of relatively soft sandstone nestled under harder, more resistant ledges of limestone. The cliff dwellings and rich biological communities in WACA hold traditional cultural importance for numerous American Indian tribes in the American Southwest.

Geologic Setting

The geology of Walnut Canyon National Monument is predominantly controlled by Walnut Canyon and the entrenched segment of Walnut Creek that has incised into relatively horizontal layers of Paleozoic limestone and sandstone. Walnut Canyon averages 402 m (1,320 ft) wide from rim-to-rim and reaches a maximum depth of 122 m (400 ft) at the western (upstream) boundary (Graham 2008). Incision of the canyon has revealed resistant gray limestone of the Permian Kaibab Formation in the upper walls and rim, with light tan, cross-bedded sandstone exposures of the Toroweap Formation and Coconino Sandstone underneath (Figure 135; Graham 2008). Sandstones such as the Coconino Sandstone not only served as protective alcove shelters for the Northern Sinagua but represent an important regional aquifer.

Regional Geology

Walnut Canyon National Monument is a part of the Colorado Plateaus Physiographic Province and shares its geologic history and some characteristic geologic formations with a region that extends well beyond park boundaries.

Maps and Reports

geologic map of the park cropped thumbnail view

The Geologic Resources Inventory produces digital geologic maps and reports for more than 270 natural resource parks. The products listed below are currently available for this park, check back often for updates as many maps, reports, and posters are still in progress.
  • Scoping summaries are records of scoping meetings where NPS staff and local geologists determined the park’s geologic mapping plan and what content should be included in the report.
  • Digital geologic maps include files for viewing in GIS software, a guide to using the data, and a document with ancillary map information. Newer products also include data viewable in Google Earth and online map services.
  • Reports use the maps to discuss the park’s setting and significance, notable geologic features and processes, geologic resource management issues, and geologic history.
  • Posters are a static view of the GIS data in PDF format. Newer posters include aerial imagery or shaded relief and other park information. They are also included with the reports.
  • Projects list basic information about the program and all products available for a park.

Source: Data Store Saved Search 3192. To search for additional information, visit the Data Store.

NPS Soil Resources Inventory project has been completed for Walnut Canyon National Monument and can be found on the NPS Data Store.

Source: Data Store Saved Search 3217. To search for additional information, visit the Data Store.

canyon view
Walnut Canyon exhibits layered marine limestone above cross-bedded aeolian sandstone.
