Landscapes of Change: Cape Hatteras Lighthouse

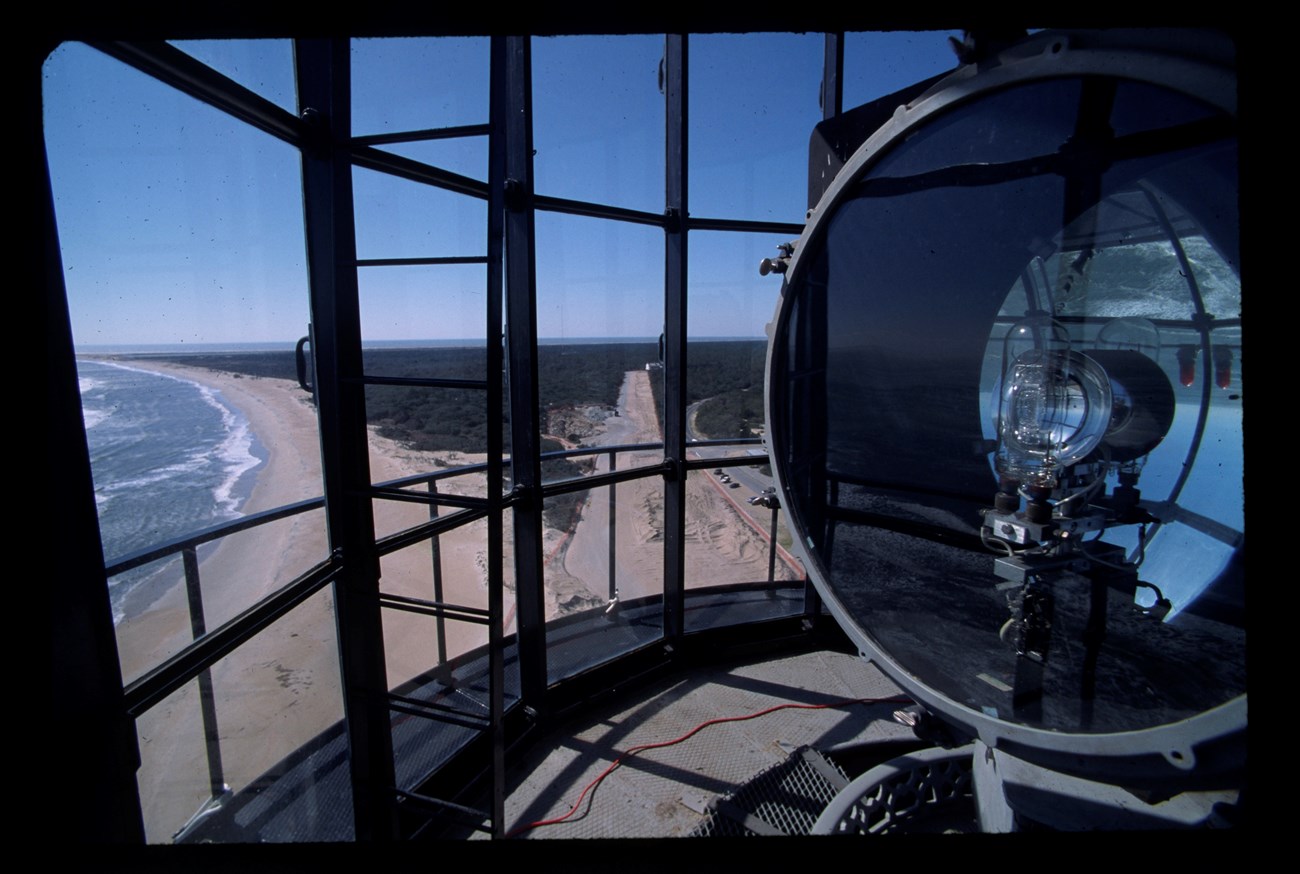

A glimpse of the move path from the light chamber atop the Cape Hatteras Lighthouse on March 1st, 1999.

NPS

The National Park Service mission ensures the preservation of natural and cultural resources for future generations. These resources vary in type, material, and size. Many times, this effort to preserve is met by complex and challenging circumstances, and big decisions must be made.

With shoreline erosion threatening the Cape Hatteras Lighthouse, the decision was ultimately made to move the 4,830 ton brick structure inland. In the summer of 1999, the NPS undertook a lighthouse move on a scale never before attempted in order to preserve the historic structure. Aspects of the light station cultural landscape were also preserved through the transformation.

Cape Hatteras Light Station

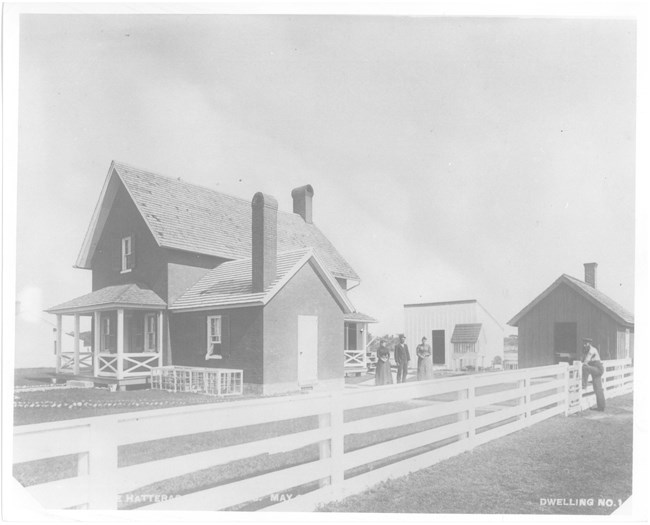

Principal Keeper's Quarters at Cape Hatteras in 1893

NPS / Cape Hatteras National Seashore

The Cape Hatteras Lighthouse was built on Hatteras Island in Buxton, North Carolina, in 1870. At 193 feet in height, it was the tallest brick structure at time of construction and remains the tallest brick lighthouse in the United States. The black and white spiraled lighthouse was a crucial navigation aid along a hazardous stretch of the Atlantic Coast. The lighthouse is an iconic part of the Cape Hatteras Light Station, which includes three additional historic structures: the Double Keepers' Quarters, Principal Keeper's Quarters, and Oil House.

The barrier islands of the Outer Banks have experienced a gradual westward migration over the past several thousand years, with sand being redeposited during storm events from the ocean side to the sound side. When it was constructed, the Cape Hatteras Lighthouse was about 1500-1600 feet from the shoreline, but by the 1970s, it measured only 120 feet from the water. Threatened by continuous shoreline erosion, the lighthouse would be lost to the ocean without drastic mitigation efforts.

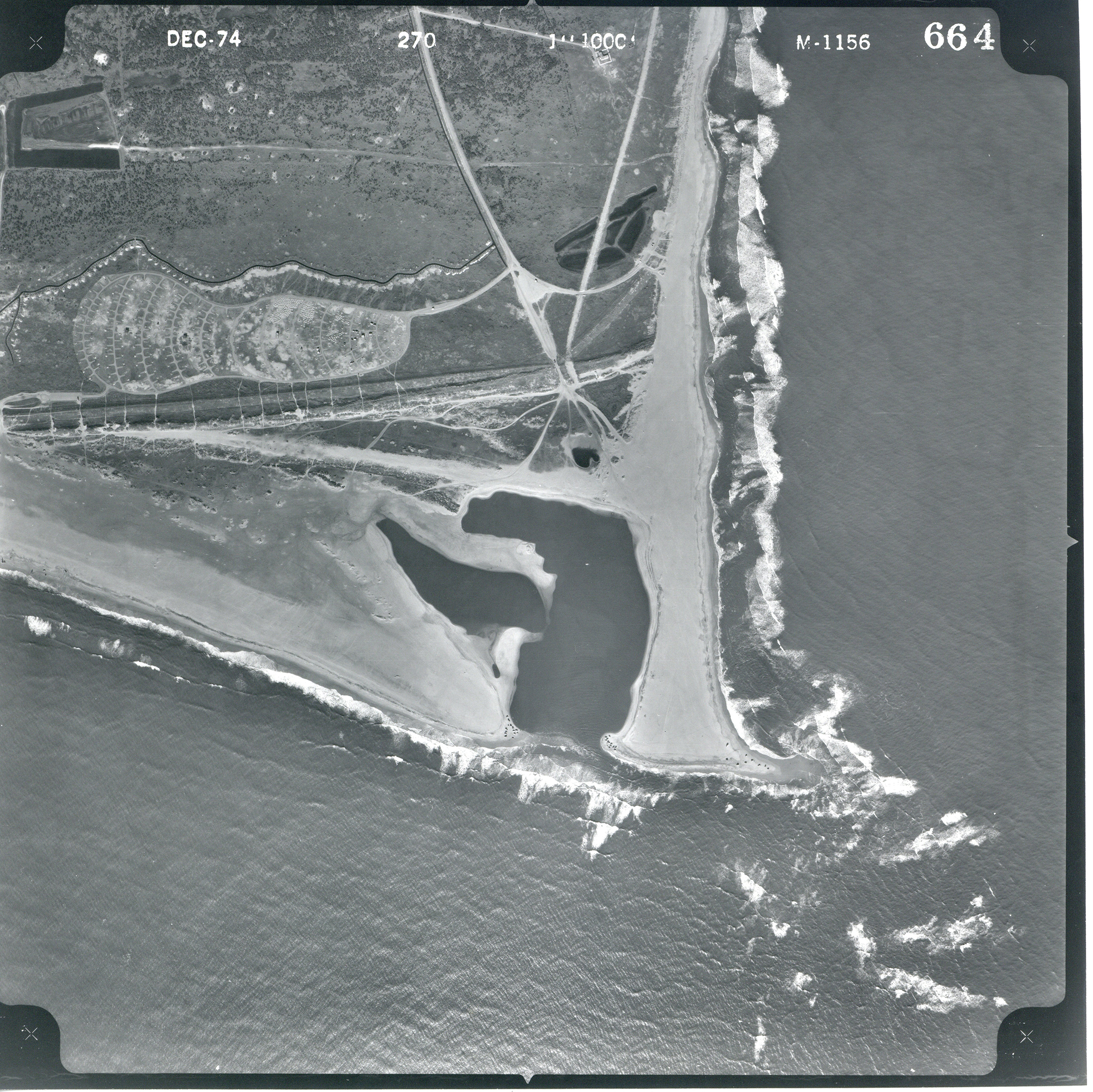

Aerial photography of Cape Hatteras, December 1974

NPS

Addressing Coastline Erosion

Attempts had been made to slow coastline erosion on Hatteras Island around the lighthouse in the 1930s, with additional stabilization efforts in the 1960s. Nonetheless, the sandbar that separated the sea from the lighthouse continued to diminish. In 1975, the lighthouse was closed to the public when cracks were discovered in the tower. In 1980, as the shore continued to erode and the structure was approximately 50 feet from the water, the NPS began concerted planning efforts, guided by the National Environmental Policy Act, to address shoreline erosion around the Cape Hatteras Lighthouse. Initially, relocation of the structure was discussed and quickly dismissed. Following public meetings and consideration of the best options, construction of a sea wall revetment was chosen as mitigation.

Further discussion and study led to several possible long term solutions to protect the lighthouse. Options included reinforcement of the existing jetties to reduce the impact of waves on the island, construction of a seawall around the lighthouse, or moving the structure inland. Congress ultimately passed a relocation budget in 1998 for the “move of the millennium” to undertake a lighthouse repositioning project on an unprecedented scale.

The choice to move the lighthouse was determined to be the option with the least environmental impact and greatest protection for the resource, complying with the NPS mission of both historic preservation and coastal protection. Nonetheless, the decision was highly contested and closely scrutinized by the public and other stakeholders, who feared that the lighthouse would not survive the move.

The Move of the Century

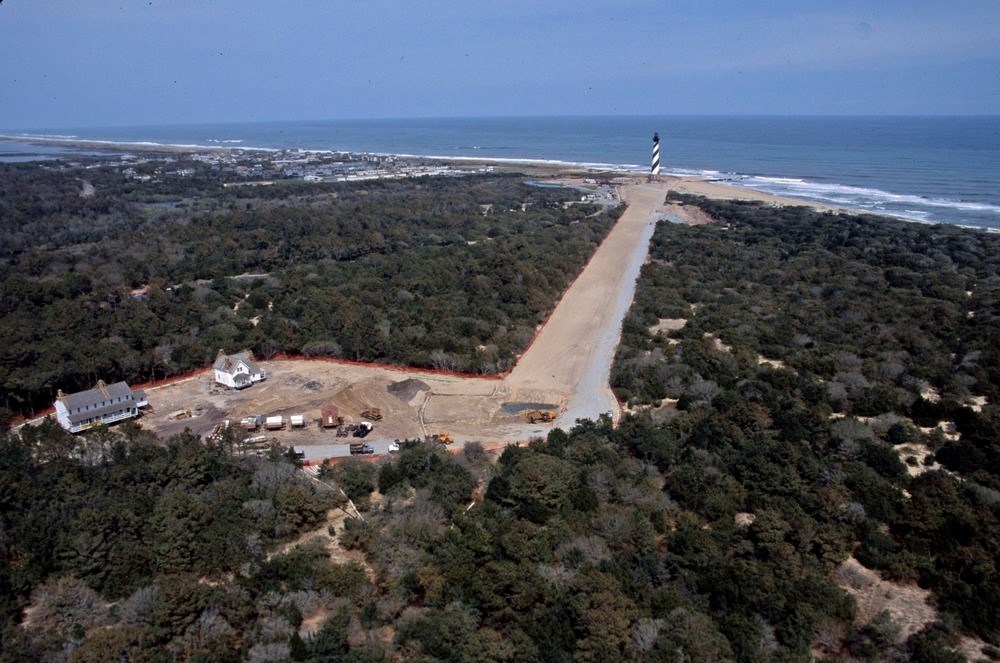

Overview of the new site, the move path, and the old location of the Cape Hatteras Lighthouse on April 6, 1999.

NPS

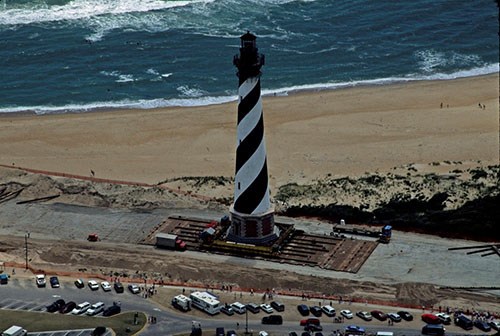

Driving the lighthouse along the beach to its new location on June 24, 1999.

NPS

After many years of planning, the lighthouse realignment got underway in 1999, when the structure was a mere 15 feet from the shore. The lighthouse was removed from its original foundation and transferred to a transport support system of 400 tons of steel with hydraulic jacks and steel beams. Push jacks pulled the frame five feet at a time as the entire system slowly made its way down a metal runway track. The tilt and vibrations of the system were continuously measured for stability by 60 sensors. Additionally, a weather station at the top of the lighthouse monitored speed and temperature. The entire move took 23 days, beginning on June 17, 1999 and arriving at its new location, where it stands today, on July 9.

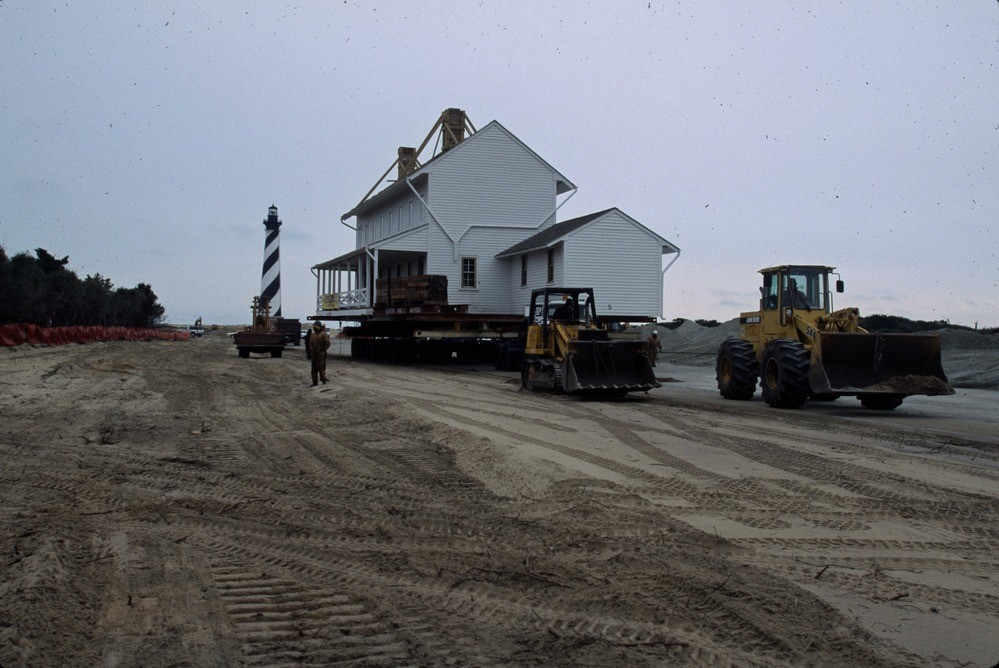

When the Cape Hatteras Light Station was relocated in 1999, the original spatial arrangements of the historic structures was maintained. Here, the Keepers Quarters is moved to its new location.

NPS

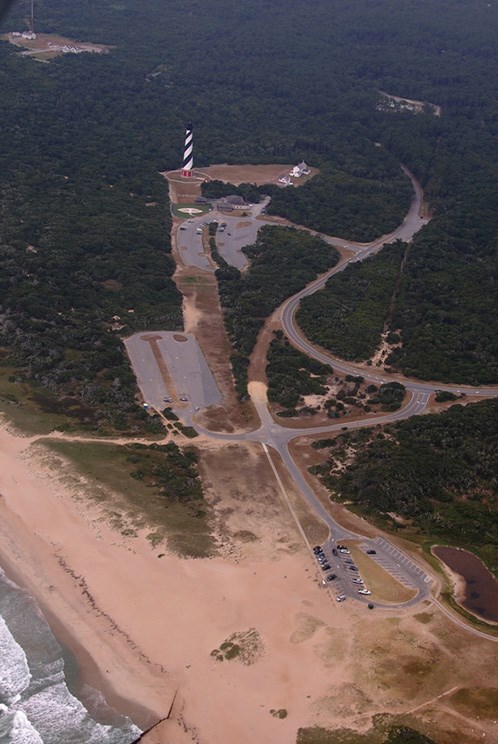

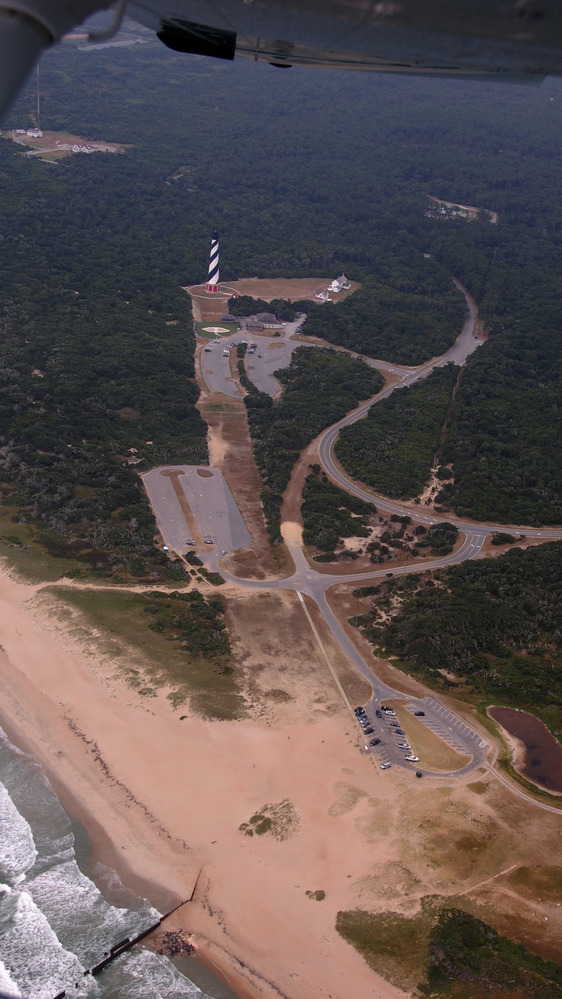

The pathway along which the lighthouse was moved was carved out of the existing trees and shrubs that grow on the sand flats. Part of this route is retained for interpretation, but native vegetation will be restored to the rest of the corridor.

NPS, 2015

The lighthouse was situated upon its new foundation 2900 feet away from where it had been constructed 129 years earlier. It is now 1500 feet inland from the ocean, the same distance as when it was originally built. The light keeper’s buildings and supporting structures of the Cape Hatteras Light Station were also relocated inland while retaining their 1870 alignment, maintaining the original spatial layout of the historic structures on the landscape.

The lighthouse was reopened to the public on November 13, 1999. The bold undertaking earned a national engineering award and the lighthouse returned to its role, now more protected from the ever-shifting shoreline. The navigational icon and marvel of engineering continues to stand as a shoreline sentinel and a focal point of the Cape Hatteras Light Station cultural landscape that was preserved through this undertaking.

While other examples of building moves can be found in previous decades and even centuries, the Cape Hatteras Lighthouse relocation twenty years ago stands out for its large scale and as a particularly complex and controversial decision in a dynamic environment. Today, the practice of moving historic structures is more common and there are also alternatives to structural moving. Increasingly, a range of strategies and approaches may be considered to respond to sea level rise, flooding, and erosion to protect vulnerable cultural resources, preserving both individual historic structures as well as larger districts or landscapes.
