The Devils River Hydro Plants

Black and white photo showing large amounts of water flowing over spillway of dam
Devils Lake Hydropower Plant during the 1954 flood.

Courtesy of Whitehead Memorial Museum

Hydroelectricity was a major factor in the economic development of the United States before, during, and after World War I. In the 1920s, southwest Texas was experiencing an ever-increasing demand for a steady supply of energy. By the mid-1920s, the Central Power & Light Company began looking to the Lower Pecos River region as an energy source for the state of Texas. The geography of the area made the Devils River the ideal choice because building on the Rio Grande would require international agreements with Mexico and the high canyon walls of the Pecos River made construction costs prohibitive. Therefore, the logical choice was the Devils River, it was near existing railway and highway corridors, it had a history of steady flow, and the topography would keep construction to a minimum. In 1927, Central Power & Light decided to construct three individual power plants along the Devils River: Devils Lake Hydro Plant, Lake Walk Hydro Plant, and Steam Plant. These facilities would become a major economic engine for regional development of the southwest region of Texas for decades to come. By this time, Del Rio, Texas was already the home to one of Central Power & Light’s top-rated power plants. However, as the population continued to increase, Central Power & Light made the decision to turn the Devils River into what would become the largest source of energy in southwest Texas. The company completed their preliminary surveys and acquired the land on which they would build in the last months of 1927. L.E. Myers Construction Company was contracted by Central Power & Light to build the three power plants on the Devils River. The company also established a camp and commissary to accommodate the builders and their families as the construction sites would be miles from Del Rio. Central Power & Light worked with West Texas Utilities to construct over two hundred miles of new transmission lines that would originate at the plants along the Devils River and connect to existing power grids about 70 miles east in Uvalde. The power grids in Uvalde connected to the San Antonio and Winter Garden districts located in Corpus Christi and San Antonio making Uvalde the hub for the largest electrical loop in Texas.


Black and white image of a partially constructed rock structure with building forms, scaffolding, and stairs around it.
Construction of the Devils Lake Power Plant, 1928

Courtesy of Whitehead Memorial Museum

The first plant was constructed 16 miles northwest of Del Rio and 10 miles above the confluence of the Devils River and the Rio Grande. Construction began in March of 1928 on the dam that would be 45 feet high and 850 feet long. The dam was constructed from limestone blocks cut from the cliffs of the Devils River and hoisted into place using an overhead crane. These massive limestone blocks had ridges cut into the edges allowing the blocks to lock into each other to increase structural integrity. As the dam neared completion in December 1928, engineers began testing on the dam’s generators that converted river flow into electricity. The first successful test of these generators occurred on December 9, 1928. Shortly after its completion, Central Power & Light established permanent housing for the plant's operators and their families.

During the initial phases of planning and construction, the dam was designated as Plant Number One, but by October 1928 that name was formally changed to the Devils Lake Hydro Plant. At the same time, Central Power & Light had already begun planning for construction of the second hydroelectric plant. Originally known as Plant Number Nine, the facility was soon renamed the Lake Walk Hydro Plant.


Black and white image of old crane structures near the edge of a rock cliff with high concrete forms and partial dam structure
Construction of Devils Lake Dam

Courtesy of Whitehead Memorial Museum

Construction on the Lake Walk Hydro Plant began in December 1928. Lake Walk Hydro Plant was constructed in an entirely different manner from the Devils Lake Hydro Plant. Builders used coffer dams to redirect the flow of water so they could pour concrete molds. Lake Walk Dam was 34 feet high and 650 feet long. The Lake Walk Hydro Plant was the smallest and most technologically advanced of the three hydropower plants on the Devils River. It featured the S. Morgan Smith turbine engine, which was the first completely automatic turbine engine used in the United States. This type of turbine proved to be incredibly reliable and was still in use when the plant was shut down in 1965. Another unique feature of the Lake Walk dam was the walkway that went through the length of the dam. Construction on the Lake Walk Hydro Plant was completed in May of 1929. After the construction of Lake Walk, housing was established for Central Power & Light employees on the west bank of the Devils River overlooking the dam.

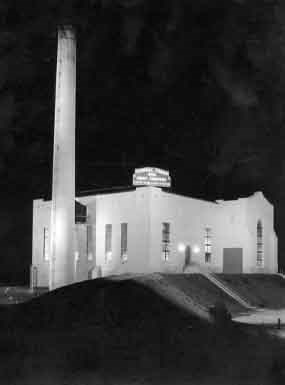

Black and white photograph taken at night with the tower and plant brightly lit.
Steam Plant at Night, 1929

Courtesy of Whitehead Memorial Museum,

The third power plant along the Devils River was known simply as Steam Plant. This power plant was located on the East side of the Devils River about 10 miles outside of Del Rio and just west of present day Southwinds Marina. CP&L had several contracts with outside companies, such as General Electric, Westinghouse Electric, and Combustion Engineering Corporation in order to construct Steam Plant. Steam Plant provided the largest amount of electricity of the three power plants. On the downside, a March 1931 study showed that the plant was also the largest single consumer of gasoline in Del Rio. In May 1930, due to the location of Steam Plant and the amount of manpower required to effectively run it, CP&L built 14 houses on the east side of the river overlooking Steam Plant to accommodate its employees and their families. Outfitted with the latest technology, the homes were continuously occupied by CP&L employees until their demolition for Amistad Reservoir in the 1960s. CP&L was responsible in other ways for the development of the communities surrounding the Devils River hydropower plants. The company opened several retail outlets in the area that sold electrical appliances. In addition to this, classes were held in the community on cooking and cleaning using the appliances CP&L sold.


Cement building surrounded by water with debris midway up the sides
Steam Plant after the 1954 flood.

Courtesy of Whitehead Memorial Museum

During the years following the construction of the power plants, the area saw several major floods. In 1932, shortly after the completion of Steam Plant, a flood occurred during which nine employees were trapped on its roof. Additional major floods having serious impacts on the community occurred in 1948 and 1954. The 1954 flood inflicted extensive damage on all three of the power plants. Repairs were made over the next several months, and the power plants remained operational until 1965. With the construction of Amistad Dam and power plant in the 1960s the three old CP&L plants were no longer needed. In December 1965, all three CP&L power plants were shut down beginning with the Devils Lake Hydro Plant, followed by Steam Plant, and ending with Lake Walk Hydro Plant. The only plant that held a formal closing ceremony was Steam Plant, the crown jewel of the three plant operation. The demolition of the 80+ foot tower, the tallest man-made structure in the region, occurred with much fanfare on August 28, 1967. Although Amistad Dam is more technologically advanced, it produces only a fraction of the energy that the original three CP&L dams were able to produce.


Color image of cement construction behind a sign stating "Amistad Dam being constructed jointly by the United States and Mexico under the supervision of International Boundary and Water Commission."
The construction of Amistad Dam in 1965.

NPS

In 1969, Amistad Dam was dedicated by U.S. President Richard Nixon and Mexican President Diaz Ordaz, and the lake slowly began to fill over the following years. The area known as Lake Walk became completely inundated once the lake reached its operating pool level of 1117 feet above mean sea level. In 1998, southwest Texas was in the midst of a serious drought and the elevation of the lake dropped nearly 60 feet below the operating pool level. During that summer, the National Park Service conducted an archeological survey in the vicinity of the old Lake Walk. Prior to field work, old real estate records, maps, and files were reviewed to determine block and lot numbers as well as the names of former land owners at Lake Walk. In most cases, all that remained of the former residences and the first Air Force Marina were concrete slabs and a few patios and sidewalks. The Devils River was the first major power source for southwest Texas. The electricity generated by the three historic plants on the river was the catalyst for decades of regional growth. Much of the development Del Rio and the surrounding communities is owed to the vision and hard work of the engineers and employees of the Central Power & Light Company. Today, all that remains of these historic structures and associated communities lies quietly below the waters of Lake Amistad.
