Machine Shop: Richmond Shipyard No. 3

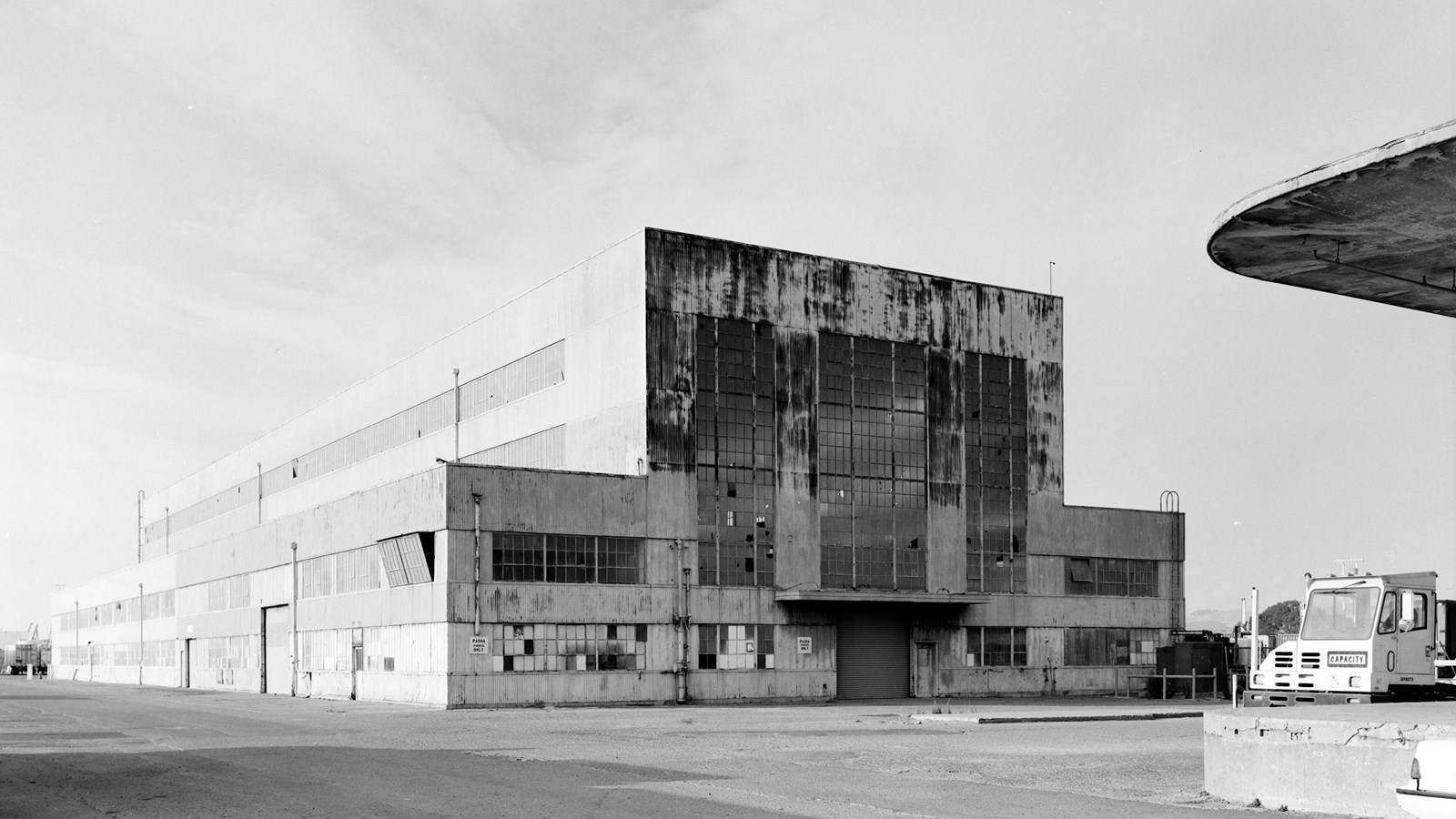

Machine Shop: Richmond Shipyard No.3

Lowe, Jet, Library of Congress, 2002.

Quick Facts

Location:

Shipyard No.3, Richmond, CA

Significance:

National Historical Park

Historic Shipyard Machine Shop

Part of the Historic Kaiser Shipyard No. 3
The machine shop at Kaiser Shipyard 3 is a remarkable testament to the industrial ingenuity and advanced manufacturing capabilities of its time. As one of several outfitting buildings in the shipyard, the machine shop played a critical role in the assembly, cleaning, and polishing of propellers and propulsion machinery, essential components for the ships constructed there.

Inside the machine shop, workers had access to the most modern tools and equipment available during the war years. Among these was a state-of-the-art lathe capable of turning sections of steel up to fifty feet in length. This impressive piece of machinery exemplifies the scale and precision required to meet the demands of wartime ship production.

The machine shop was a hive of activity, where skilled laborers applied their expertise to ensure that every component met the stringent quality standards necessary for naval operations. The shop's equipment allowed for the meticulous crafting and finishing of vital ship parts, contributing significantly to the efficiency and effectiveness of the shipbuilding process.

Remarkably, traces of the original equipment and "jig patterns" remain throughout the building to this day. These remnants provide a tangible connection to the past, offering insight into the methods and technologies employed during the height of the shipyard's operations. The jig patterns, in particular, illustrate the precision and planning involved in the production process, serving as templates for the accurate replication of complex parts.

The preservation of the machine shop and its historical artifacts offers a unique opportunity to explore the industrial heritage of the WWII era. Visitors can gain a deeper appreciation for the technological advancements and skilled labor that were pivotal in supporting the war effort. The machine shop stands as a monument to the remarkable achievements of the workers and engineers who contributed to the success of the Kaiser shipyards, reflecting the broader story of American industrial might during the Second World War.

As we look upon the machine shop today, we are reminded of the ingenuity, determination, and collaborative spirit that defined this era. The building not only represents a significant chapter in Richmond's history but also serves as an enduring symbol of the innovation and hard work that were crucial to the Allied victory. Through its preservation, the machine shop continues to educate and inspire future generations about the critical role of industrial production in wartime efforts.

Description of the Historic Machine Shop Building at Kaiser Shipyard 3

Note: Visitors may view this historic building from the outside, only.

The historic machine shop building at Kaiser Shipyard 3 is a large, imposing structure that reflects the industrial architecture of the WWII era. The building is characterized by its extensive use of steel and concrete, materials chosen for their durability and strength, which were essential for supporting the heavy machinery and industrial activities housed within.

The façade of the building showcases a series of large, multi-pane windows that allow natural light to flood the interior, reducing the need for artificial lighting during the day. These windows, although weathered and showing signs of age, remain a significant feature of the building's design, providing a glimpse into the bustling activity that once took place inside.

The exterior walls, marked by their utilitarian design, display the wear and tear typical of an industrial building that has stood for decades. The surfaces are adorned with patches of rust and peeling paint, adding to the building's historic charm and authentic appearance.

At the front, a prominent entrance is flanked by tall windows, creating a sense of grandeur and importance. This entrance likely served as a gateway for workers and materials, facilitating the constant flow of activity necessary for the shipbuilding processes.

The machine shop's sheer size is evident in its sprawling layout, designed to accommodate the large-scale machinery and the numerous workers who operated them. The building's height and length are particularly notable, with the structure extending several stories high and occupying a substantial footprint, reminiscent of the vast industrial capabilities required during the war.

• Audio Stop: Machine Shop




  This audio program is a brief look at the Machine Shop building in Shipyard No. 3, a part of the WWII Home Front history.

  Credit / Author:

  NPS/Luther Bailey

  Audio Transcript

  The machine shop is part of several outfitting buildings. Propellers and propulsion machinery were assembled, cleaned, and polished there. The machine shop housed the most modern tools and equipment of the day, including a lathe that could turn sections of steel fifty feet in length. Traces of the original equipment and “jig patterns” remain throughout the building to this day.
