PECOS
From Folsom to Fogelson: The Cultural Resources Inventory Survey of Pecos National Historical Park |
|
APPENDIX D:
CERAMIC RECORDING
PECOS ARCHEOLOGICAL SURVEY

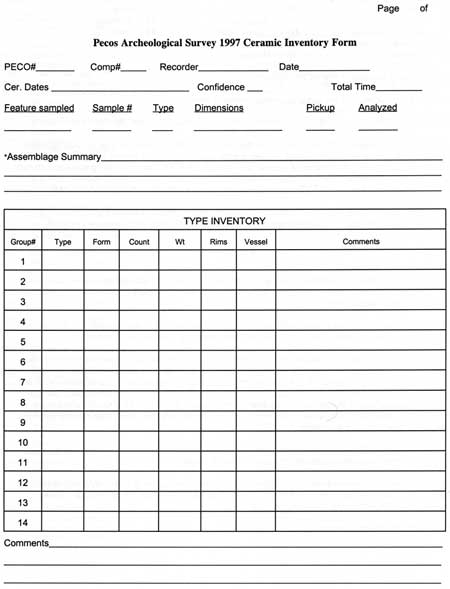

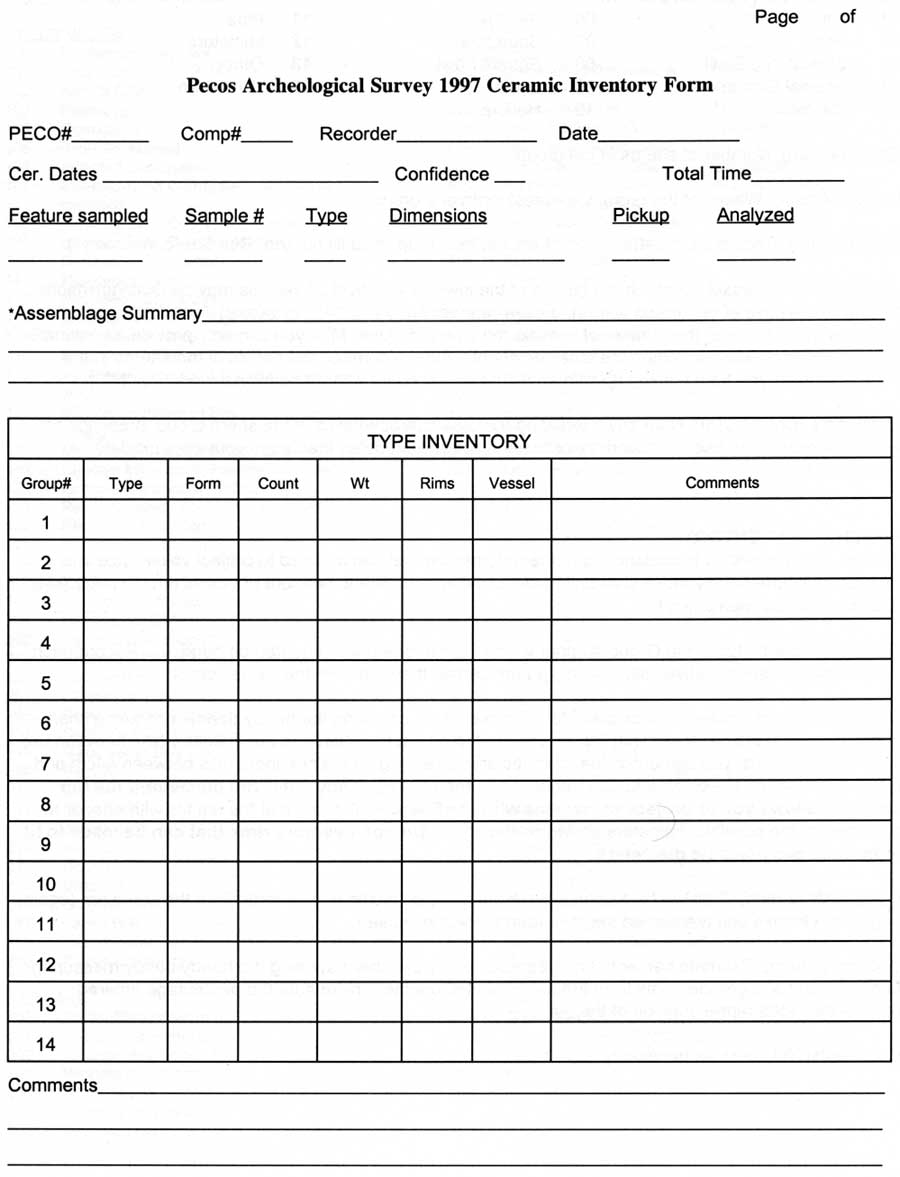

1997 CERAMIC INVENTORY FORM MANUAL/CODING GUIDE
Component# (1 num): Use component number as assigned on the main site form.
Recorder (3 char): Enter initials of person(s) doing the ceramic analysis
Date (7 - date): Recording date by day, first 3 letters of month, last two digits of year (10JUN93).
Total Time (2 fields 2 num ea): Total time it took for ceramic analysis, enter hours:minutes (2:30). This is analysis only. NOTE: During the initial stages of the survey, we will want to know how much time we take to set up and collect the grids and/or samples - write this time down in parenthesis next to total time (only one analyst needs to do this).
Cer. Dates (4 fields 5 char ea): Ceramic dates determined as a result of the analysis (can enter two sets if applicable).
Confidence (1 char): Confidence in the date indicated by the ceramic analysis.
1 LowFeature sampled (5 char): The type and number of the refuse scatter that was sampled (e.g. 83-01).
2 Medium
3 High
Sample# (2 num): The number of the sample area. The sample areas will be numbered sequentially per refuse scatter (i.e., 83-01 might have two samples: 01 and 02; and 80-03 might have one sample: 01).
Sample Type (1 num)
1 Lithic and ceramicDimensions (2 num fields - 4 digits w/1 decimal ea. - 000.0 x 000.0): dimensions of the sampled area, length x width to the nearest tenth of a meter. If sample consists of multiple grid units show number of units in parenthesis followed by the dimensions of the individual units; e.g., (5) 2 x 2m.
3 Ceramic only
7 Other
Pickup (3 num): Total number of artifacts picked up in the sample collection.
Analyzed (3 num): Total number of artifacts analyzed from sample. Do not include diagnostics or other sherds of interest that might have been looked at outside the sample area.
Assemblage Summary (200 char): Briefly summarize ceramic assemblage - consider discussing types, date determination, diagnostics, spatial distribution, general observations.
TYPE INVENTORY
Group# (2 num): This is filled in for you - the number serves as an identifier for all subsequent analysis.
Types (Char - 3): Ceramic typology
|
UTILITY WARES 100 Unidentifed grayware 101 Lino Gray 102 Kana'a Gray 103 Plain gray 104 Corrugated 105 Blind Corrugated 106 Indented Corrugated 107 Indented Blind Corrugated - not further specified 108 Indented Blind Corrugated - weak 109 Indented Blind Corrugated - strong 110 Clapboard Corrugated 111 Micaceous Plain 112 Micaceous Corrugated 113 Micaceous Blind Corrugated 114 Micaceous Indented Corrugated 115 Micaceous Indented Blind Corrugated - nfs 116 Micaceous Indented Blind Corrugated - weak 117 Micaceous Indented Blind Corrugated - strong 118 Micaceous Clapboard Corrugated 119 Cundiyo Micaceous Smeared Indented 120 Cordova Micaceous Ribbed 121 Pecos Striated - not further specified 122 Pecos Faint Striated 123 Pecos Heavy Striated BICHROMES 200 Unidentified Whiteware 201 San Marcial B/W 202 Kwahe'e B/W Slipped 203 Kwahe'e B/W Unslipped 204 Socorro B/W 205 Chupadero B/W 206 Santa Fe B/W Slipped 207 Santa Fe B/W Unslipped 208 Mesa Verde B/W 209 Pindi B/W 210 Galisteo B/W 211 Rowe B/W 212 Jemez B/W 213 Wiyo B/W 214 Biscuit A 215 Biscuit B 216 Sankawi'i B/C 217 Tabira B/W 218 Tabira Plainware 219 Biscuit Unknown RED WARE 300 Unidentified redware 301 Puerco Black-on-red 302 Wingate Black-on-red 303 Wingate Polychrome 304 St Johns Black-on-red 305 St Johns Polychrome 306 Heshotauthla Poly |
POLYCHROMES APACHE 400 Unidentified Polychrome 401 Sakona Polychrome 402 Tewa Polychrome 403 Tewa Black-on-red 404 Late Tewa Polychrome 405 Pojoaque Polychrome 406 Puname Polychrome 407 Ashiwi Polychrome 408 Gobernador Polychrome 409 Ogapoge Polychrome 410 San Pablo Polychrome 411 Powhoge Polychrome PLAIN WARES 500 Los Lunas Smudged 501 Potsuwi'i 502 Undecorated red 503 High polish undecorated red 504 Plain Red 505 Plain Black 506 Kapo/Tewa Black 507 Unknown plain polished GLAZES 600 Unidentified Glazeware 601 Unidentifed G/r 602 Unidentifed G/y 603 Unidentified G/p 604 Los Padillas G/p 610 Glaze I/A- undifferentiated 611 Agua Fria 612 Cieneguilla GI/y 613 Cieneguilla G/p 614 Sanchez G/r 615 Sanchez G/y 616 Sanchez G/p 617 San Clemente G/p 620 Glaze II/B - undifferentiated 621 Largo G/y 622 Largo G/r 623 Largo G/p 624 Medio Polychrome 630 Glaze III/B/Espinosa G/p 631 Glaze III Red 632 Glaze III Yellow 640 Glaze IV/D/San Lazaro G/p 650 Glaze V/E - undifferentiated 651 Pecos G/p 652 Puaray G/p 653 Escondido G/p 654 Glaze V - Late 660 Glaze VI/F - undifferentiated 661 Kotyiti G/r 662 Kotyiti G/y 663 Kotyiti G/p 710 Ocate Micaceous 711 Cimarron Micaceous 712 Perdido Plain 713 Dismal River UNKNOWN 999 Just Unknown |
Form (Char - 2): Vessel shapes/form
|
01 Jar 02 Bowl 03 Shouldered Bowl 04 Special Closed 05 Canteen |
06 Seed jar 07 Soup bowl 08 Square bowl 09 Ladle 10 Handle |
11 Pipe 12 Miniature 13 Other 99 Unknown |
Count (4 num): Number of sherds in the group
Weight (4 num): Weight of the group to nearest tenth of a gram
Rims (4 num): Record the number of rim sherds in the group (also fill out the 'Rim Sherd Inventory").
Vessel (2 num): Vessel count - in the course of the inventory, individual vessels may be distinguishable (mostly in the case of decorated wares). Follow number entry with "A" (for actual) if you know, or can project with confidence, the number of vessels represented. Use "M" if you can only provide an estimate of the number of vessels. When the time constraints and the number and nature of the sherds in the sample prevent you from coming up with an actual vessel count without additional work use "M".
Comments (Chars - 200): Note any interesting features/characteristics of the sherd group, presence of worked sherds. Can use to show diagnostics and associated dates that led to your ceramic date assignment.

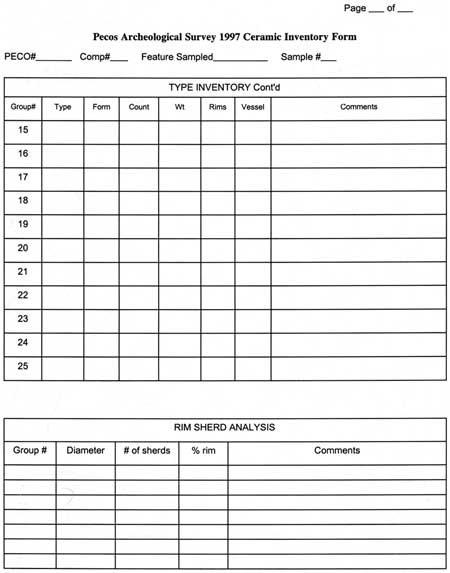

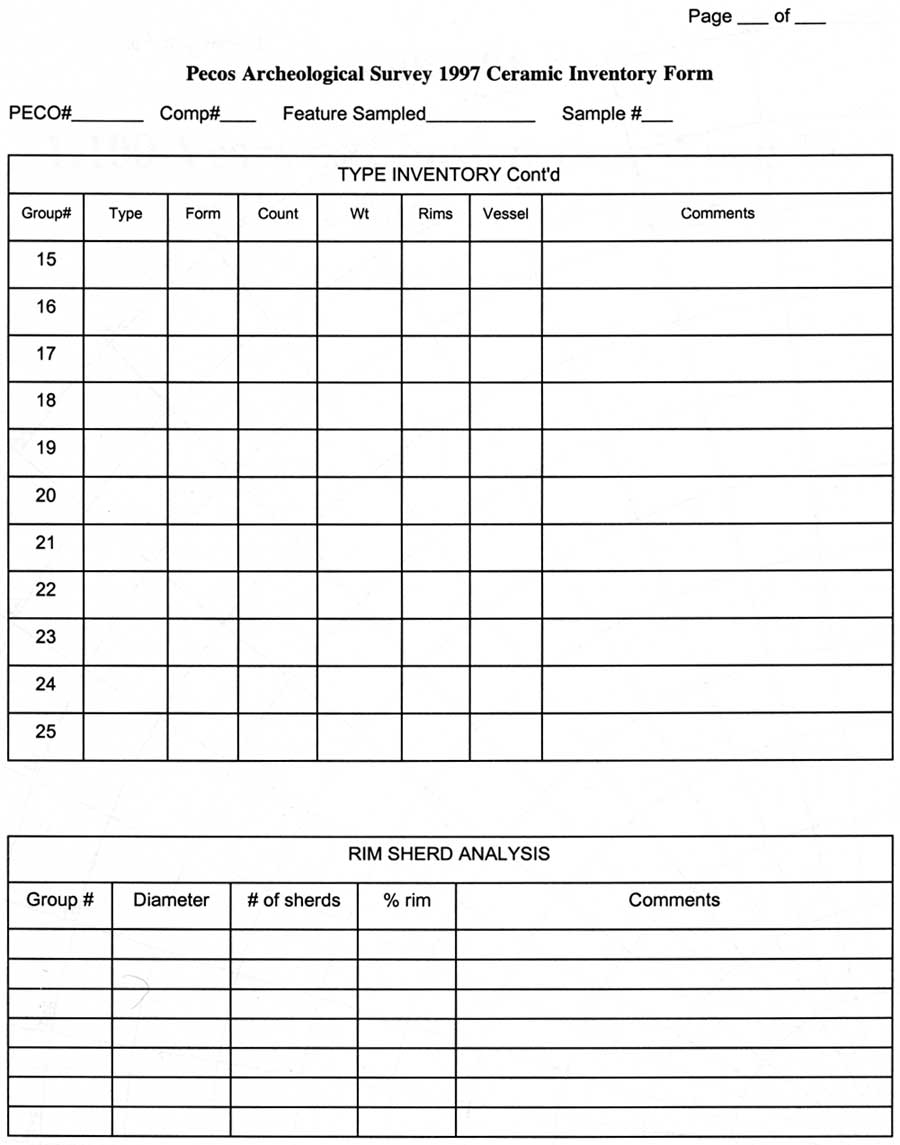

RIM SHERD INVENTORY
The rim sherd inventory is designed to gather information that can be used to project vessel size and function. Document only those sherds that can provide a confident measure of vessel rim diameter (see "Diameter" discussion below)
Group # (2 char): Enter the Group # under which this rim sherd was counted on page 1. Record each measurable rim sherd individually unless you are certain they are from the same vessel.
Diameter (2 num): Project interior diameter of vessel rim in cm using the handy dandy measuring chart - match the arc of the rim sherd with the arcs illustrated on the rim chart (if a rim diameter falls between two illustrated rim sizes, you can enter the intermediary value; e.g., if the rim sherd falls between 44cm and 48cm as shown on the chart, you can "round" your entry to 46). Only enter rim diameter if the rim sherd(s) allows you to project vessel size with confidence - if the arc of the rim fits with one, or at most two, of the possible diameters shown on the chart. Do not inventory rims that can be made to fit more than two possible diameters.
# of sherds (2 num): This will be 1 unless you have grouped multiple rim sherds from the same rim (again, only group them if you are certain they are from the same vessel).
% of rim (3 num): Estimate percent of rim represented by the sherd(s) using the handy dandy measuring chart. If you have grouped rims from the same vessel together, make sure the percentage entered reflects their total representation of the rim
Comments (200 char): as necessary.
(click on images for an enlargement in a new window)
