Section II — Life on the South Dakota Plains: Before, During, and After Minuteman

Chapter 4:
Chapter 4: Delta-01 and Delta-09 (1960s—80s) (continued)
diagram

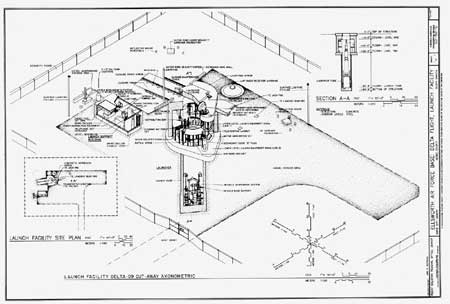

Plate 49. Site plan and cut-away view of Delta-09 Launch Facility (Library of Congress, Prints and Photographs Division, Historic American Engineering Record, Reproduction Number HAER SD-50-C-sheet 1) (click on image for an enlargement in a new window)

Delta-09 Launch Facility
Plate 50. Topside view of Delta-09 Launch Facility with missile launcher and personnel access hatch (Photograph by National Park Service)

access ladder into missile launcher
Plate 51. Personal access ladder into missile launcher, Delta-09 (Library of Congress, Prints and Photographs Division, Historic American Engineering Record, Reproduction Number HAER SD-50-C-24)

Delta Flight missile
Plate 52. A Delta Flight missile being emplaced in the Transporter Erector (Library of Congress, Prints and Photographs Division, Historic American Engineering Record, Reproduction Number HAER SD-50-C-18)
