CHAPTER FIVE:
OVERVIEW OF HISTORICAL MILITARY ARCHITECTURE AT POINT LOMA (continued)
|

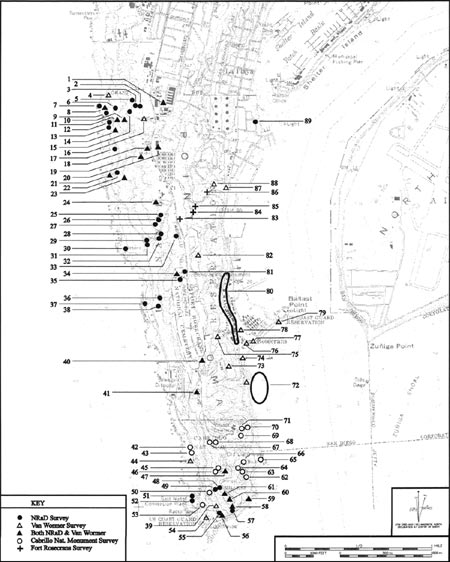

Figure 18: Point Loma Military
Reservation showing American Army identified historic resources,
including potential archeological deposits, with key to inventory
surveys (Ronald May map). (click on image for an enlargement in a new
window)
|
Key to U.S. Army Era Historic Resources Map
|
Map Number | NRad Number |
Van Wormer Number | Cabrillo Number |
Description |
|
1 | A-02 | H-33 | | Naval Radio Station |
2 | E-15 | | | Ground Attack Defenses |
3 | E-15 | | | Ground Attack Defenses |
4 | | H-01 | | Ground Attack Defenses |
5 | E-15 | | | Ground Attack Defenses |
6 | D-02 | | | Utility Structure |
7 | E-01 | | | Ground Attack Defenses |
8 | D-01 | H-02 | | Battery Gillespie |
9 | D-02 | | | Utility Structure |
10 | D-03 | H-04 | | Temporary (wooden) Base End Station for Battery Gillespie |
11 | B-01 | H-05 | | Searchlight |
12 | B-02 | | | Searchlight |
13 | E-03 | | | Ground Attack Defenses |
14 | B-03 | H-06 | | Searchlight and Powerhouse |
15 | E-16 | | | Fire Control Structure |
16 | | B-03 | | .30-caliber machine gun emplacement |
17 | E-04 | | | Battery |
18 | B-07/E-17/E-18 | H-08 | | Fire Commander's Station in WWI; Battery and Harbor Command Post in WWII |
19 | D-06 | H-09 | | Combined Battery 1 Command and Base End Station |
20 | B-06 | H-07 | | Battery Whistler |
21 | E-06 | H-11 | | Battery Woodward |
22 | E-05 | | | Battery Support |
23 | B-04/B-05 | H-10 | | Base End Station and Battery Command Station |
24 | D-07 | H-12 | | Battery Strong |
25 | D-08 | | | Fire Control Structure |
26 | D-09 | | | Fire Control Structure |
27 | E-19 | | | Site Feature |
28 | H-07 | | | Site Feature |
29 | E-08 | | | Site Feature |
30 | E-08 | | | Site Feature |
31 | E-07 | | | Site Feature |
32 | E-07 | | | Site Feature |
33 | E-20 | | | Ground Attack Defenses |
34 | D-10 | H-13 | | Harbor Defense Command Post |
35 | E-22 | | | Ground Attack Defenses |
36 | D-04 | | | Searchlight |
37 | D-05 | | | Searchlight |
38 | H-09 | | | Site Feature |
39 | | H-17 | | Unidentified foundation, possible water tank location |
40 | E-23 | H-24 | | Plotting Room, Battery Ashburn |
41 | H-24 | H-14 | | Battery Ashburn |
42 | | | 15 | Searchlight Shelter |
43 | | | 16 | Generator Station |
44 | | H-15 | | Searchlight |
45 | | | 12 | Fire Control Structure |
46 | | | 13 | Fire Control Structure |
47 | E-25 | H-23 | | Signal Station |
48 | E-26 | | | Ground Attack Defenses |
49 | E-11 | | | Utility Structure |
50 | | | 17 | Magazine |
51 | H-12 | | | Battery |
52 | H-13 | | | Searchlight |
53 | | | 14 | Battery Point Loma |
54 | | E-16 | | Point Loma Light House |
55 | H-14 | | | Fire Control Structure |
56 | A01 | H-18 | | Searchlight, Powerhouse, Radar |
57 | E-28 | | | Battery |
S8 | B-11 | H-19 | | Searchlight; Battery Cliff |
59 | B-09 | H-22 | | Base End Station and Battery Commander's Stations |
60 | E-27 | H-20 | | Battery Humphrey-Ground Attack Defenses |
61 | B-10/D-11 | H-21 | | Fort Battery Commander's and Base End Station |
62 | | | 04 | Electrical Connection Box |
63 | | | 05 | Searchlight Plant |
64 | | | 06 | Generator Plant |
6S | | | 11 | Battery Bluff |
66 | | | 07 | Searchlight Shelter |
67 | | | 03 | Fire Control Structure |
68 | | | 02 | Radio Transmission Station |
69 | | | 10 | Generator Plant |
70 | | | 08 | Fire Control Structure |
71 | | | 09 | Fire Control Structure |
72 | | H-27E | | Searchlight, Historic Dump |
73 | | E-26 | | Radio Transmission Station |
74 | | H-27D | | Battery McGrath |
75 | | H-25 | | Battery John White |
76 | | H-27B | | Batteries Gillespie & Wilkeson |
77 | | H-27C | | Battery Fetterman |
78 | | H-27F | | Mining Casemate |
79 | | H-28B | | AMTB Battery Fetterman and Fire Control Structure |
80 | | H-29 | | Fort Rosecrans Historic District |
81 | H-21 | | | Fire Control Structure |
82 | | H-30 | | Plank Walkway |
83 | | | | Fort Rosecrans Historic District non-contiguous structure |
84 | | | | Horse Burial |
85 | | | | Fort Rosecrans Historic District non-contiguous structure |
86 | | | | Fort Rosecrans Historic District non-contiguous structure |
87 | | H-32 | | La Playa-Quarantine Station-Navy Supply Center |
88 | | H-31 | | Ground Attack Defenses, Barbed Wire |
89 | A-03 | | | Target Repair Base |
|
|
Figure 19: Insignia of 115th Company,
Coast Artillery Corps, uniform collar insignia from 1902-1924. This
Company manned Battery Wilkeson 10 inch Disappearing Rifles and were
quartered at Building 139. This artifact was found with burned uniform
supplies discarded upon the refuse of Ballast Point Whaling Company,
site SDi-2,000. Photograph by John Wright, No. P:95-1515. Copyright by
Fort Guijarros Museum Association.
|
|
Figure 20: 1890 Photograph of Fort San
Diego, constructed between 1873-1974. The white buildings housed work
crews who improved the roadway sloping upward and the unfinished
artillery battery to the left of the photograph. Photograph taken by
Lighthouse Service and is not accessioned. Image is property of Fort
Guijarros Museum Foundation.
|
|
Figure 21: Ca. 1923 Aerial photograph of
1890 Ballast Point Lighthouse (on top of Keepers' House), with Assistant
Keepers' House, Fog Bell, warehouses of Ballast Point Whaling Company
(barn-like structure and removed warehouse foundations). The open space
immediately beyond the existing structures was occupied by 1860-1870s
whaler's oil-rendering tryworks, recorded as archeological site
SDi-12,953. At the top of this early photograph are four dark barracks
at the waters' edge, constructed in 1917 but demolished in 1924.
Photograph is not accessioned but image is property of Fort Guijarros
Museum Foundation.
|
|
Figure 22: Ca. 1950 Oblique Aerial
photograph of Fort Rosecrans, looking westward. World War II structures
include Quartermasters Wharf, barracks and industrial buildings in
foreground. Unoccupied flat landfill was installed in 1940. Larger
buildings in tree-lined areas are 1904-1908 Coast Artillery barracks and
officers' housing. Other buildings are 1940 Post Hospital Annex,
Nurses' Quarters, and Bachelor Officers' Quarters. In a canyon is the
1915 Battery White, a large bore mortar emplacement. A fresh-looking
hillside cut profiles the top of a 1943 Artillery Ordinance Repair
Building. Point Loma Lighthouse is barely visible in the upper left
corner of the image. Photograph C-140-7-50 and property of Space and
Naval Warfare Photographic Archives. Reproduced by Fort Guijarros Museum
Foundation.
|
|
Figure 23: Ca. 1936-1941 Photograph of
Naval Radio Station and Sound Research Laboratory (foreground) which
received the first radio message of the Pearl Harbor bombing on December
7, 1941. Looking eastward, round tanks are of the 1917-1940 Naval Fuel
Depot. Beyond, at shoreline is the Quarantine Station and to the right
is the 1907-1917 Naval Coal Depot which covers the 1822-1880s. La Playa
community, including the six British hide houses described by Dana in
Two Years Before the Mast. Copyright and property of Fort
Guijarros Museum Foundation.
|
