Chapter 2 architecture Big Juniper House was marked by two mounds, one to the east and the other to the west, with Rooms 11 and 13 at the low point between the mounds (fig. 4). Two circular depressions, directly south of the mounds, indicated probable kiva locations. South of the house mounds and kiva depressions was a large, low moundthe refuse dumpwhich was designated as South Trash Mound. Northeast of South Trash Mound and near East House Mound was another small mound, designated East Trash Mound (fig. 163).

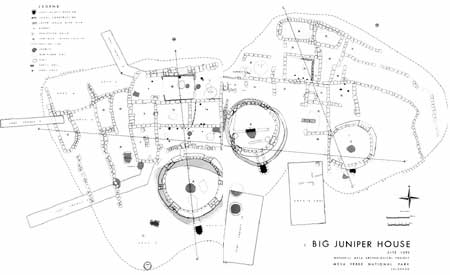

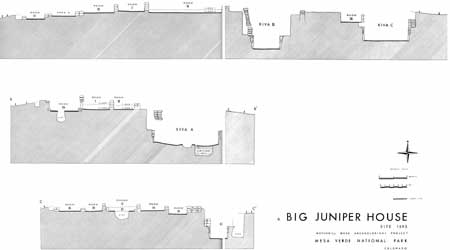

Prior to excavation, I speculated on the possibility that the two house mounds represented two sites. I soon discovered they were parts of a single site. West House Mound was completely excavated. The East House Mound was stripped to expose the room outlines and only selected rooms were fully uncovered. Artifacts found during the stripping operations are recorded in the tables of this report as East House Mound artifacts. The architecture of Big Juniper House (figs. 5 and 6) presented a scrambled picture, the result of construction during two and a half centuries of occupation. Later walls were built directly on top of earlier ones and rarely was the fill undisturbed between occupation levels. Several architectural styles were encountered: coursed stone masonry of different types, slab walls, rubble walls, and jacal walls. There were at least five stages of building activity. The construction components are listed below in chronological order, beginning with the latest (E).
Most of the unexcavated parts of the East House Mound probably belong to Component D. The East Trash Mound is also primarily of this component. The South Trash Mound was undoubtedly used during all the components. In addition to the five construction components, there appeared to be at least two occupational units of kivas and related rooms. The more clearly delineated unit includes Kiva A; Rooms 1a, 1b, 2, 3, 4, 6, 7, 8, 9, 10, 11, and probably Rooms 21-23; and Area D. This unit is composed of several functional categories: living rooms, mealing or work rooms, storage rooms, and courtyard-outdoor work areas. Units are primarily defined on the basis of proximity to kivas, wall junctures indicating times of construction, and contiguity of rooms and areas. The second unit is Kiva B; Rooms 13-15, 19, 20; and possibly Rooms 17 and 18. There does not seem to be a comparable occupation unit related to Kiva C. These units will be described under the individual rooms and kivas. Twenty rooms, or areas numbered as rooms, and three kivas were completely excavated and tested below floor level. In addition, 11 rooms or areas were outlined in the East House Mound, and miscellaneous walls, hearths, and cists scattered around the house area were excavated. The South Trash Mound was almost completely excavated by a series of parallel trenches. Only one trench was dug in the East Trash Mound, which turned out to be a shallow deposit over a natural hillock, yielding little material of importance. The architectural terms used in this report are defined as follows: Coursed masonrymasonry in which the stones are laid in layers. Slab walla wall in which the stones are set on edge. Jacal walla wall consisting of a framework of poles or small posts and interwoven twigs or smaller poles covered with adobe; often called "wattle and daub." Jacal walls at Big Juniper House are termed so only by inference. The remains of such walls at the site consist of burned stubs of the vertical members with burned clay between, the rest of the wall having disintegrated. Simple walla wall of coursed masonry, one building stone in width; these walls are sometimes called "single coursed walls"a misleading term, since courses refer to layers and not to widths. Double walla wall composed of two simple wallseach wall laid adjacent to but independent of the other. Compound walla wall of coursed masonry, two or more building stones in width; some or all of the stones are exposed on only one face of the wall. Rubble walla wall composed of unworked stones with no apparent coursing or facing. Scabbled masonrybuilding stones that have initial shaping by edge-spalling; stones are blocky in appearance. Chipped-edge masonrymasonry in which the stones are shaped by bifacial chipping or spalling; sides and ends of the stones have usually been worked to thin, sinuous edges. Finished masonrymasonry in which the initial shaping is by one or both of the above methods, followed by pecking or grinding, usually confined to the faces.
