Appendix C
|
| |
Confinement and Ethnicity: An Overview of World War II Japanese American Relocation Sites by J. Burton, M. Farrell, F. Lord, and R. Lord |
|
|
| |
Appendix C
Selected Relocation Center Drawings
This appendix contains a sample of Corps of Engineers construction plans for various buildings in the relocation centers. (Web edition note: image sizes are quite large — please be patient while the figure downloads). Included are:
Figure C.1. Family Barracks, Laundry, and Ironing Building Details, Tule Lake Relocation Center.

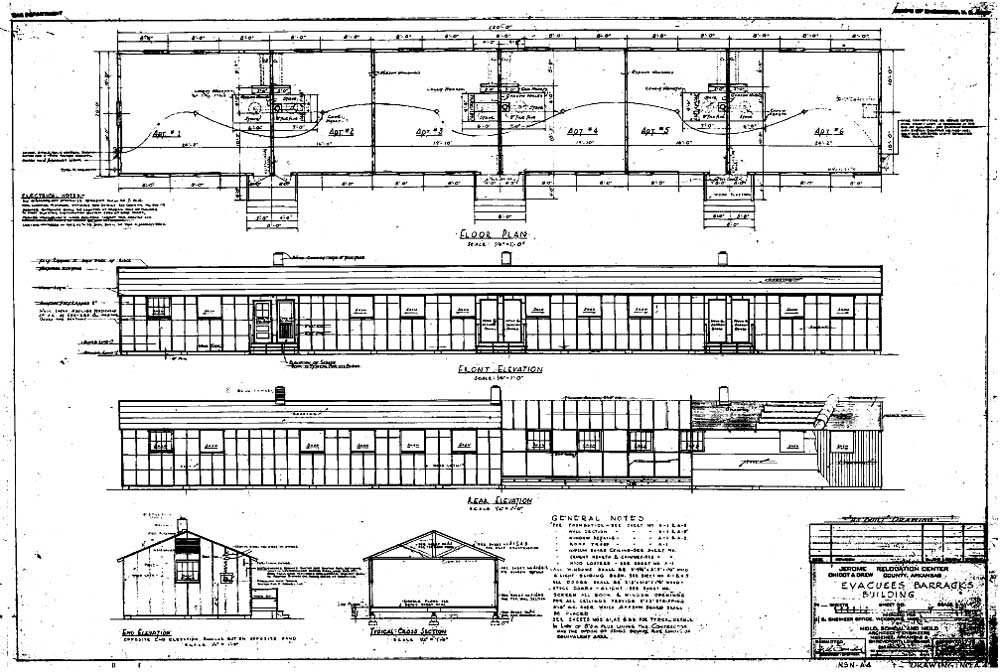

Figure C.2. Evacuees Barracks Bldg — Foundation Plan and Floor Plans and Sections, Jerome Relocation Center.

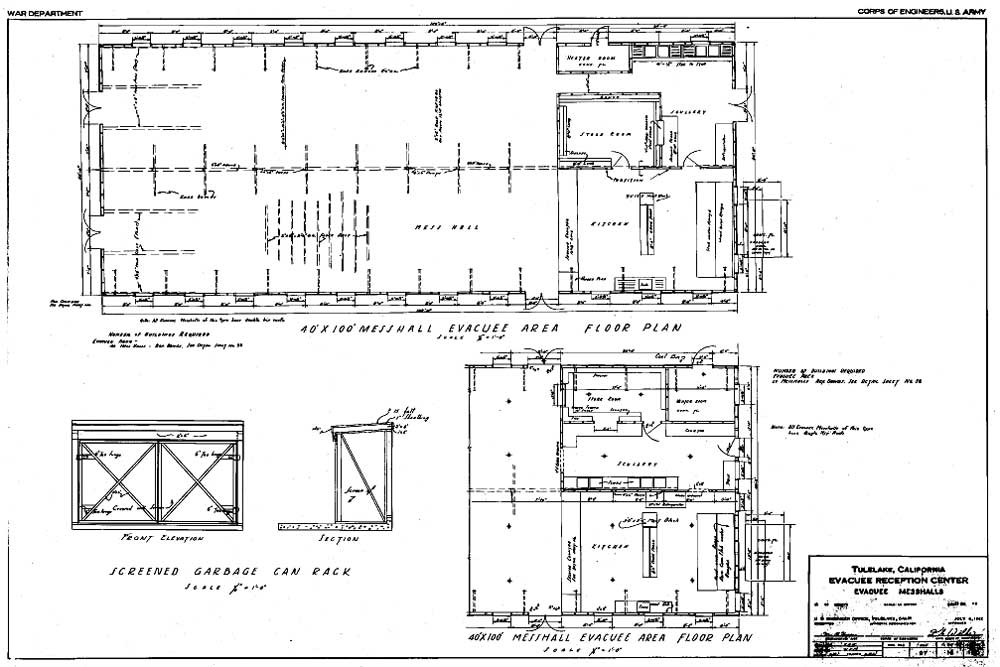

Figure C.3. Evacuee Mess Halls, Tule Lake Relocation Center.
Figure C.4. Additional Housing, Mess Hall, Combined Men's and Women's Latrine Building — Architectural, Plumbing, Tule Lake Relocation Center.

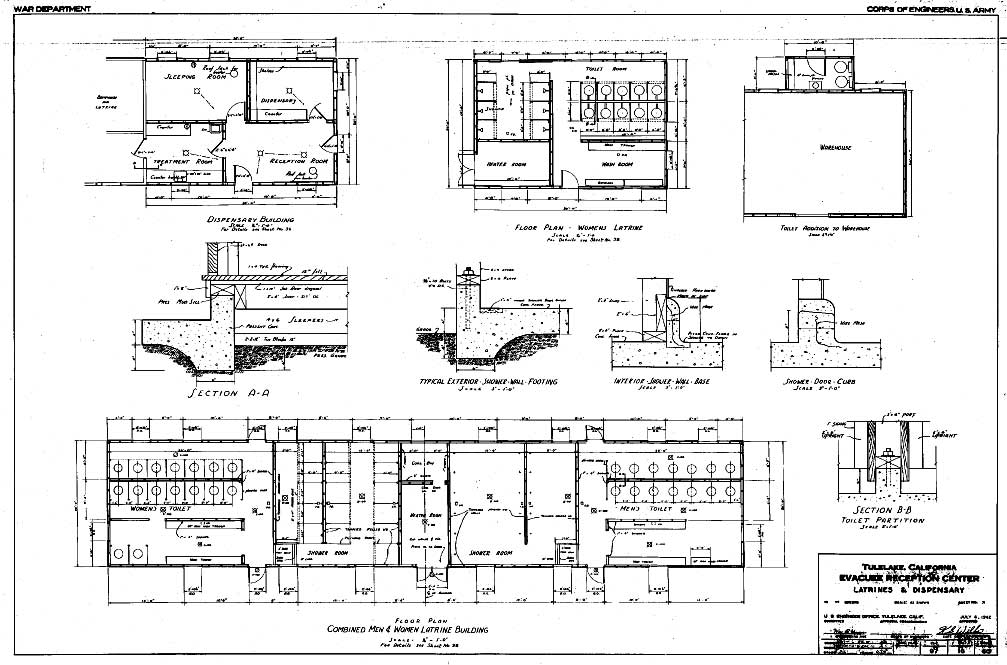

Figure C.5. Latrines and Dispensary, Tule Lake Relocation Center.

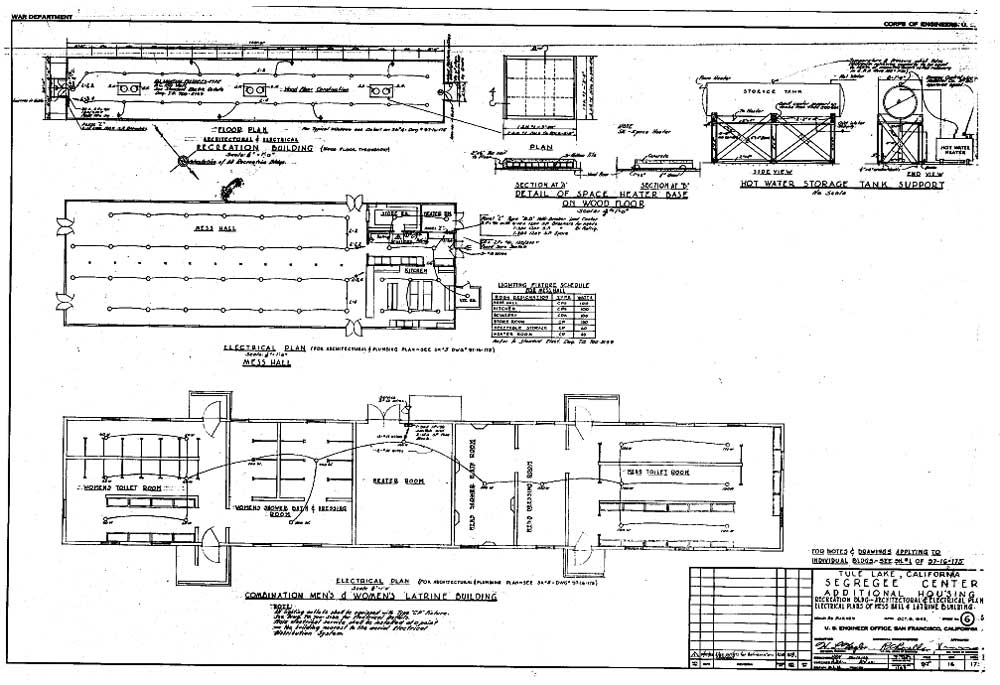

Figure C.6. Additional Housing — Recreation Building, Architectural and Electrical Plan, Electrical Plans, Tule Lake Relocation Center.
Figure C.7. Evacuees Lavatory and Laundry, Jerome Relocation Center.

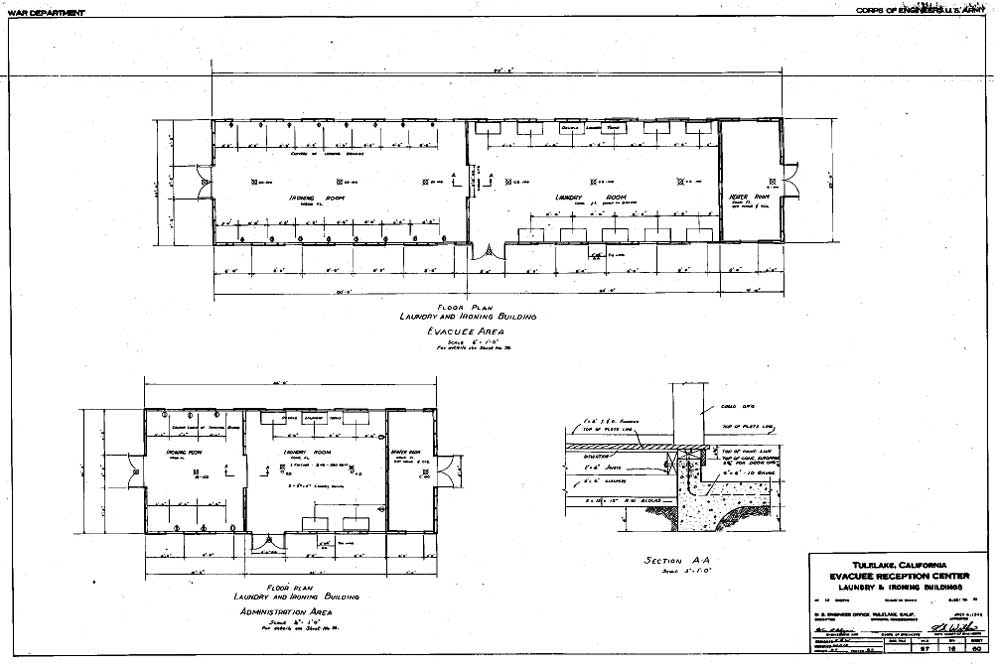

Figure C.8. Laundry and Ironing Buildings, Tule Lake Relocation Center.

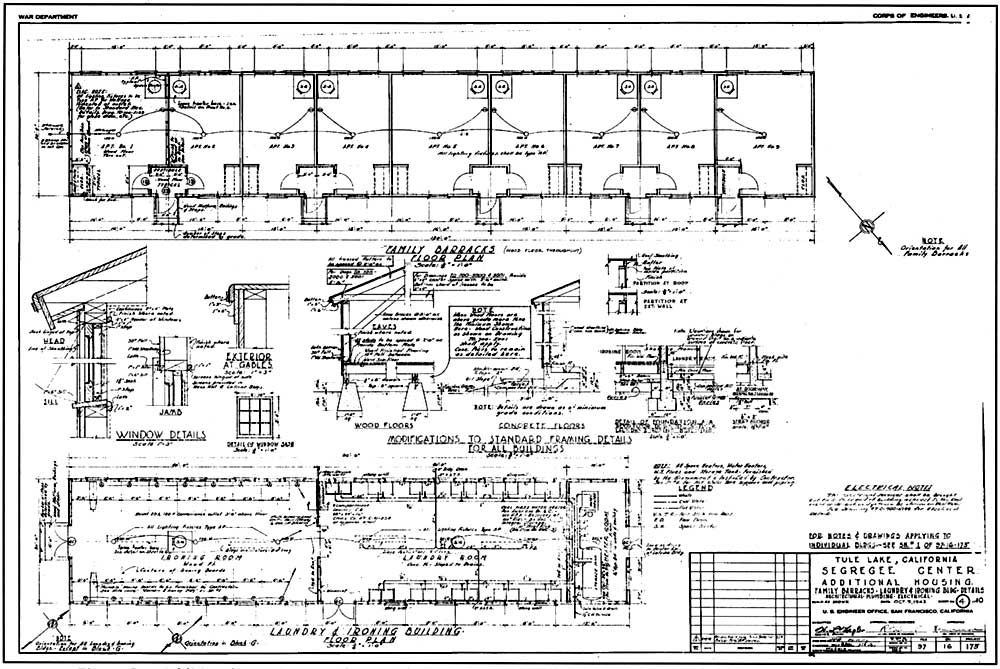

Figure C.9. Additional Housing, Family Barracks, Laundry and Ironing Building — Details, Tule Lake Relocation Center.

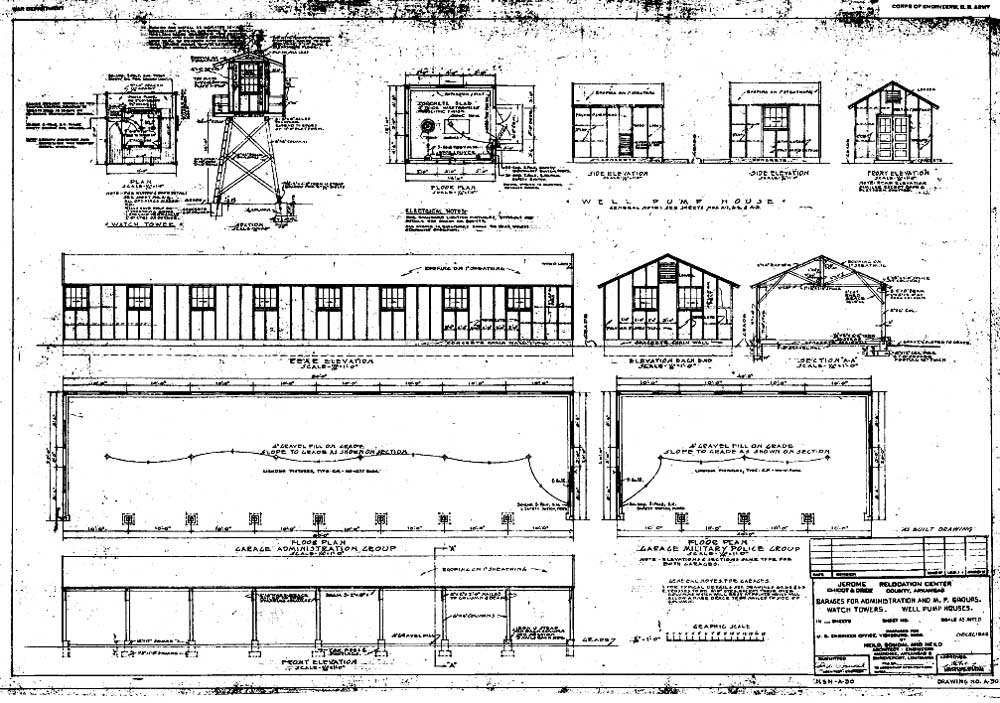

Figure C.10. Garages for Administration and M.P. Groups, Watch Towers, Well Pump Houses, Tule Lake Relocation Center.
Figure C.11. Well Pump House and Sentry Towers (1942), Tule Lake Relocation Center.

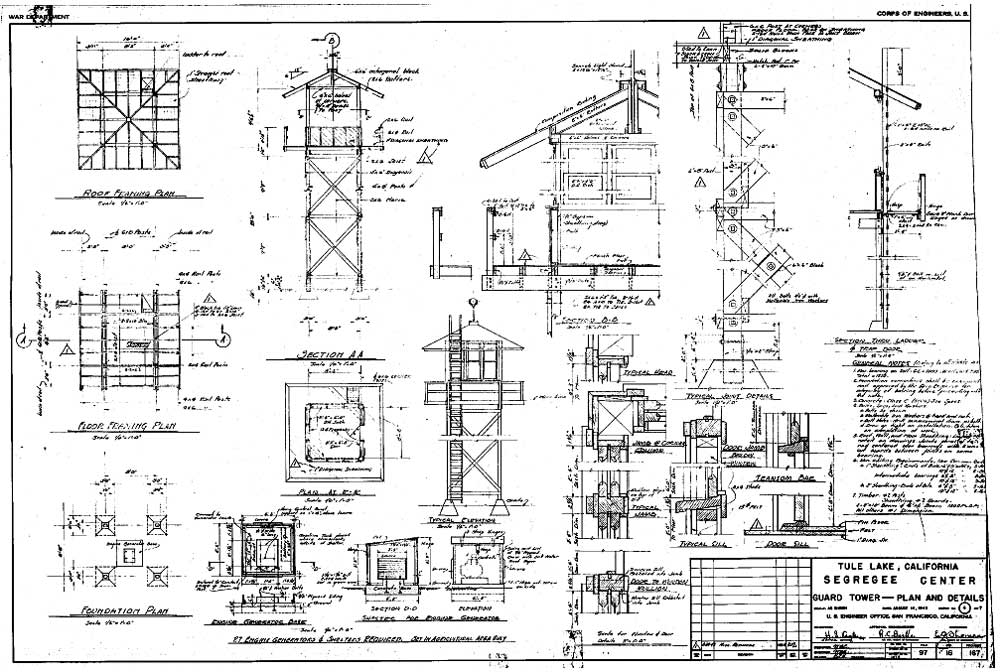

Figure C.12. Guard Tower — Plan and Details (1943), Tule Lake Relocation Center.
Figure C.13. Sewage Treatment Plant — General Layout, Tule Lake Relocation Center.
Figure C.14. Sewage Disposal System, Tule Lake Relocation Center.
