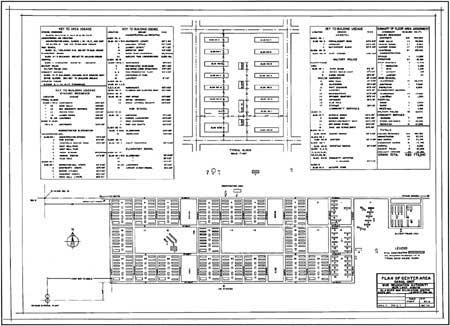

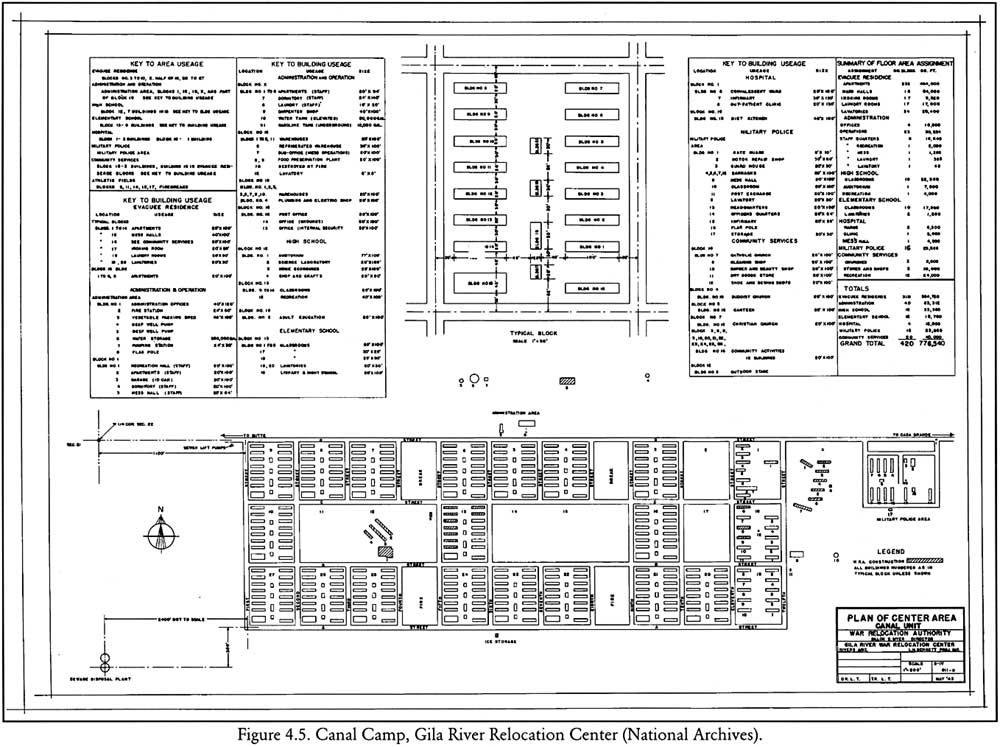

Canal Camp covered a narrow 210-acre area three blocks north-south and slightly more than nine blocks east-west in the eastern part of the reserve at the southern boundary (Figure 4.5). Bounding the camp on the north was the South Side Canal; on the south was a raised earthen dike that had been constructed to protect the canal from flash floods. The camp was separated by firebreaks into three groups of nine blocks each. The blocks were numbered from 1 to 27, starting in the northeast corner and proceeding west to Block 9. The next row began with Block 10 just south of Block 9, with numbers ascending back to the east to 18. The southernmost row started with 19 at the east edge, increasing to 27 at the southwest corner. The firebreaks were not numbered. North-south streets were numbered from west to east, east-west streets were lettered with "A" on the south and "D" on the north. "D" Street led west to Butte Camp and east to Casa Grande.

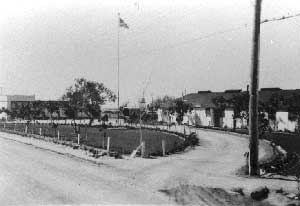

Canal Camp itself included 404 buildings, 44 of which were devoted to administration and hospital use. Most of the administration and hospital buildings were located in the three blocks (1, 18, and 19) along the eastern edge of the camp. Block 1 had an apartment building, a dormitory, a recreation hall, a mess hall, a ten-car garage, and the hospital. The hospital included a convalescent ward, an infirmary, and an out-patient clinic. The hospital also ran a "diet kitchen" in Block 16. Between Block 1 and the military police compound the evacuees constructed six apartment buildings, a dormitory, and a laundry for additional staff housing. South of Block 1, in Blocks 18 and 19 there were 12 warehouses, a refrigerated warehouse, an office, two food preservation plant buildings, a plumbing and electrical shop, and a latrine. East of these blocks there was a carpenter shop, an underground gas tank, and a 50,000-gallon elevated water tank (Figure 4.6). Centrally located north of Block 5, between the evacuee residential area and the South Side Canal, there was a 40 foot by 120 foot administration office building and a fire station (Figure 4.7).
The 360 buildings at Canal Camp devoted to evacuee residential uses included 232 Barracks, 16 mess halls, 17 ironing rooms, 17 laundry rooms, 34 latrine and shower buildings, 24 school buildings, and 20 community service buildings. Each of the 17 evacuee residential blocks included fourteen 20 foot by 100 foot barracks, a mess hall, a men's latrine and shower building, a women's latrine and shower building, a laundry room, an ironing room, a recreation building, and a 1,000-gallon fuel oil tank. The recreation buildings and some of the barracks were used for churches, meeting rooms, classrooms, libraries, and other community services. The ironing rooms were reportedly never used for their intended purposes, and all were eventually converted to storage rooms for mess hall supplies.
|
||||||||||||||
