Volcanic Earthquakes in Alaska’s National Parks

By Stephanie Prejean, Seth Moran, and John Power
a man stands on solar panels with mountains in the distance
Figure 1. John Paskievitch (USGS AVO) servicing a webcam mounted on solar panels at seismometer site KABU in Katmai National Park and Preserve, August 2009. Trident (right) and Katmai (left) Volcanoes are visible in the background.

USGS AVO photograph by Stephanie Prejean

Introduction

Alaska’s national parks contain 11 historically active volcanoes (Figure 2), which produce thousands of small earthquakes every year. These earthquakes are voices of the magmatic and geothermal systems within the volcanoes. The Alaska Volcano Observatory (AVO), a joint program of the U.S. Geological Survey, the Geo-physical Institute at the University of Alaska Fairbanks, and the Alaska Division of Geological and Geophysical Surveys, monitors volcanic earthquakes year round with networks of seismometers (Figure 4). Data from these networks allow AVO to evaluate the state of magmatic systems and provide warning of volcanic unrest, potential eruptions, and hazards. The key to correctly interpreting earthquakes lies in understanding the physical processes that trigger earthquakes at volcanoes.

map of Alaska showing major volcanoes
Figure 2. Map showing volcanoes in Alaska that are seismically monitored by AVO. Those labeled with dates of most recent significant eruptions when known, are mentioned in this article. Those colored red are in national parks.

Earthquakes Triggered by Magma Ascent

The rise of magma through the Earth’s crust can trig-ger seismicity for many reasons. Ascending magma puts pressure on the surrounding crust, often creating small fractures as rock breaks to accommodate the increased volume (McNutt 2005). In addition, gases released from rising magma (water, carbon dioxide, and others) can further pressurize the surrounding rock, generating earthquakes. For these reasons, earthquake swarms (bursts of many earthquakes closely spaced in time and location) almost always precede volcanic eruptions.

The relationship between seismicity and magma ascent is controlled by many factors including: the chemistry and gas content of the magma, regional tectonic stresses, the temperature of the surrounding crust, the type of rock surrounding the conduit system (e.g., granite vs. sedimentary rock), and whether there are pre-existing faults in the area or an existing, recently occupied conduit to facilitate magma migration. Because of these variables, there is an impressive diversity in seismicity characteristics associated with magma ascent.

For example, prior to the 2008 eruption of Kasatochi volcano (Aleutian Islands), the largest earthquake associated with magma ascent was magnitude (M) 5.8. In contrast, the largest pre-eruption earthquake of the 2009 eruption of Redoubt Volcano was only M 3.1, and the largest pre-eruption earthquake of the 2006 eruption of Augustine Volcano was M 2.1. Some eruptions, such as the 2009 Redoubt eruption, produce strong volcanic tremor (continuous vibration of the Earth’s crust) prior to large explosions, while other volcanoes do not exhibit this type of activity at all. Given this range of seismic behavior, correct eruption forecasts rely on interpreting seismicity in the context of many other data streams, including historical activity at the volcano, the chemistry of magma typically erupted from the volcano, and other clues to magma ascent gleaned from ground deformation, satellite, and gas monitoring data.

square plot of many blue dots showing seismic data

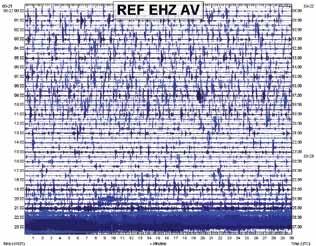

Figure 3. ‘Webicorder’ plot showing 24 hours of seismic data from station REF on Redoubt Volcano, March 21 and 22, 2009. Time goes forward from top to bottom and left to right; each horizontal line represents 30 minutes. Spikes in first 21 hours are individual earthquakes often 2-3 per minute.

Seismic activity in the months leading up to the 2009 eruption of Redoubt Volcano displayed many classic signs of earthquake triggering by magma ascent. Four months prior to eruption onset, earthquakes known as deep-long-period events (DLPs) began occurring in the Earth’s lower crust at 15-22 miles (25-35 km) depth. DLPs radiate lower frequency seismic energy than typical brittle-failure earthquakes and likely result from slugs of magma or other fluids forcing their way upward through rock (see Figure 5 on page 29 for schematic). Thus, these DLPs signaled renewal of magma ascent from lower crustal depths. Three months prior to eruption onset, vigorous shallow volcanic tremor and earthquake swarms began in and below the volcano. This shallow seismicity was likely triggered by pressurization due to injection of magma into the near-surface rocks, release of gases from magma, and heating and boiling of ground water. Earthquake activity increased markedly in the two days prior to eruption (Figure 3), as the final ascent of magma perturbed the sur-rounding rocks. At that time, small earthquakes occurred at a rate of 1-5 per minute. This build up in the number of earthquakes with time is fairly typical for a stratovolcano prior to eruption, although precursory activity at many volcanoes veers from this pattern markedly. Okmok Volcano in the Aleutian Islands, for example, erupted in 2008 with only 60 minutes of elevated seismicity (Larsen et al. 2009). The clear precursory earthquake sequence associated with the 2009 eruption of Redoubt Volcano allowed scientists at AVO to supplement the monitoring network prior to the eruption with additional equipment (Figure 4) and to correctly forecast the eruption.

two women stand at the top of a seismic station with a snow-capped volcano in the distance
Figure 4. Michelle Coombs (USGS AVO) and Sarah Henton (University of Alaska Fairbanks, AVO) performing maintenance on a seismic station, September 22, 2009. Redoubt Volcano is visible in the background.

USGS AVO photograph by Game McGimsey

Earthquakes Triggered by Distant Large Earthquakes

After a large earthquake in Alaska, AVO scientists are frequently asked, “Does that earthquake affect the volcanoes?” The answer to this question is complex and is the subject of ongoing research. In general, large earthquakes in Alaska and around the globe that result from the relative motion of tectonic plates do not cause volcanoes to erupt. However, there are a few cases globally where large regional earthquakes have clearly initiated volcanic activity, such as the 1975 summit eruption of Kilauea Volcano, Hawai’i, following the M 7.2 Kalapana earthquake (Hill et al. 2002).

There is abundant evidence that large earthquakes can trigger small earthquakes (M< 2.0) at volcanoes over amazingly large distances. For example, the 2007 M 8.2 earthquake in the Russian Kurile Islands triggered a small earthquake swarm at Martin Volcano in the Katmai vol-canic cluster, over 2,000 miles (3,500 km) distant (Figure 5). More impressively, the 2004 M 9.2 Sumatra earthquake triggered an 11 minute swarm of small earthquakes at Mt. Wrangell volcano, almost 6,900 miles (11,000 km) distant.

graph of waves showing ground motion after an earthquake

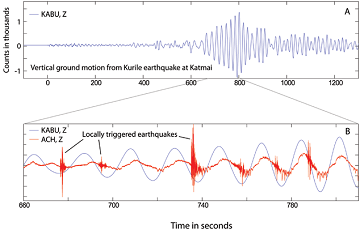

Figure 5. Dynamically triggered earthquakes at Mt. Martin Volcano following the 2007 M 8.2 Kurile earthquake: A) broadband record from seismic station KABU showing dominantly low-frequency ground motion of the Kurile earthquake in the Katmai area; B) seismic data from ACH (near Mt. Martin) and KABU.

In these and similar cases, local earthquakes were triggered when the highest amplitude seismic waves from the large distant event rolled through the area. This phenomenon, known as remote dynamic triggering, has been observed all over the world (Prejean and Hill 2009). Volcanoes in Katmai National Park and Preserve appear to be particularly susceptible to this type of triggering. Moran et al. (2004) summarize four episodes of remotely triggered seismicity at Martin Volcano in addition to the 2007 example. Generally, these small, triggered earth-quakes do not perturb the volcanic system significantly, nor are they related to movement of magma through the crust. Rather, they can be thought of as earthquakes that might have occurred anyway over the subsequent months. The oscillation of the ground from seismic waves of the distant earthquake simply caused them to occur earlier than they would have otherwise. Moran et al. (2004) inferred that the triggered earthquakes may have resulted from shaking of the shallow hydrothermal system and movement of hydrothermal fluids. Others have argued, however, that the preponderance of remote dynamic triggering suggests that the Earth’s crust is in a state of incipient failure everywhere (Gomberg et al. 2004). That is, rocks in the shallow crust are poised to break, and it only takes a tiny nudge to trigger these small earthquakes in almost any volcanic region.

black and white photo of a mountain ridge reflected into a caldera lake
Figure 6. The eastern rim and lake of Mount Katmai’s caldera, as seen from the western rim.

Photograph courtesy of Gary Freeburg

Ongoing Research

Due to the high earthquake rates and relatively frequent volcanic eruptions in Alaska (one per year on average), many researchers are focusing on volcanoes in Alaska’s national parks to better understand how volcanic earthquakes are triggered. For example, data from a recent seismic experiment in Katmai National Park and Preserve (see Thurber et al., this issue) reveal that many recent earthquakes in the area of Trident and Novarupta volcanoes are likely triggered by increased fluid pressure in a geothermally active region of the Earth’s crust. In another example, Roman and Power (2011) examine earthquake characteristics to infer stress changes in the crust due to magma movement at Iliamna Volcano during a failed eruption (an intrusion of magma into the shallow crust that did not result in an eruption) in 1996-97.

Discriminating between earthquake swarms triggered directly by magma movement and those triggered indirectly by magma (e.g. by high-pressure, magmatically-derived fluids and gases like water and carbon dioxide) is an ongoing challenge at potentially dangerous volcanoes worldwide. We must address this problem to correctly interpret the state of the magma system and resulting volcanic hazards. For these reasons, Alaska’s national parks will continue to be important laboratories for testing and refining our understanding of earthquake triggering at volcanoes.
