Earthquake Studies Reveal the Magmatic Plumbing System of the Katmai Volcanoes

By Clifford Thurber, Rachel Murphy, Stephanie Prejean, Matthew Haney, Ninfa Bennington, Lee Powell, and John Paskievitch
two men stand on a gravelly surface with snowy mountains in the distance
Figure 1. Lee Powell and John Paskievitch installing temporary seismic station at Mt. Mageik.

USGS AVO photograph by Stephanie Prejean


The 1912 eruption of Novarupta was the largest of the 1900s (Fierstein and Hildreth 2001, Hildreth et al. 2003). A century later, fundamental questions remain regarding the source of the magma for that eruption. A previous seismic study of the Katmai area (Jolly et al. 2007) identified a single large area of anomalous structure in the subsurface centered beneath Katmai Pass (Figure 2), but the magma source for the 1912 eruption is thought to have been be-neath Mt. Katmai (Hildreth et al. 2003). This mystery was a prime motivation for the research project described here.

In summer 2008, scientists and staff from the Alaska Volcano Observatory (AVO) and the University of Wisconsin-Madison installed 11 temporary seismic recording instruments around the Katmai Pass area, complementing the existing AVO seismic network stations (Figure 3). The primary goal of the deployment was to record data from local earthquakes in order to yield an improved model of the three-dimensional structure of the upper crust beneath and surrounding Katmai Pass, using an analysis method known as double-difference seismic tomography (Zhang and Thurber 2003). The method yields a three-dimensional image of the velocity of seismic waves in the subsurface, and also produces improved estimates of the locations of the earthquakes beneath the seismic stations.

Our main finding is that there is not a single large anomalous zone centered beneath Katmai Pass; rather there are several separate anomalous zones, one each beneath Katmai, Trident-Novarupta, and Martin-Mageik. Furthermore, the earthquakes are tightly clustered beneath the various volcanic centers, and are found to be systematically deeper than previously thought. Linear trends of earthquakes are also revealed, similar to features observed at other volcanoes, possibly outlining previously unidentified fault structures or indicating the path of migrating magma or magmatic fluids and gases.

satellite images of calderas and snow-capped volcanoes
Figure 2. Composite satellite image of the Katmai National Park and Preserve region. Modified image courtesy of Steve Smith and AVO/University of Alaska Fairbanks, Geophysical Institute.

Seismic Waves and Seismic Tomography

There are two main categories of seismic waves: body waves that travel through the Earth’s solid interior, and surface waves that have their energy trapped near the Earth’s surface. Body waves come in two types, P (for primary, arriving first) and S (for secondary, arriving after P). P waves are compressional waves analogous to sound waves in the air, propagating pressure disturbances. S waves are shear or transverse waves that can only travel through a solid. Rayleigh waves, the most important surface waves, are caused by an interaction between P and S waves, although they are most sensitive to the S-wave velocity structure. The velocity of Rayleigh waves also varies with the frequency (or wavelength) of the wave. These different waves provide complementary information about the Earth’s interior. The S-wave velocity is particularly sensitive to temperature as well as the presence of fluids, gases, and cracks. Higher tem-peratures and a greater proportion of fluids, gases, and/or cracks all cause a reduction in seismic wave velocity.

map of seismic stations in Katmai area, marked by green dots

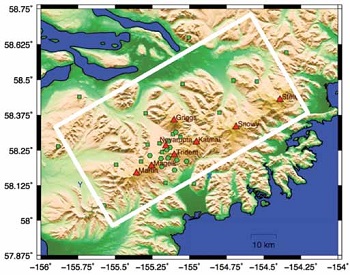

Figure 3. Map of seismic stations in the Katmai area. Green squares represent AVO permanent stations; green circles are AVO/UWM temporary stations. Red triangles are volcanoes with names indicated. The white rectangle is the outer edge of the body-wave seismic velocity model.

Seismologists construct images of the Earth’s interior using a method analogous to medical CAT (Computed Axial Tomography) scans. For body-wave tomography, the seismic waves generated by earthquakes play the role of the CAT scan X-rays, with the observed arrival times for waves traveling from the earthquakes to the seismic stations being used to infer the velocity of the seismic waves in three dimensions. The locations (including origin times) of the earthquakes are estimated at the same time. A basic review of seismic tomography can be found in Thurber and Aki (1987). The body-wave tomography method we use is known as “double-difference” tomog-raphy (Zhang and Thurber 2003), which takes advantage of a technique called waveform cross-correlation, a computerized method to “line up” seismograms, yielding more accurate seismic wave arrival times (Figure 4).

An entirely independent technique for obtaining an image of the S-wave velocity structure is called ambient noise tomography. The Earth is constantly vibrating, nor-mally imperceptibly, and these vibrations are known as ambient noise. This noise is caused mainly by ocean waves and wind, but also by vehicles and machinery. Snieder and Wapenaar (2010) present an excellent overview of this and other correlation-based seismic imaging techniques.

graph of seismic waves over time

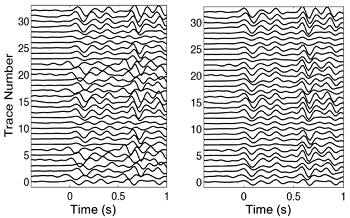

Figure 4. Comparison of seismic waveforms aligned on (left) catalog data versus (right) cross-correlation for a Katmai-area station, showing the improved alignment of the arriving waves.

This method proceeds in three main steps. The first step is the cross-correlation of continuous records of up to months of seismic noise for each pair of seismic stations in an area. It has been shown both theoretically and empirically that the cross-correlation of the ambient noise produces a “seismogram” that represents surface waves traveling from one station to the other. This happens because the noise is predominantly made up of surface waves traveling in random directions, and the cross-correlation analysis brings out those waves that happen to pass by both stations. An example is shown in Figure 5, where the ambient noise “seismograms” (known technically as Green’s functions) for the Katmai area are lined up according to the distance between the two stations. The second step is the estimation of the velocity of the surface wave, which as noted above is a function of the frequency of the wave (a phenomenon known as dispersion), for all pairs of stations. The dispersion behavior is most sensitive to the S-wave velocity structure. For the third and final step, the dispersion results for all station pairs are used to construct the image of the S-wave velocity structure in three dimensions.

a line graph showing seismic surface waves

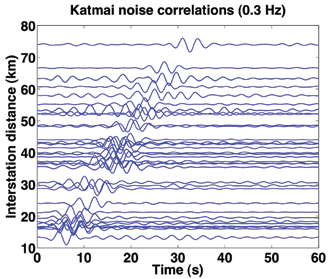

Figure 5. Ambient noise correlation results ordered by separation between the seismic stations, showing the surface waves that emerge from the method.

Images of the Seismic Velocity Structure

Figures 6 and 7 display slices through the three-dimensional models of the body-wave P and ambient noise S velocity models, respectively. Warm colors represent areas of the models with relatively low seismic wave velocity, and conversely cold colors represent areas with relatively high seismic wave velocity. We note that seismic wave velocity normally increases with depth (mainly due to the effects of increasing pressure), so areas that are anomalous can be identi-fied by deviations from this general pattern.

There are several key features that we interpret in the P-wave (body-wave) model (Figure 6). One is the very low velocity at 2 km depth in the Katmai Pass area, between Mageik and Novarupta/Trident. Jolly et al. (2007) found very low seismic velocity at shallow depths in this area as well. At greater depths, we identify separate zones of relatively low P-wave velocity that are visible in the 4 km depth slice beneath Mt. Mageik and in the 4 and 6 km depth slices beneath Trident. The latter extends northeastward toward Katmai. This result is in contrast to that of Jolly et al., who found a single, large anomalous zone of low P-wave velocity centered beneath Katmai Pass. The difference is likely due to increased seismic station coverage in our study, which provides us with a sharper focus in imaging the subsurface. We can image multiple low-velocity bodies that were blurred together in the results of Jolly et al.

colorful graphs showing seismic noise at different depths

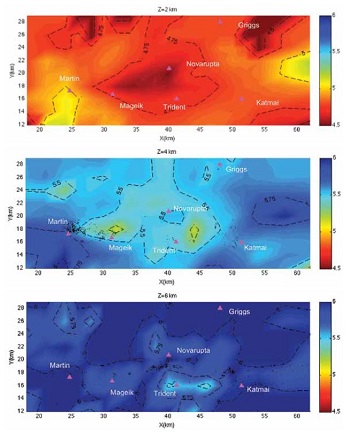

Figure 6. (Right) P-wave velocity image from body-wave tomography in horizontal slices at 2, 4, and 6 km depth (relative to sea level) for the boxed area in Figure 2. The structure shallower than 2 km is not adequately resolved by the body-wave data, so is not shown.

The “noise tomography” results for S-wave velocity in Figure 6, which are based on the analysis of data only from AVO network stations, are generally consistent with the body-wave image. Near the surface (0 to 2 km depth), a region of very low S-wave velocity is evident in the Katmai Pass area, similar to the P-wave model (Figure 6). There is also a low velocity anomaly at 4 km depth roughly beneath Trident that extends toward Katmai, similar to the body-wave model. One feature in the ambient noise model that is not present in the body-wave model is the low velocity anomaly just northeast of Katmai at 2 km depth. This is an area lacking in seismic station coverage, so the body-wave model is not well imaged there. The separate low-velocity anomaly beneath Mageik present in the body-wave model at 4 km depth is not present in the noise tomography model. It may be that the body-wave data have enough resolving power in this area to distinguish two features, whereas they are blurred together in the noise tomography model.

The model at the right is represented mathematically as smoothly varying between points spaced 2 km apart where the seismic velocity value is defined.

a graphed image showing noise tomography at different depths

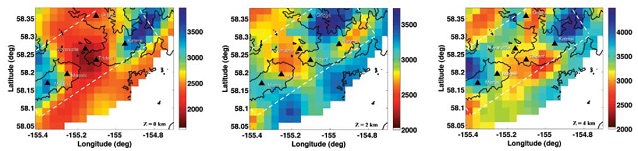

Figure 7. S-wave velocity image from ambient noise tomography in horizontal slices at 0, 2, and 4 km depth (relative to sea level), with the partial dashed white box indicating the area of the P-wave model in Figure 5. Velocities are in meters per second.

Earthquake Locations

As part of the body-wave imaging process, the locations of the earthquakes are refined. With the improved accuracy from the cross-correlation analysis (Figure 4), the earthquake locations are more accurate, “sharpening” our view of the seismicity distribution. In Figure 7, we compare the routine AVO catalog locations to our refined locations. There is a systematic deepening of the earthquakes throughout the region, as well as a slight shift to the north. These changes result from including the data from the temporary stations and from the effect of the three-dimensional velocity model. The clusters of earthquakes near the various volcanoes also are much more compact, although some of the smaller earthquakes still have scattered locations.

One aspect that is particularly noteworthy is the relatively sharp cutoff in the earthquake depths, at roughly 4 km beneath Martin and Mageik and 5 km beneath Trident, Novarupta, and Katmai. There are two plausible explanations for this. The temperature of the rocks may increase rapidly at these depths, so that the rocks flow in a ductile manner under stress rather than failing in a brittle manner (i.e., as earthquakes). Alterna-tively, these earthquakes may be sitting on top of magma storage zones, which would be weak areas that would concentrate stresses just above them. The presence of the low velocity zones in the tomographic images supports the second explanation, but other evidence is necessary in order to distinguish definitively between these two possibilities, or possibly reveal a third explanation.

The model above is represented mathematically as cubes 2 km in size of constant seismic velocity. The structure deeper than 4 km is not adequately resolved by the ambient noise data, so is not shown.

a scatter plot showing locations of earthquakes in relation to volcanoes

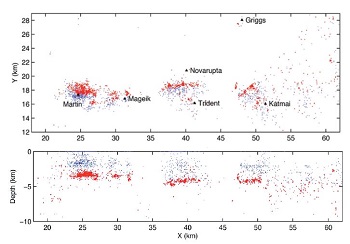

Figure 8. Comparison of catalog (blue) to relocated (red) earthquakes, (a. Top) map view and (b. Bottom) northeast-southwest cross-section. Note the greater degree of clustering in both views and the greater depths evident in (b) for the relocated earthquakes.

Conclusions and Future Work

Our seismic imaging research has provided important insight into the magmatic plumbing system of the Katmai volcanoes. The body-wave and surface-wave models display similar features that, along with the spatial distribution of earthquakes, suggest the presence of multiple areas of magma storage below 4 to 5 km depth. Further research will be able to refine the results shown here. Noise tomography can be applied to a combined set of data from the AVO network and the temporary stations (Figure 3) to enhance the surface-wave imaging capability. Body-wave tomography using S waves can be added to the P-wave modeling to provide another estimate of the S-wave structure. Ultimately, the body-wave and surface-wave models can be determined together in a joint inversion that will combine the imaging power of both data types to yield a clearer picture of the magmatic system beneath Katmai.
