Quarries

Pipestone Quarry

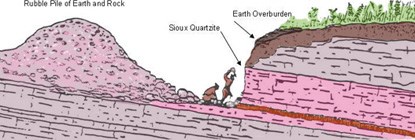

A cross-section view of a quarry showing the layers of earth and quartzite that needs to be removed before reaching the layer of pipestone.  Note that the pipestone seam is angled downward.  Over time, the quarriers must remove more and more quartzite, one of the hardest rocks in the world, to continue extracting the pipestone.

NPS Illustration



Located in rural southwestern Minnesota, the pipestone quarries are considered a sacred site by many American Indians. For the last 5,000 years or more, tribes across the central region of North America have traveled to this site to quarry. Today, they still travel long distances to this site to continue the tradition of pipestone quarrying and pipe making. Since 1946, the 56 active pipestone quarry pits have been managed by issuance of a quarry permit. More information on obtaining quarrying permits.

Pipestone quarrying is often an underappreciated part of the tradition surrounding pipe making. The task of extracting pipestone from the earth is slow and laborious using hand tools not much more advanced than the tools and methods used in past millennia. The process can require many days of physical labor with only sledgehammers, pry bars, chisels, wedges, and steel bars allowed. Good physical condition is a prerequisite.

Depending upon the specific quarry and amount of material extracted, experience has shown that quarrying time can be estimated at two to six weeks to reach the subsurface layer of pipestone. This pipestone lens is sandwiched between layers of very hard Sioux Quartzite formation rock. Depending upon a quarry’s location along the quarry line, the upper levels of quartzite can be four to ten feet thick above the pipestone layer. Prairie plants and soil varying in depth from one to six feet cover the upper layer of quartzite.

Quarriers use shovels and wheelbarrows to dig up surface soils and glacial till. Then they dump it in rubble piles at the rear of the quarries. Subsequently, broken pieces of quartzite rock are also discarded.

The upper layer of quartzite is composed of multiple quartzite strata, with vertical fractures and cracks in the rock. Wedges or chisels are placed into these cracks can be driven down with sledge hammers to break apart loose individual quartzite blocks. Upon loosening a piece, it is worked free with a steel pry bar and allowed to drop to the floor of the quarry. Heavy sledge hammers are then used to break the bigger chunks of quartzite into smaller, more manageable pieces that can be lifted and thrown out of the back of the quarry. The process of breaking out the quartzite is repeated many times until the pipestone layer is exposed.

The smaller pieces are also used in building a rock retaining wall along the front of the rubble pile. The rock wall serves as a barrier so that as additional quartzite and soil are thrown or stacked at the rear of the quarry, the rubble pile is prevented from collapsing back into the quarry. Building a sturdy retaining wall to keep rock and fill out of the pit is an essential part of managing a quarry and a very important protective safeguard for quarriers.

Once the pipestone is exposed, care must be taken in removing the stone as it is very fragile and when handling large slabs it can break. The pipestone layer may vary from 10 to 18 inches thick and it too is composed of multiple layers from 1 ½ to 3 inches thick. Individual layers are carefully removed one slab at a time by driving wedges into the natural horizontal seams. The natural vertical cracks in the quartzite carry down through the pipestone, which allows the quarrier to remove the pipestone layers in irregularly-shaped slabs or tabular blocks. More on Geology.

The quarry pits are located in the bottom of a bowl-shaped drainage. In the spring and early summer months groundwater from rain and snow melt collects in this low lying area, filling the quarries with water. Most quarriers prefer to work during the summer to late fall months to avoid the groundwater problems. Monument staff will assist quarriers by pumping water out of the quarries, but only two days ahead of when quarrying is planned. Often, when it is high, groundwater will flow back into the quarries as fast as it is pumped out. Since continued pumping will not reduce the water level, it will not be attempted during these periods when groundwater is high.
