War in the Pacific
Historic Resource Study
|
|
B. Asan Beach Unit, Asan Inland Unit and Fonte Plateau Unit
I. Asan Beach Unit
The Asan Beach Unit consists of 109 land acres and 445 acres of
water. It includes all of Asan Point, the landing beaches seaward of
Marine Drive, and the western side and tip of Adelup Point. (The
identifying numbers used below are those used by the National Park
Service up to now. A new numbering system, which will provide more
order, presently being developed by the area.)
|

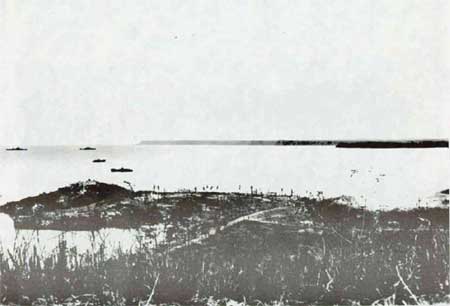

Adelup Point, 1944.
|
|

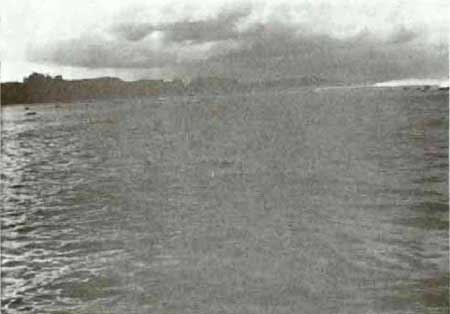

Asa Point from Adelup Point, Asan Beach, 1984.
|
|

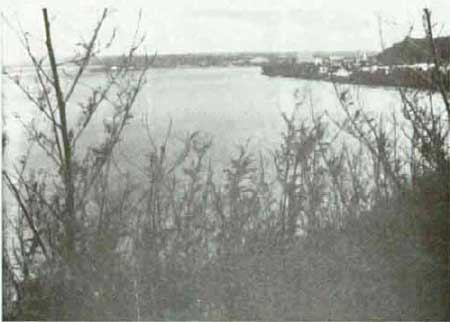

Agana from Adelup Point, 1984.
|
Adelup Point
No. 28. Japanese Pillbox. On the west side of the point. Presently
owned by the Government of Guam, it consists of a single concrete wall,
5 feet in length, and containing a small embrasure. It lacks a roof. The
field of fire was toward Asan Point. Battle damage is limited, but rock
has fallen into the firing position. Japanese lire from the west side of
Adelup Point hit the 3d U.S. Marines on Beaches Red 1 and 2 on W-Day.
The point was captured by the end of the day.
No 29. Japanese pillbox. On the east side of Adelup Point. It is
outside the boundaries of the national park. Built into the limestone
cliff, this pillbox has two gun embrasures, one of which is now sealed
with concrete. The rear entrance, from the top of the dill, is filled
in. Located on the east side of the point, this pillbox played no direct
rote in the W-Day landings. One may be assured, however, that its
occupants partook in the defense of Adelup Point when U.S. Marines
stormed it that afternoon. While the National Park Service has no
responsibilities concerning the pillbox it is recommended it be
identified in any interpretive literature that may be developed for
Adelup Point.
|

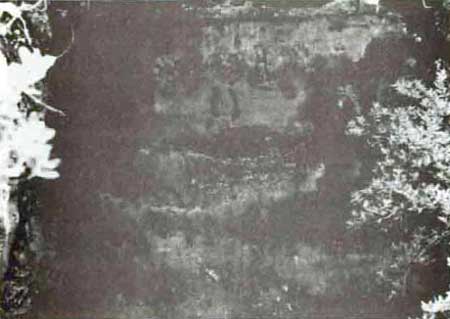

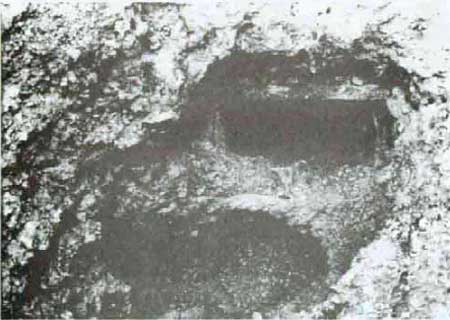

No. 29. Japanese pillbox, Adelup Point, 1984.
|
|

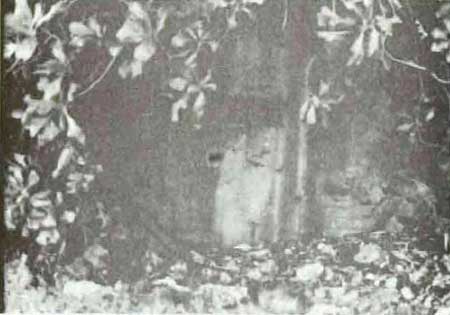

No. 29. Japanese pillbox, Adelup Point, 1984.
|
No. 30. Japanese pillbox. On the east side of Adelup Point, outside
the boundaries of the National Park. This fortification has been
described as a "dual" pillbox, having two rooms (one large and one quite
small), each with a gun embrasure. The cliff parallel to the westernmost
embrasure has been chiseled out to increase the field of fire. A
concrete observation port remains on top. As with No. 29, the pillbox
played no direct role in the W-Day landings. It is recommended that it,
too, be identified on any trail guides for Adelup Point. This is an
excellent example of an essentially undamaged and completed Japanese
pillbox.
|

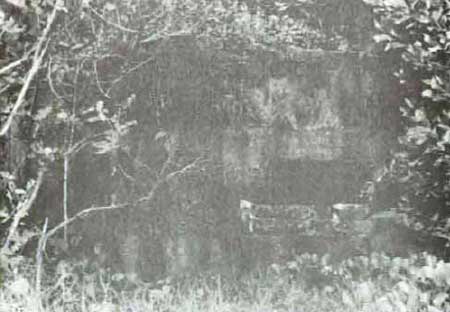

No. 30. Japanese pillbox, Adelup Point, 1984.
|
|
No. 30. Japanese pillbox, Adelup Point, 1984.
|
|

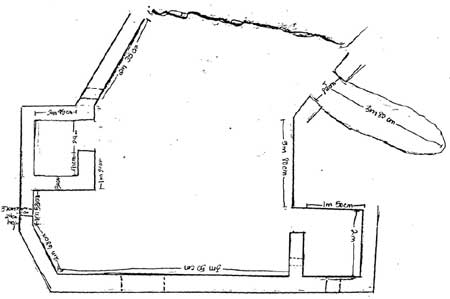

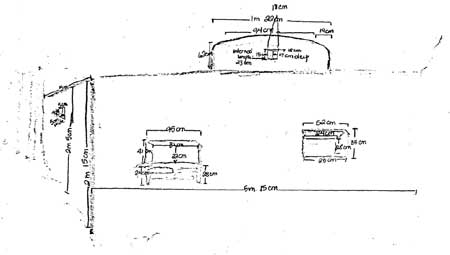

No. 30. Japanese pillbox, Adelup Point.
|
|
No. 30. Japanese pillbox, Adelup Point.
|
No. 31. Natural cave. On the north tip of Adelup Point, within the
park boundaries. This small cave may or may not have been defended.
Pieces of concrete have been found within. It measures 6 feet in depth
and 5.5 feet in width.
|

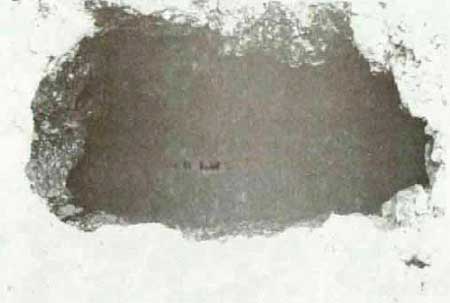

No. 31. Cave, Adelup Point, 1984.
|
No. 32. Cave and foxhole. These are on the west side of Adelup Point,
within the park boundaries. The Government of Guam is the present owner.
The natural cave, measuring about 5.5 feet in width and 10.8 feet in
depth, could well have served as a weapon emplacement. On top of the
cliff above the cave is a depression in the earth 3 feet in width, 6 in
length, and 3 feet in depth, that probably was a machine gun
emplacement. Both machine gun and mortar fire from Adelup Point fell on
Beaches Red 1 and 2.
No. 42. Cave. It, too, is on the west side of Adelup and within the
park boundaries. The Government of Guam is the present owner. This
natural cave is faced with a coral rock and concrete wall. The cave
measures 6.5 feet in width and 8 feet in depth. Its field of fire
covered Beaches Red 1 and 2.
|

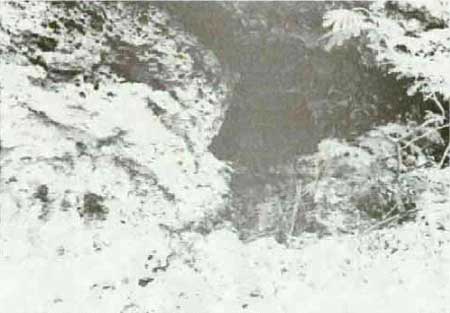

No. 42. Cave, Adelup Point, 1984.
|
|

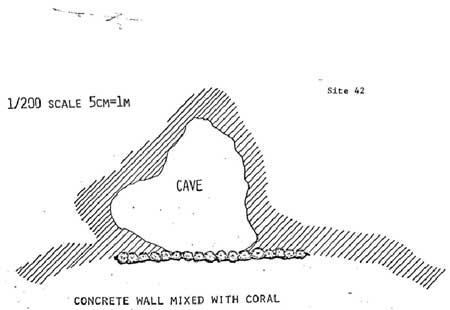

No. 42. Cave, Adelup Point.
|
No. 41. House foundation. This large, concrete foundation on the
highest part of Adelup Point marks the site of the pre-war Kroll home.
It is believed that the Japanese dug tunnels into the landward sde of
the foundation for storage; there is a definite evidence that this wall
was breached and later resealed. Also, a photograph taken on July 23,
1944, shows at least one opening in the wall. A long concrete flight of
steps from the house to lower ground from before the war remains. These
steps are bordered with small, rock-walled flower terraces of an
uncertain date (after the battle an American officers' club was
established on the house foundation). It provides an excellent platform
for viewing Asan Point to the west and Aqana to the east and is an
outstanding location for on-site interpretation,
|

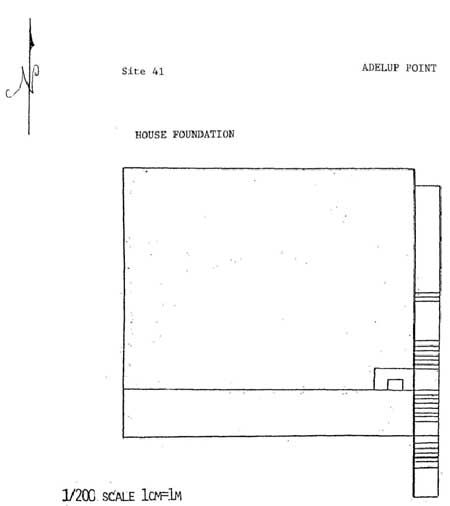

No. 41. Kroll House, Adelup Point.
|
|

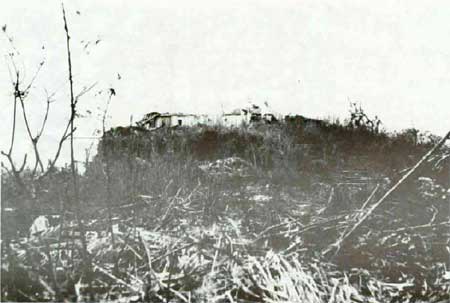

No. 41. Kroll house foundation, Adelup Point, 1944.
|
