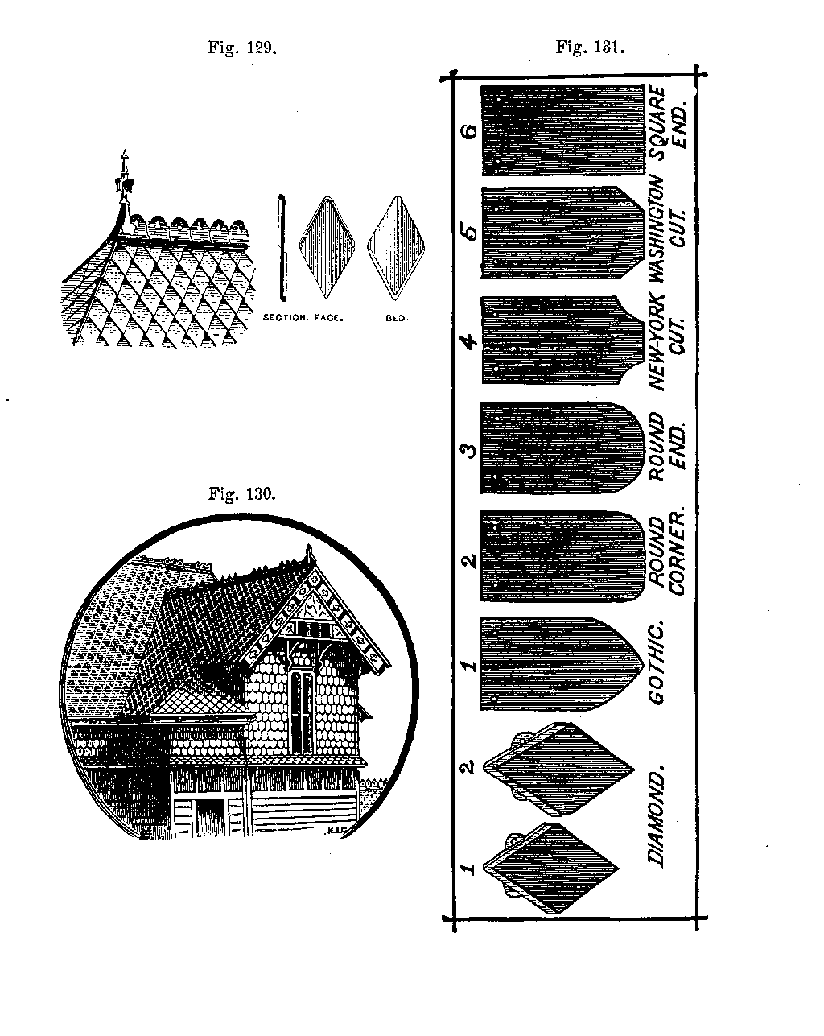

Outside of the Southwest, these tiles depicted in an 1884 publication are typical of what were in common use at that time. The diamond is an interlocking tile while the others are simply shingle tiles with shaped butts.
