Query by example Layout Properties

You are here: Elements Reference > Search Elements > Query-by-example Element > Query-by-example Layout Properties

Query-by-Example Layout Properties

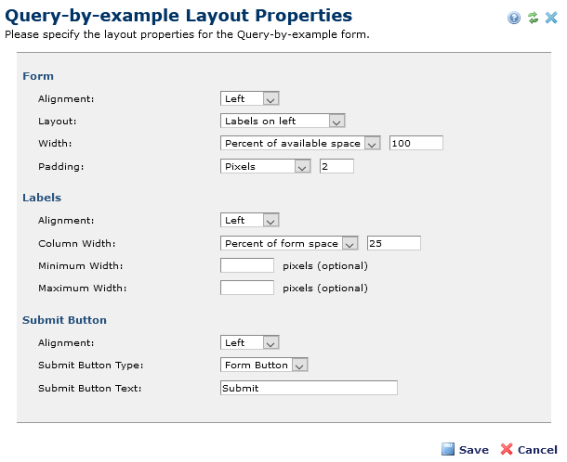

After selecting Query-by-example from the Search Elements section of the Element Gallery dialog, click the Element Tool icon and select Layout to open the Query-by-example Layout Properties dialog.

Form
- Alignment - Sets the form’s alignment, as follows: Left, Center, or Right.
- Layout: options: Labels on left, Labels above fields, No labels
- Width options: Pixels, Percentage of available space (enter an integer), Set by styles
- Padding: Pixels (enter an integer) or Set by styles
Labels
- Alignment: Left, Center, Right
- Column Width: Pixels, Percentage of available space (enter an integer), Set by styles
- Minimum Width: pixels (enter an integer) (optional)
- Maximum Width: pixels (enter an integer) (optional)
Submit Button
- Alignment: Left, Center, or Right.
- Submit Button Type: Form Button or Image. Choosing Image allows the selection of an image to use for the button.
- Submit Button Text: Choosing Form Button above renders this field to type in the text you wish to display in the button.

Click Save to keep your changes or Cancel to exit without saving.
