Preservation Matters: Remote Sensing - Ground Penetrating Radar

Table of Contents Navigation

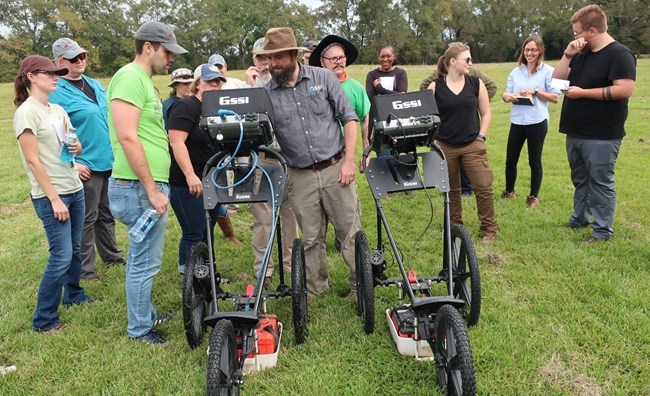

Workshop participants gathered around a GSSI SIR3000-based UtilityScan GPR system.
Workshop participants gathered around a GSSI SIR3000-based UtilityScan GPR system.

Ground-penetrating radar

Ground-penetrating radar (GPR) is perhaps the most recognizable geophysical survey technique used in archeology. The radar signal, an electromagnetic pulse, is directed into the ground. Subsurface objects and sediment layers with contrasts in physical and chemical properties will cause reflections that are sent back to a receiver. The two-way travel time and the assumed speed of the energy of the reflected signal(s) are used to calculate the depth of targets and layers.

GPR can be a powerful tool in favorable conditions, such as sandy soils, that best allow for the transmission of the pulse. GPR is unique in its ability to detect small objects and identify the depth of those objects. The disadvantage of GPR is that it is limited in less-than-ideal conditions. The high electrical conductivity of certain fine-grained sediments (such as clays and silts) limits depth penetration and overall performance, whereas rocky or mixed sediments may scatter the radar signal.

Survey Preparation

Preparation for a GPR survey involves documenting and being aware of a series of important variables.

  • The following should be documented for each survey: Grid layout, grid size, transect spacing, survey direction, line sequence, drift value, and bias value. The center frequency of the antenna, and for stepped frequency modulated systems, the range of frequencies is needed. The operator should also record the date(s) of the survey, personnel involved, and weather conditions.

  • Drift Value refers to the variable, often minor, changes to the time it takes for a pulse projected into the ground to the return to the instrument. Surface conditions, soil conditions, or temperature can slightly alter reflection times and result in “drift” that must be calculated for during survey.

  • Bias Value refers to a variety of complicating factors introduced to the testing process by the surrounding soils. Directional dependencies such as electromagnetic scatterings, the differential ability of the soils to hold an electrical charge, and magnetic susceptibility can result in bias in the results that can obscure features or structures.

  • Surveyors desire GPR results to be associated with a vertical scale. To acquire vertical measurements, it is important that time delay for the recording of the first reflection, the time sampling resolution, and the maximum time span of the recording are noted. This will allow an assessment of whether the device is investigating deep or shallow ground and what size of features may be detectable.

  • An estimate of the electromagnetic velocity (in m/ns) should be provided to convert two-way travel times to depth. The method used for the estimate should be specified, for example, observing ground conditions and using tabulated values, undertaking common-midpoint (CMP) measurements, a test survey over a target of known depth, fitting of reflection hyperbolas, or applying migration tests.

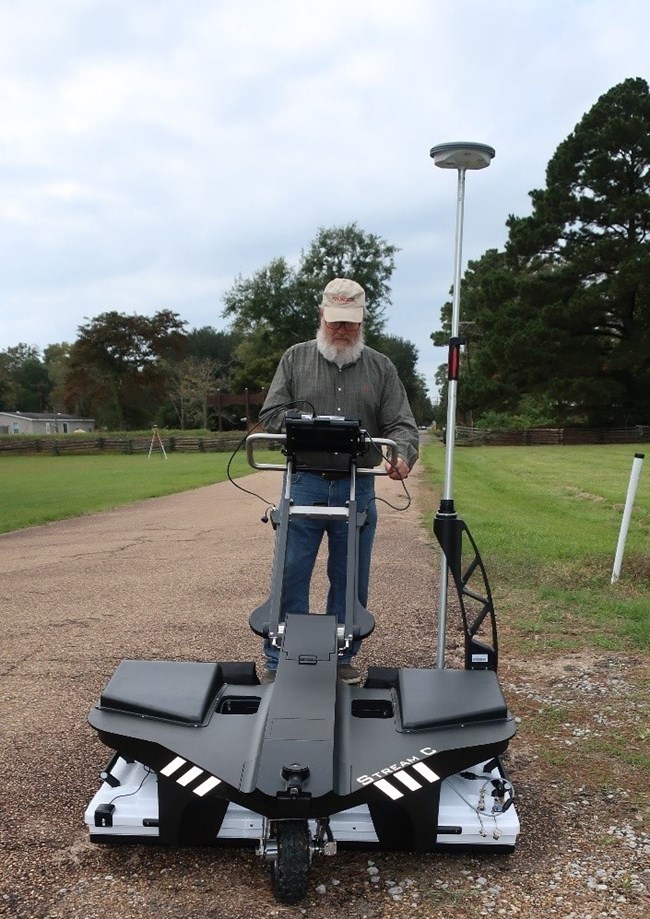

Dan Elliot operating the “Stream C” compact array ground penetrating radar system.
Dan Elliot operating the “Stream C” compact array ground penetrating radar system.

Data Collection

Data collection is best conducted using regularly spaced transects, staking your grid, and close monitoring and flagging of anomalies.

  • Survey involves walking with the instrument along closely spaced parallel transects, taking readings at regular intervals using an integrated distance-encoding wheel

  • In most cases, the survey area is staked into a series of square or rectangular survey grids. The corners of the grids are reference points, and the operator uses tapes or marked ropes as a guide when collecting data.

  • During survey, subsurface objects and stratigraphy (layering) will cause reflections that are picked up by the receiver. The travel time of the reflected signal, and the assumed velocity of the energy, are used to indicate the depth.

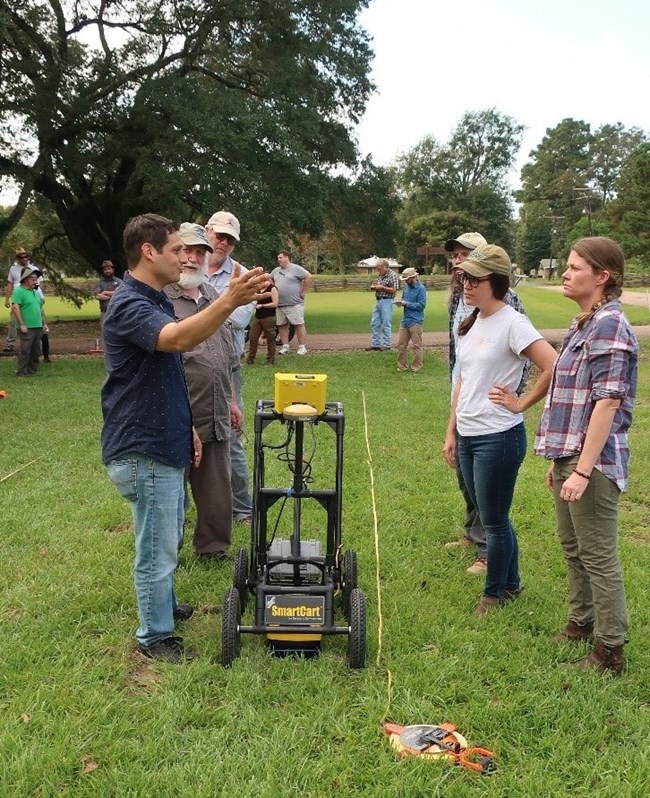

Daniel Bigman teaching workshop participants on best practices for using a NOGGIN SmartCart GPR system.
Daniel Bigman teaching workshop participants on best practices for using a NOGGIN SmartCart GPR system.

Data Processing

Processing your data is critical for identification of subsurface features and objects.

  • Record the time delay for the first reflection, the time sampling resolution, and the maximum time span of the recording.

  • Data processing and imaging convert numeric data into interpretable maps. This involves the removal of outliers and noise, and interpolation of data points.

  • Statistical filters enhance features of interest (based on size, strength, orientation, or other criteria), or suppress obscuring modern or natural phenomena.

  • Typical software-based post-processing methods include accurate positioning of the direct wave, removal of horizontal noise bands, bandpass filtering, and migration.

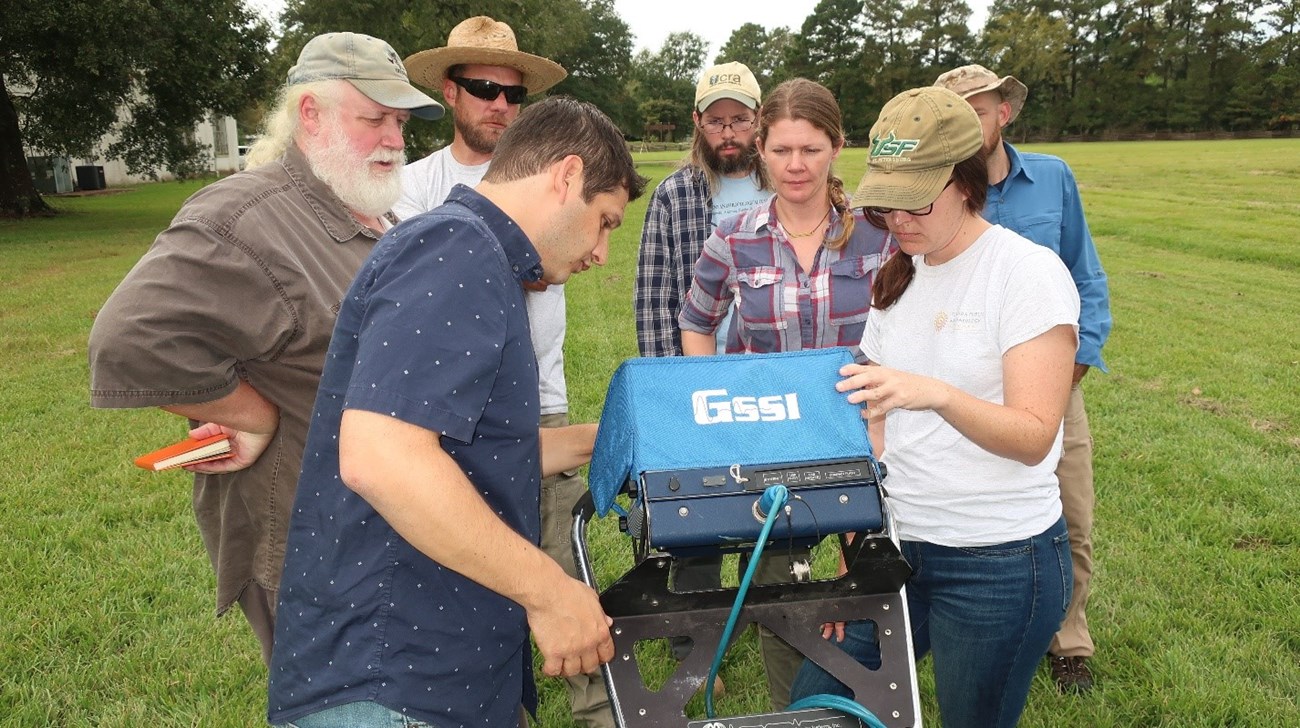

Peter Leach of GSSI teaching students about SIR4000-based UtilityScan GPR systems at the NCPTT Advanced GPR Training workshop at the Marksville State Historic Site in 2018.
Peter Leach of GSSI teaching students about SIR4000-based UtilityScan GPR systems at the NCPTT Advanced GPR Training workshop at the Marksville State Historic Site in 2018.

Visualizing Data

Visualization of processed data allows you to see in profile and plan view the area you surveyed.

  • Processed data will render images as contour maps or color-ramped amplitude maps. When geophysical data are rendered graphically, the interpreter can recognize cultural and natural patterns and visualize the geometry of objects and layers causing the detected anomalies.

  • Data may be plotted as profiles, as plan view maps isolating specific depths, or as 3-dimensional (3D) models.

  • In the case of historic masonry structures, GPR with a high frequency antenna can be used to detect cracks and decay patterns in the masonry

  • It is important to remember that GPR will NOT image the exact object but will rather tell the user where a discrete target is buried. It is up to the operator or other archeology professional to analyze and interpret the data collected to make the best judgment.

References

Conyers Lawrence B.

2013 Ground-penetrating Radar for Geoarchaeology. Wiley-Blackwell, Hoboken, NJ.

Leach, Peter

2020 A Theory Primer and Field Guide for Archaeological, Cemetery, and Forensic Surveys with Ground-Penetrating Radar. Geophysical Survey Systems, Inc., Nashua, New Hampshire.

McKinnon, Duncan P. and Bryan S. Haley (editors)

2017 Archaeological Remote Sensing in North America: Innovative Techniques for Anthropological Applications. The University of Alabama Press, Tuscaloosa.

Schmidt, Armin

2013 Geophysical Data in Archaeology: A Guide to Good Practice. Oxbow Books, Barnsley, UK.
