Casting at Springfield Armory

Cast steel objects replaced some machined pieces.

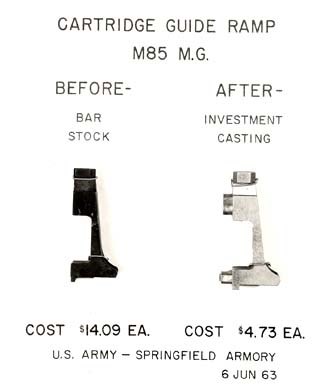

By the mid-20th Century, the "lost wax" casting process for making steel weapons parts was applied to Springfield Armory's production of small complicated shapes. In many cases, it was found to be less expensive than previously-used machining methods of production.
Springfield Armory NHS, US NPS
Display of steps in the lost wax process

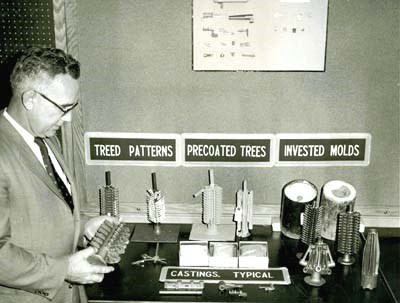

Here may be seen a display showing the steps in creating finished steel castings: the wax patterns connected by wax arms to form a sort of tree; wax trees coated with fine wet casting plaster; cans with the inverted wax trees immersed in hardened casting plaster with a wax stem exposed on top; and (after the plaster is heated to melt out and evaporate the wax) the finished steel parts that are formed when molten steel is poured into stem cavity in the hot plaster after the wax has been burned out.
Springfield Armory NHS, US NPS
Creating wax forms

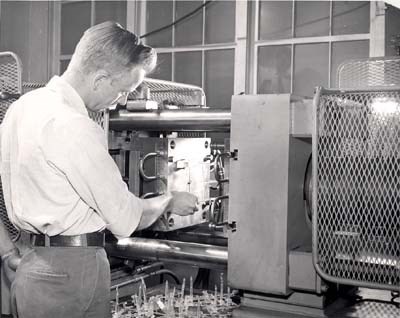

Wax forms, in the identical shape of the finished steel part, were made in molds into which hot wax was injected and allowed to cool. Finished wax forms may be seen on the table below the wax injection machine.
Springfield Armory NHS, US NPS
master plastic patterns for the wax form

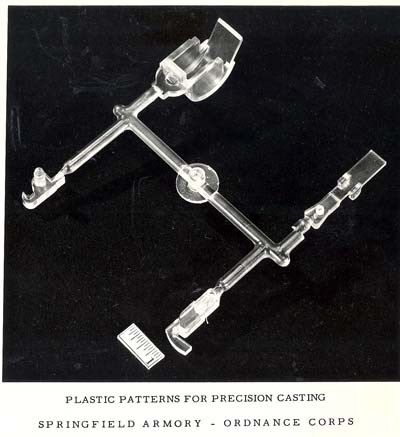

Above is a platic pattern that served as a master for the wax forms.
Springfield Armory NHS, US NPS

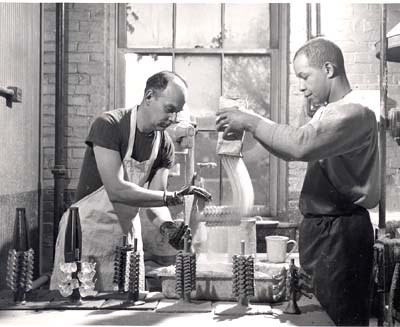

Preparing the wax forms for the plaster cast
Here may be seen Armory workers sifting fine wet plaster dust on the molds to create a fine surface before the plaster of the cast was poured onto it in a container of steel.
Springfield Armory NHS, US NPS

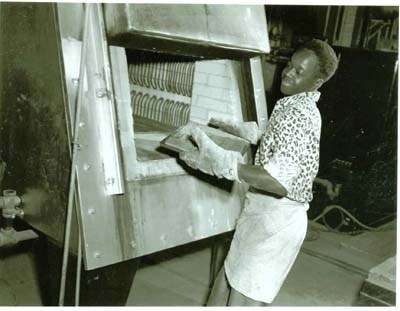

Placing the base plate in the casting oven
The casting molds sat on base plates in electric ovens.
Springfield Armory NHS, US NPS

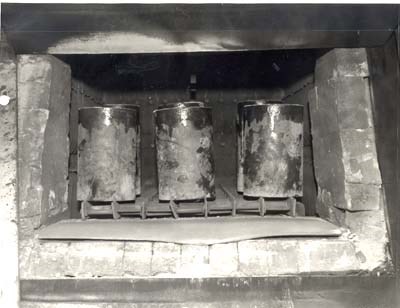

The cans holding the casting plaster molds were heated.
Cans holding the hardened plaster in which the wax molds sat were heated to over 1,500 degree F. This not only burned out the wax, but created cavities in the plaster where the wax form had been. While the plaster was hot, molten steel was poured into the cavities. When the plaster and steel cooled, the hardened steel had taken the form of the wax form.
Springfield Armory NHS, US NPS
Removing molds

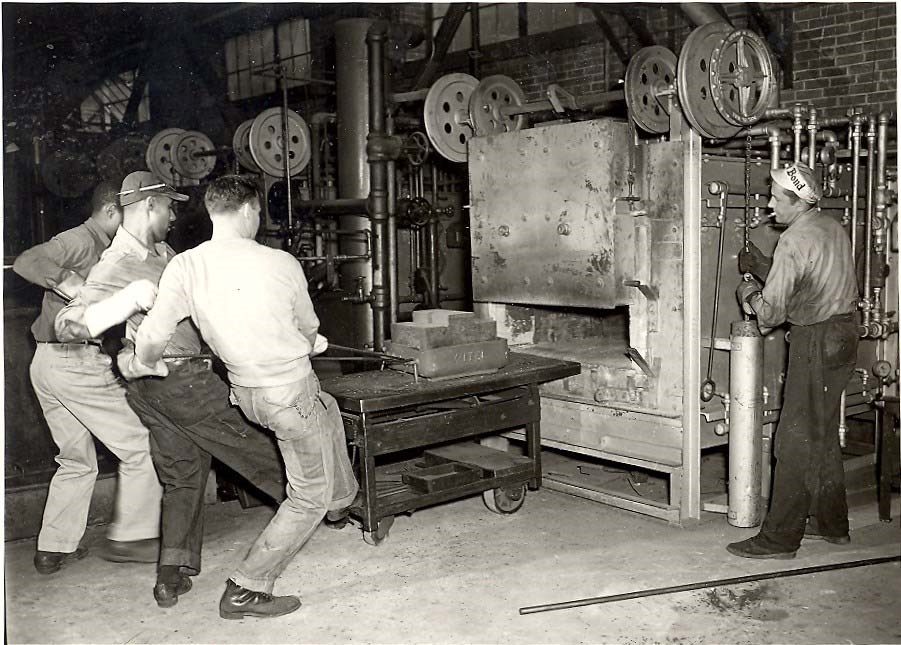

Removing the hot molds from the oven (kilns) could be heavy work if the cast pieces were large.
Springfield Armory NHS, US NPS
Pouring hot molten steel into molds

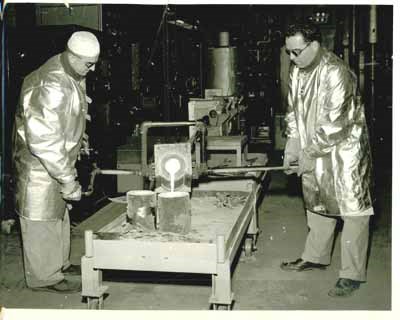

Wearing protective clothing and safety glasses, these Armory workers pour white-hot molten steel from a crucible into the hot cavity of the mold to form, when it cools, a formed steel part.
Springfield Armory NHS, US NPS
Cast M1 flash hider after casting and after further machining

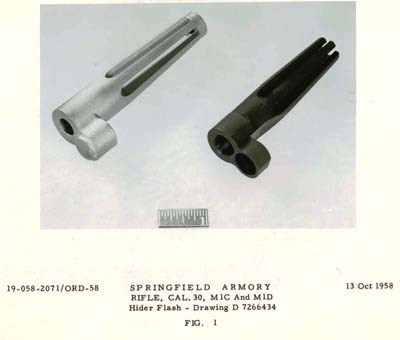

An example of the Armory's casting production is shown above with the M1 Rifle flash hider shown, on the left, as it came from the mold and, on the right, after machining operations and finishing made it ready for issuing.
