Springfield Armory National Historic Site
Development of the M1

The prototype rifles leading to the M1 Rifle
Springfield Armory NHS, US NPS
CASE 35

John Garand at work

Springfield Armory NHS archives, US NPS

John Garand was a hands-on weapons and procuction engineer.

A Successful Semi-Automatic

John Garand spent the better part of his life perfecting a semi-automatic rifle. On several occasions, as he was within reach of success, the Army changed its specifications, altering the caliber from .30 to .276 and then back again. In the process Garand altered the operating system from primer actuated to gas. Despite the frustrations, he met with success on the eve of World War II, when his rifle would meet its severest test in combat throughout the world.

******************




Garand's first military rifle, 1919

Springfield Armory NHS, US NPS

Patent Model SPAR915

John Garand's patent, dated September 5, 1919, is clearly reflected in his first experimental weapon. In the early pieces, Garand used a primer actuated system which used the set back power of the cartridge primer to operate the action.

_________________


M1920 Garand prototype

Springfield Armory NHS, US NPS

Model 1920    SPAR914

Garand's second attempt still retained the primer actuated action and turning bolt of his original patent, and was produced in both clip and magazine loading variations.

______________


Model 1923 prototype

Springfield Armory NHS, US NPS

Model 1923    SPAR916

This is serial No. 1 of the 1923 series. It was lighter than the previous models but the primer actuated device was doomed to failure as the .30 caliber cartridge did not lend itself to this type of operation.

_______________

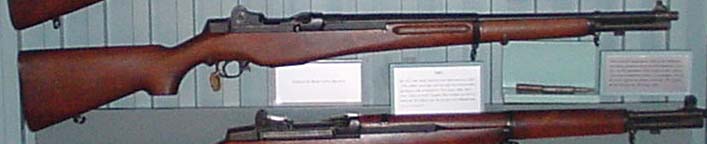

early Garand gas operated prototype rifle

Springfield Armory NHS, US NPS

T3E2               SPAR924

By 1927 the Army had become interested in a new .276 caliber cartridge and Garand was instructed to develop a rifle to handle it. Five years later, however, Chief of Staff Douglas MacArthur decided in favor of .30 caliber and the project was abandoned.


.276 cartridge on the left with .30 cartridge on the right

Springfield Armory NHS archives, US NPS

John Garand experimented with several different operating systems to achieve semi-automatic operations. At the insistence of the Army he also worked with several different calibers of cartridges. Two of the most important calibers were the .276 shown on the left and the .30 on the right.


US M1 rifle sn 1 receiver

Springfield Armory NHS, US NPS

Serial No.1      SPAR911

Garand's completed design is seen in the first M1 produced. Much of this rifle was hand made, putting together all of Garand's concepts for a weapon. The first eighty units were made, to some extent, by hand.

_____________


early Garand prototype receiver from 1929

Springfield Armory NHS, US NPS

.
.

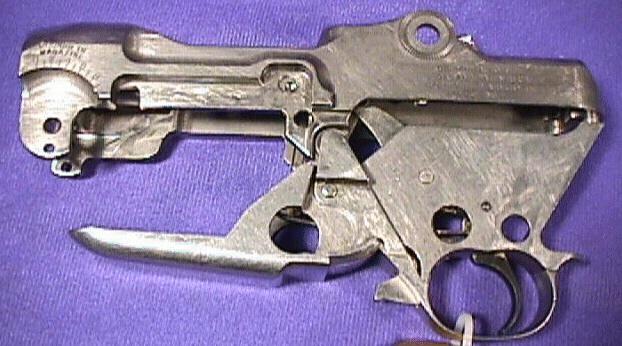

Experimental Receiver SPAR918

The final design of the receiver of the now famous M1 rifle is apparent in this early experimental model. It was produced under John Garand's supervision at the Armory in October, 1929.

_______________

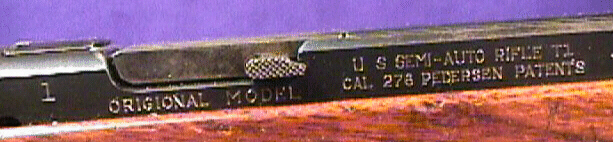

close up view of the Pedersen T1 sn1 receiver

Springfield Armory NHS, US NPS

Pedersen Rifle            SPAR1329

Garand was not alone in striving to perfect a semi-automatic rifle. The Army also contracted J.D. Pedersen to develop a rifle competition with Garand's. Pedersen's version, shown here, had a mechanism similar to the Luger pistols.

__________________


Landmark production M1 rifles

Springfield Armory NHS, US NPS

CASE 36

Landmark M1s

More than six million M1 rifles were built, most of them by Springfield Armory. Displayed here are some of the milestones reached during the production history. Some of the milestones are missing, but have found important niches of their own. Serial Number 1,000,000, for instance, was presented to the inventor John Garand.

_____________


US WWII military firearms

Springfield Armory NHS, US NPS

CASE 37

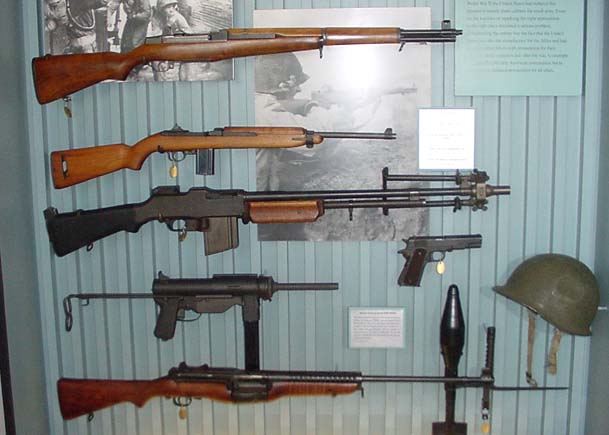

U.S. Small Arms of World War II   During the Civil War both the Union and, especially, the Confederate Armies were confronted with almost insurmountable logistical problems created by the dozens, even hundreds, of different sizes of ammunition used by each side. By World War II, the United States had reduced this number to merely three calibers for small arms. Even so, the logistics of supplying the right ammunition to the right place remained a serious problem. Complicating the matter was the fact that the United States was also the manufactory for the Allies and had to supply allied forces with ammunition for their weapons. Such confusion led, after the war, to attempts to standardize not only American ammunition but to agree upon a standard ammunition for all allies.

_____________


image & text

Springfield Armory NHS, US NPS

CASE 38

U.S. Rifle Cal. .30 M1

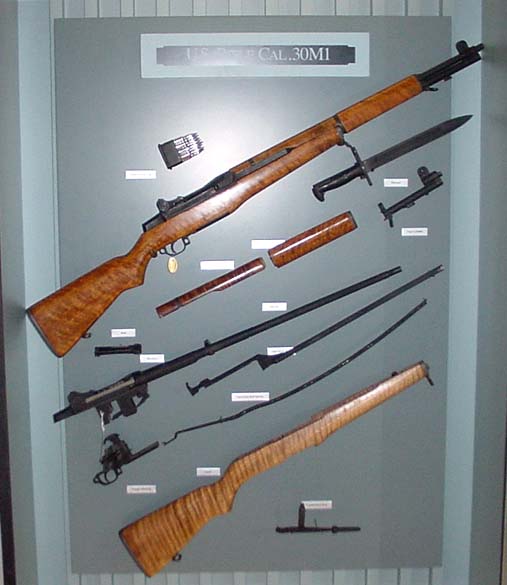

An "exploded view" of the M1 Rifle showing its many sub-assemblies and parts.















_________________

Memorial to John Garand
The bronze memorial bust
of John C. Garand was dedicated in this exhibit space on June 6th, 1994, as a gift.
more...
Garand's experimental work
Garand's experimental weapons
and M1 rifle variations and
more...
US soldier test-firing experimental Garand T3 about 1931
Semi-Automatic Test Models
at Springfield Armory from the early 1900s included the Garand rifles and
more...
Garand shooting in early 1920s
Garand's experimental arms
in CASE 57 may be viewed here with links for
more...
Middle School program

Did You Know?
Springfield Armory National Historic Site is the only National Park Site in Western MA. Dynamic public, school programs and teacher workshops are offered year round for all grade levels. Call today for more information 413-734-8551 or e-mail
more...
