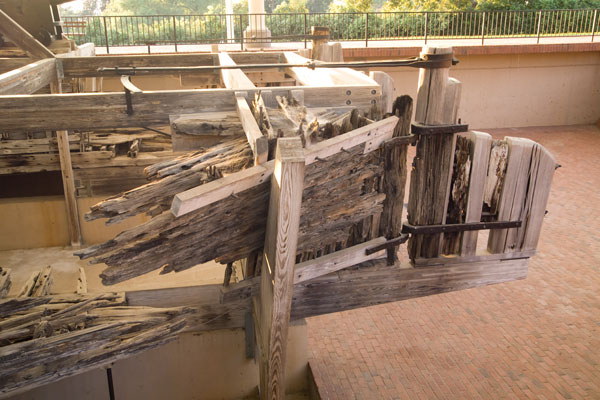

Rudders

The rudders steered the gunboat.  They were controlled by steering cables attached to the wheel in the pilothouse.  A gunboat would be disabled if a shell cut the steering cables. Long pins called gudgeons attached the rudders to pintels on the rudder posts.  If damaged, the rudder could easily be removed for repairs.
