The Lodge: 1930-1938

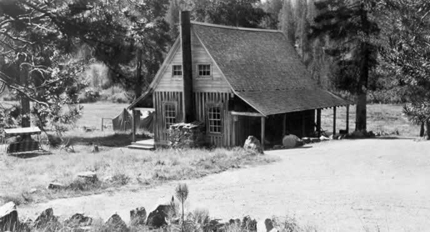

black and white photo of rustic cabin in 1931
1931--Lodge now has rear porch addition
Susan Watson

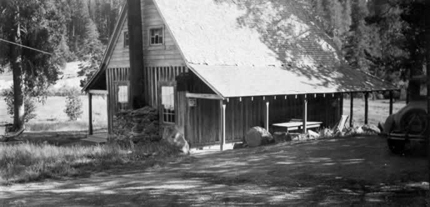

black and white photo showing rustic cabin in 1931
1931--Clearer view of earthen bank at the rear of the lodge
Susan Watson

In the photographs above taken in 1926 and 1927 the rear of the lodge lacks a covered porch. However the photographs taken in 1931 show that a covered porch has been added to the west side (rear) of the lodge. Also, the covered porch at the south end of the building appears to have been rebuilt at this time with its roof enlarged to connect with the porch roof on the east (front) side of the building, and with the new porch addition on the west (rear) side. Also, the small building adjacent to the southwest corner of the lodge and visible in several photographs dating from 1902 to 1927 disappears in photographs after 1931. It is likely that this building was removed to make room for the new porches. The lodge now had a covered porch extending around three sides of the building, the new sections constructed sometime between 1927 and 1931.

b/w picture of 1935 packard automobile in front of rustic lodge
1935-Lodge with 1935 Packard automobile. Note the addition of rear porch visible behind sign
(EASTMAN'S ORIGINALS COLLECTION, D-51, Department of Special Collections, General Library, University of California, Davis)

black and white photo of rustic cabin surrounded by large trees
1937--The covered porch addition on the west side (rear) of the lodge and the improved south porch

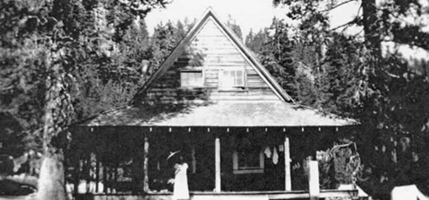

black and white photo showing rustic cabin in the woods with lady and umbrella on porch
Another view of the  improved south porch and west porch addition on the left


The Collapse of the Lodge in the Winter of 1937-38


black and white photo showing the winter storm damage to both sides of rustic lodge
1938--Damage to the Lodge (Left) the southwest corner of the lodge (Right) the north fireplace end


Roy Sifford returned to Drakesbad on May 10, 1938, to find that the lodge "had been smashed sideways" by the winter snows (Sifford 1994: 95). The damage to the lodge is visible in the two photographs above. The photo on the left shows the covered porch on the west and south sides of the building and the photograph on the right shows the north side (fireplace) of the lodge. Damage to the building was such that Roy Sifford considered the structure beyond repair. In addition to the damage to the lodge, Sifford reports that a store house and four cottages were "wrecked" (Roy Sifford interviewed by Dorothy Hill, June 8 1973).

Why was the lodge, which had survived 46 previous winters intact, so severely damaged in the winter of 1937-38? Roy Sifford reports that the winter of 1937-38 was "the most severe that we had ever experienced". In December the Lassen area experienced a heavy snowfall of three to four feet, followed by what he describes as a "warm rain storm" which caused extensive flooding. January was another period of heavy snowfall, "more than 20 feet in depth in some places" (Sifford 1994: 93-94).

Snowfall and snowpack data for the Northern Sierra confirm that the winter of 1937-38 was indeed as severe as Sifford reported. Data from Donner Summit shows that total snowfall in the northern Sierras that winter exceeded 700 inches, more snow than any winter since 1890 and far above the 415 inches in an average year. However, the recorded maximum snowpack depth for the year 1937-38 was only slightly more than 200 inches, likely due to melting during the period of warmer temperature mentioned by Sifford. The maximum snowpack depth for the year 1937-38, while deeper than the average of 137 inches, was equal to or less in depth than the snowpacks recorded for the years 1890, 1893, 1895, 1896, 1897, 1907, and 1911.

If snowpack depth is a more accurate measure of the maximum weight of snow carried on the roof of the lodge at any particular time during the winter, then the winter of 1937-38 was severe, but not extraordinary. The lodge had withstood similar snow loads during six previous winters. This suggests that the addition of the new covered porch on the rear of the lodge and the enlargement of the covered porch on the south end may have contributed in some degree to the structural failure of the building. A rough analysis of the roof profile in the photographs indicates that the addition of the covered porch roof on the west (rear) side of the building increased the total snow-bearing roof area of the lodge by approximately 25 percent. Also, the photos of the rear of the lodge taken in 1927 and 1931 suggest that snow sloughing off the west porch roof at the rear of the lodge would not fall clear of the building but would build up in the narrow "valley" between the lodge and an earthen bank a few feet to the west. As the snow trapped in the narrow space between the lodge and earthen bank increased in depth it is probable that a considerable side force vector would press against the building.

In addition to the factors discussed above, Roy Sifford was to discover that the construction methods employed by Edward Drake in 1890 were fundamentally flawed. When Sifford tore down the lodge in 1938 he discovered under the interior wallpaper what he considered to be inadequate sway bracing. The bracing for the hand hewn logs standing on end consisted "only of rough 1 x 12 boards nailed to the up right logs using No. 10 and 13 square nails, which allowed the building to be pushed sideways by the snow" (Sifford 1994: 98-100).

During the process of removing the damaged building Roy Sifford discovered a note left by Edward Drake tucked away in the eaves of the building.


handwritten note that reads "This house was erected in the year of our Lord 1890"
note reads "This house was erecated in the year of our Lord 1890 by Edward R Drake and Russell D. Whitcomb"
