RANGER III statistics
|
|
|
|
|
|
|
|
| National Park Service |

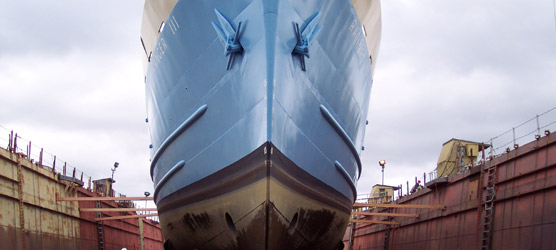

| Ranger III in dry dock |
|
|
USNPS RANGER III
MISSION: Logistical Support of Isle Royale National Park
|
PRINCIPLE CHARACTERISTICS
|
| Length |
165 feet |
| Beam |
34 feet |
| Depth |
15 feet 1 inch |
| Draft |
10 feet 6.5 inches |
| Load Displacement |
835 short tons |
| Crew |
6 - freight, 9 passenger |
| Passenger Capacity |
128 |
| Cargo Capacities |
100 tons dry |
|
7,500 gallons of oil |
|
650 cubic feet of
refrigerated and freezer
|
OPERATING MACHINERY
|
| Main Engines |
2 Caterpillar 3508 B;
850 BHP @ 1200 RPM |
| Propellers |
2 Bird-Johnson Controllable
Pitch, 76" Diameter |
| Bow Thruster |
250 HP/Hydraulic
36" diameter fixed pitch |
| Power Generators |
2 Caterpillar 3304,
55 KW |
| Crane |
3.1 Ton Hydraulic
30-foot boom |
|
|
|
|
|
|
