Discovering Historic Railroad Tracks

Architects have found remnants of historic railroad tracks from a landmarked army shipping depot!

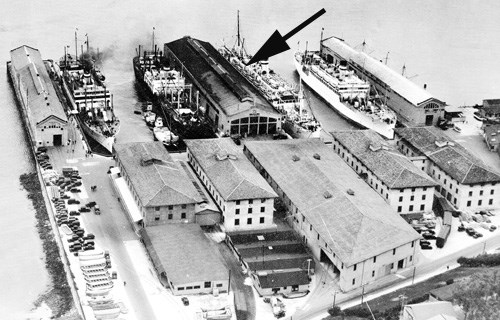

historic aerial of SF Port of Embarkation; large buildings in crowded pier area

San Francisco Port of Embarkation during the 1930s. The arrow is highlighting Pier Shed 2.



Historical Background

When architects were rehabilitating Pier Shed 2 at Fort Mason Center, they uncovered historic railroad tracks, buried beneath layers of asphalt. In 1913, the army constructed the San Francisco Port of Embarkation shipping depot that organized and shipped provisions to remote military outposts. Pier Shed 2 was constructed as a large storage facility along an extended pier, which allowed supply boats to dock on both sides. Loaded freight cars transporting critical military supplies traveled on railroad tracks throughout the bustling depot. Often, the freight cars ran directly into the warehouses adjacent to the ships to facilitate the transfer of goods.

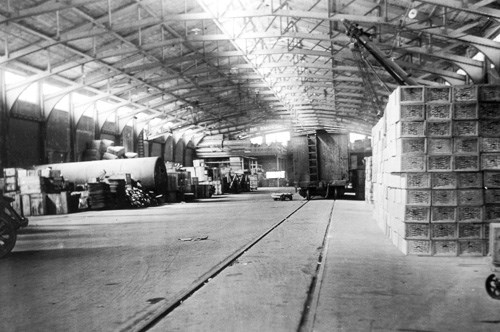

large warehouse facility filled with crates and a freight car

The Port of Embarkation warehouses were so large that they could accommodate a freight car. The contents of the warehouses were varied and the turnover of items moved very quickly. This warehouse contained stacks of crated coffee on the right and raw building materials on the left. (photo circa 1920s)



Rehabilitation of Pier Shed 2

In 2014, the National Park Service’s rehabilitation plans for Pier Shed 2 included structural upgrades and improvements to reduce the building’s energy consumption. Plans for new radiant head flooring required that contractors removed multiple layers of the building’s interior ground asphalt. Although there was a chance that the army had already removed the historic tracks, the park architects were hoping to find their remnants. Luckily, the architects found the historic tracks in the 2nd, deeper layer of asphalt.

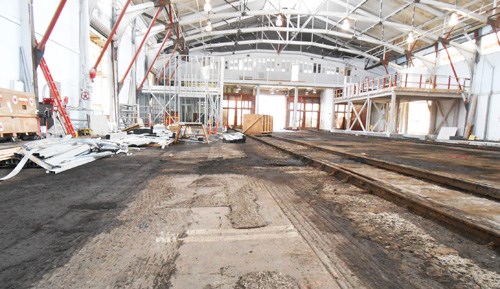

interior of Pier Shed 2 showing historic railroad tracks now unearthed from asphalt

Pier Shed 2 during the building's rehabilitation, showing the now-exposed historic railroad tracks.



Preservation Treatment

Because the Pier Shed 2 contributes to the San Francisco Port of Embarkation National Historic Landmark status, the National Park Service will treat the railroad tracks as a significant historic feature. They will document the tracks by photographing them and identifying their location on an architectural drawing. There is also a proposal to install a plexiglass floor window so that visitors can see the historic railroad tracks in the flooring. In order to protect the historic railroad tracks in the future, the park contractors will cover the tracks with new concrete, identifying the location of the once-again hidden historic tracks by using a slightly different concrete color.

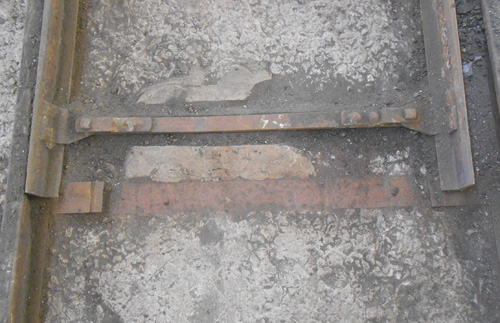

close-up detail of steel tracks inbedded in concrete

A close-up detail of a manual switch track brace that is located in the floor of Pier Shed 2.
