Chesapeake & Ohio Canal National Historical Park
Building The Canal
|
|
|
|
|
|
 |
|
| NPS Photo |

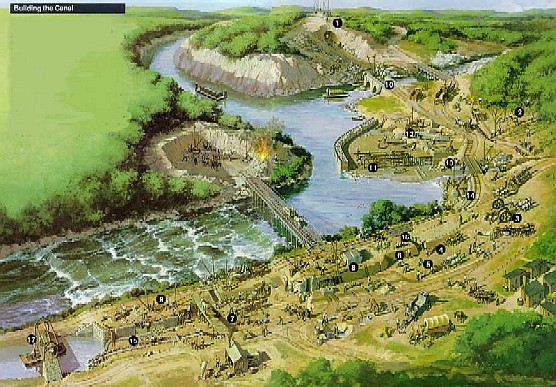

| Building the canal took about 22 years. |
|
The canal was built mainly with hand tools and horse power. Construction did not simply begin at one end and progress steadily to the other end, leaving a finished canal in its wake. Instead, the job was let to dozens of contractors in 1/2 mile sections, and, for the most part, they worked simultaneously. Their activities would not have been performed concurrently or so close together, but they are shown together here to make portraying this work easier.
NPS Photo
In the distance the tunnel is being dug, blasting was often necessary to clear a path for the canal.
NPS Photo
Trees were frequently obstructing canal construction and had to be removed.
NPS Photo
After trees were cut or broken, stumps were pulled out with huge, horse-powered winches.
NPS Photo
Root-cutting plows (4) scraped the surface in preparation for digging (5), berm-building (6), and puddling with waterproof clay.
NPS Photo
Puddling with waterproof clay was another process that was accomplished to construct the canal.
NPS Photo
Cut stone was shipped to the site where workers would build many different structures.
NPS Photo
Pre-built lock gates were shipped to the site so workers did not have to construct them on site.
NPS Photo
Workers constructed 11 aqueducts along the canal.
NPS Photo
Other structures that were completed were feeder dams (11), guard locks (12), culverts (13), retaining walls(14)...
NPS Photo
...lift locks...
NPS Photo
...waste weirs...
NPS Photo
...stop locks.
Questions for Canal Construction
1. If the canal were being constructed today, what machines would have been helpful? On which jobs would they have been used?
2. Engineers designed the canal to give lockkeepers as much control over the river as they could. What do you think each of the following elements did, given their names and locations?
a) feeder dams (11)?
b) guard locks (12)?
c) waste weirs (16)?
d) stop locks (17)?
|
|
|
|
|
|
|
|
 |
|
Did You Know?
Canal historians estimate approximately 35,000 laborers helped dig the canal as well as build aqueducts, culverts, locks, lock houses, etc. It took 22 years to build the canal from Georgetown, DC to Cumberland, MD. Much of the workforce were immigrants from Ireland and western Europe.
|
|
|
|
